SNTRV7 Automatic Stick Rice Noodle Production Line/Jiangxi Rice Vermicelli Making Machine
Introduction
SNT Machinery specializes in extruding noodles production lines more than 20 years with good reputation and service.Our production lines are founded almost in every province in China. We also export the rice noodle extruder machines to U.S., South Korea, North Korea, India, Sri Lanka,Mauritius, etc.
This stick rice noodle production line is one industrial plant. The whole process is fully automatic from flour mixing, rice flour feeding, first extruding, second extruding, rice vermicelli forming, first aging, steaming, second aging, loosing,drying,cooling to cutting. Each step is strictly controlled to guarteen the rice vermicelli quality.
Stick rice Noodle/Jiangxi Rice Vermicelli
Industrial Stick Rice Noodle Production Line
Spec.:stick rice noodle production line SNTRV7
Model |
SNTRV7 |
Daily output |
7 tons/24hrs |
Hourly output |
290kg/hr |
Dimension |
85m*6m*3.5m |
Compressed air |
1 m3/min |
Steam |
700kg/h |
Water consumption |
4 tons for flour mixing |
Power |
140kw |
Operators |
5 persons |
Main device: stick rice noodle production line

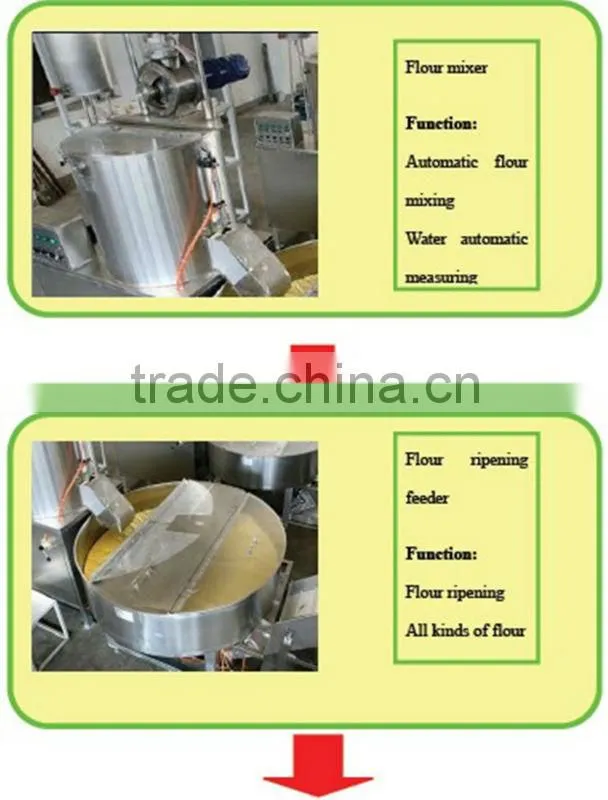

1, Rice flour mixer
2, Flour ripening feeder

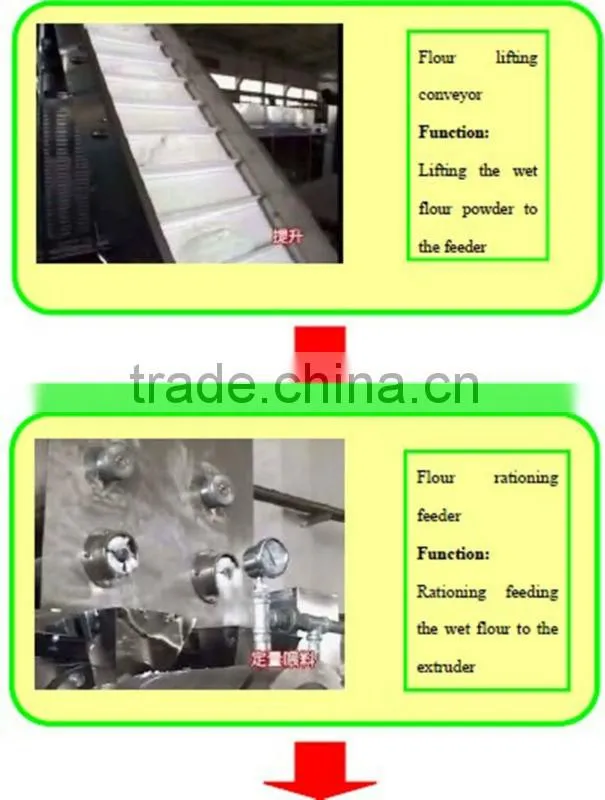

3, Flour lifting conveyor
4, Flour rationing feeder

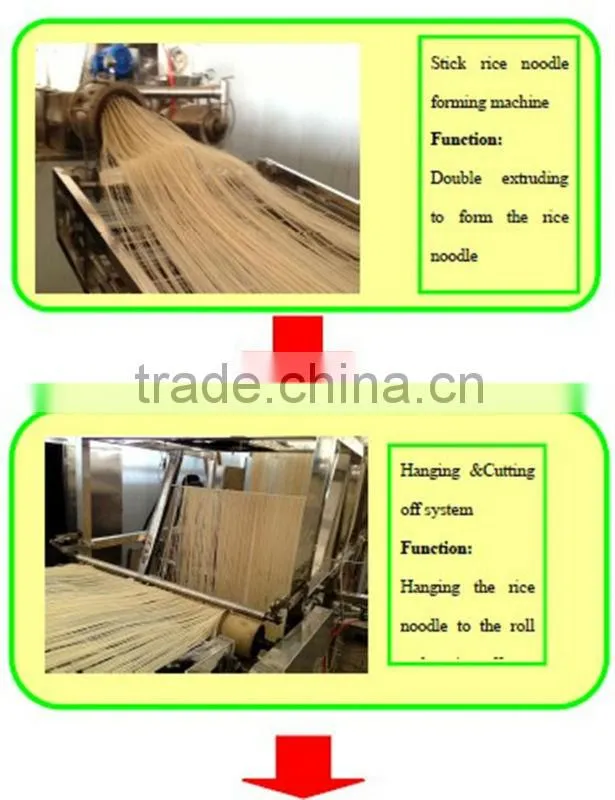

5, Stick Rice Noodle Making machine/Rice Noodle Extruder Machine
6, Hanging & cutting system

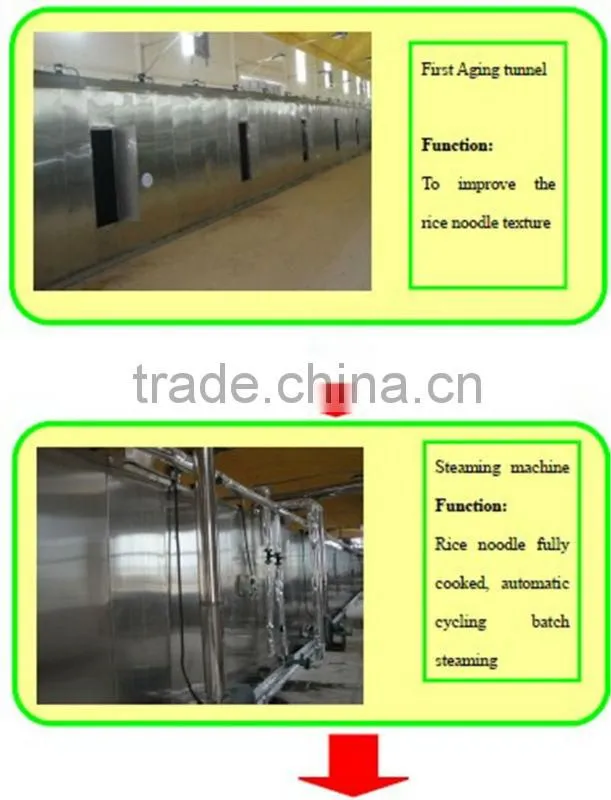

7, Rice Noodle First aging machine
8, Rice Noodle Steaming machine

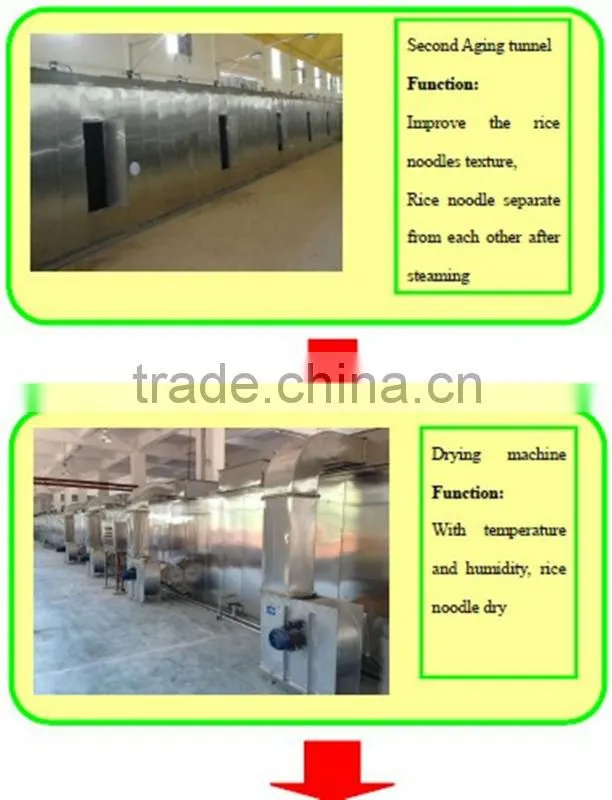

9, Rice Noodle Second aging machine
10,Rice Noodle loosing machine
11, Rice Noodle Drying machine
12, Rice Noodle Cooling machine
13, Rice Noodle Cutting machine
Main Features : stick rice noodle production line
|
1 Automatic production process The whole production line is highly controlled automatically from flour feeding to the final products, less manual operation. The operators only need to observe, monitor and adjust , which saves a lot of labors and low down cost of production. |
|
2 Continuous aging process The aging tunnel is adopted with the humidifiers controlled design, which improve the aging effect and shorten the aging time. |
|
3 Continuous batch- type steaming tunnel The close environment of steaming tunnel enhance the effect of steaming. Smart design to make the batch steaming process continuous without any break. Save labor and safe operation . |
|
4 Automatic rice noodle loosing device The automatic loosing machine is equipped with the line, saving the labor resource. |
|
5 Excellent drying effect Humidity and temperature is strictly controlled in each section. |
|
6 Multi- purpose machine Process various of flours beside rice flour, such as wheat,semolina, corn,buckwheat , oats, barely, millet and kinds of starch etc. |
Service System
1,supply solutions for the buyers’ special demands |
2,design plant layout and help complete the installation |
3,provide technical support both at setup and maintain |
4,train the operators |
Models: stick rice noodle production line
Model |
Daily output (ton) |
Dimension (LxWxH)m |
Compressed air (m3/min) |
Steam Kg/h |
Power Kw |
Operator |
RV7 |
7 |
85x 6 x3.5 |
1 |
700 |
140 |
5 |
RV15 |
15 |
126x6.5x3.2 |
1.6 |
1200 |
235 |
7 |

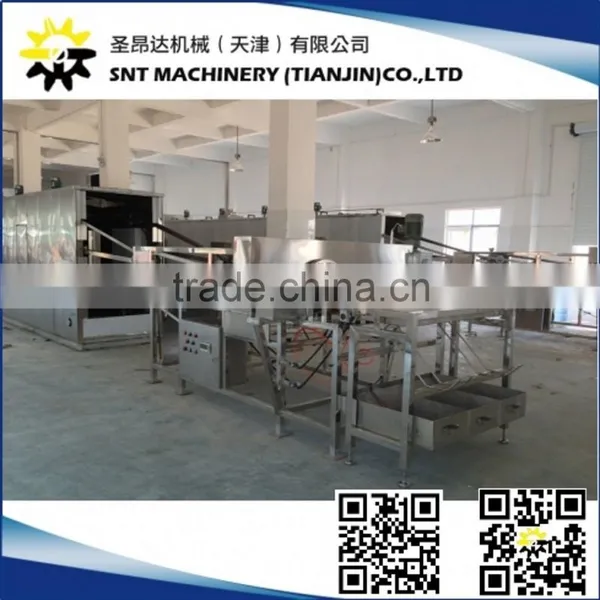

The automatic Stick Rice Noodle Production Line
