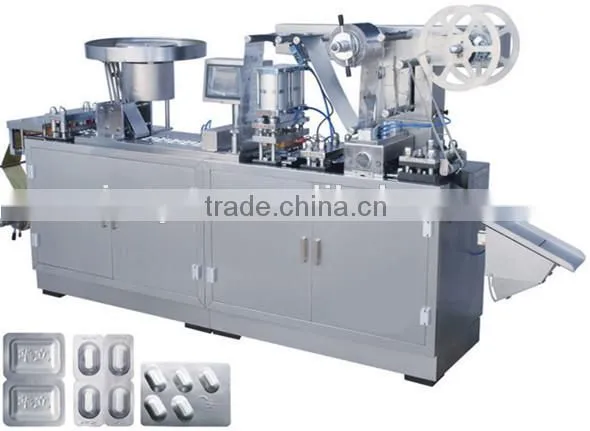

Flat Type Aluminum Blister Packer (Alu-Alu Packing Mackine)
Applications:
The product uses the composite Aluminum film as material which has best performance of eal,proofing moisture and light,and uses special mould to cool-form.It is renewed packing equipment in pharmaceutical industry.The machine has two functions.When it changes mould,the machine can pack the object not only with Aluminum-Aluminum,but also with Aluminum-Plastic..
Main technical data:
Model |
320E |
250E |
160E |
|
Blanking frequency(times/min) |
5-30 |
5-30 |
5-30 |
|
Sheet's quantity of one blanking(sheets) |
5-6 |
3-4 |
1-2 |
|
Adjustable scope of feed travel(mm) |
1800-10800 |
1200-7200 |
600-3600 |
|
Appropriate for Capsule |
10-150 |
10-140 |
10-130 |
|
Max Forming area and depth(mm) |
320×130×13 |
250×120×13 |
140×110×13 |
|
Capacity of air compressor((m3/min) ) |
≥0.45 |
≥0.38 |
≥0.36 |
|
Power supply |
380V 50HZ 9KW |
380V 50Hz 6KW |
380V 50Hz 4KW |
|
Wrapper specification(mm) |
Composite Aluminum film |
320×(0.11-0.15) |
250×(0.11-0.15) |
140×(0.11-0.15) |
Aluminum foil |
320×(0.11-0.15) |
250×(0.02-0.035) |
140×(0.02-0.035) |
|
Overall dimensions(mm) |
3800×718×1750 |
3200×650×1450 |
2850×530×1450 |
|
Part size(mm) |
|
2000×718×1750 |
1750×650×1450 |
1450×550×1300 |
|
1800×718×1750 |
1450×650×1450 |
1400×550×1300 |
|
Weight(Kg) |
|
2000 |
1700 |
1000 |
Sample
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
