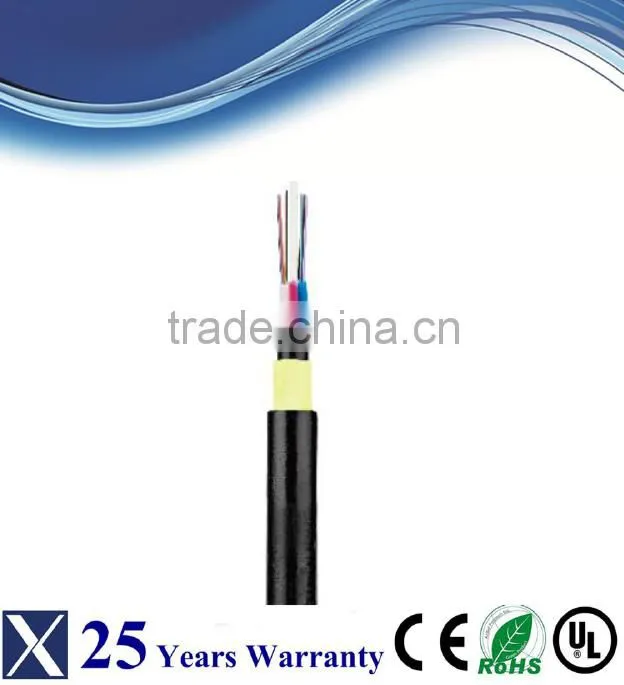

Part 1. Product Show
Part2. Description Details
ADSS cable is loose tube stranded.Fibers, 250m,are positioned into a loose tube made of high modulus plastics.
The tubes are Lled with a water-resistant Iling compound.The tubes (and Ilers) are stranded around a FRP(Fiber Reinforced Plastic)
as a non-metallic central strength member into a compact and circular cable core. After the cable core is Iled with Iling compound,
it is covered with thin PE (polyethylene) inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength
member, the cable is completed with PE or AT(anti-tracking) outer sheath.
2.1. Cable structure
2.2. Optical Characteristics
2.3. Technical Parmmeters
Part 3 feature of Product
A.Fiber procured from CORNING,FUJIKURA,YOFC.
B.Can be installed without shutting off the power
C.Excellent AT performance. The maximum inductive atthe operating point of AT sheath can reach 25kV
D.Light weight and small diameter reducing the load caused byice and wind and the load on towers and backprops.
E.Large span lengths and the largest span is over 1000m
F.Good performance of tensile strength and temperature
G.The design life span is over 25 years
Part4 Certificate
Part 5 List of Suppliers of Raw Materials
All of fiber raw materials from famous suppliers in the world
Part6 Engineering Case
6.1 Case in Brazil
6.2 Case in India
6.3 Case in Russia
Part7 About XH Brand and Us
7.1. XH brand was founded in 1998.
7.2. XH total sales of more than 2.5M kilometers branded products, sales of more than 65 countries.
7.3. Order defect rate of less than 0.03% (100% defect orders get paid)
7.4. All expect a response within 24 hours, even in the non-working days.
7.5. We are committed to long-term cooperation with customers,
7.6. We believe that customer profitability is the most important thing.
7.7 We do not just provide products, we are more willing to help customers create a sustainable profit model.
Part8 Factory
8.1 Product Warehouse
8.2 Indoor cable Workshop
8.3 Outdoor cable Workshop
8.4 Loose tube Workshop
8.5 Packaging & Shipping
Fiber Optic Cable ALL DIELECTRIC SELF-SUPPORTING AERIAL CABLE
