Home > Metallurgy, Mineral & Energy > Non-ferrous Metal & Products > Titanium > Titanium Bar Titanium Alloy Bar Titanium Round Bar China Factory

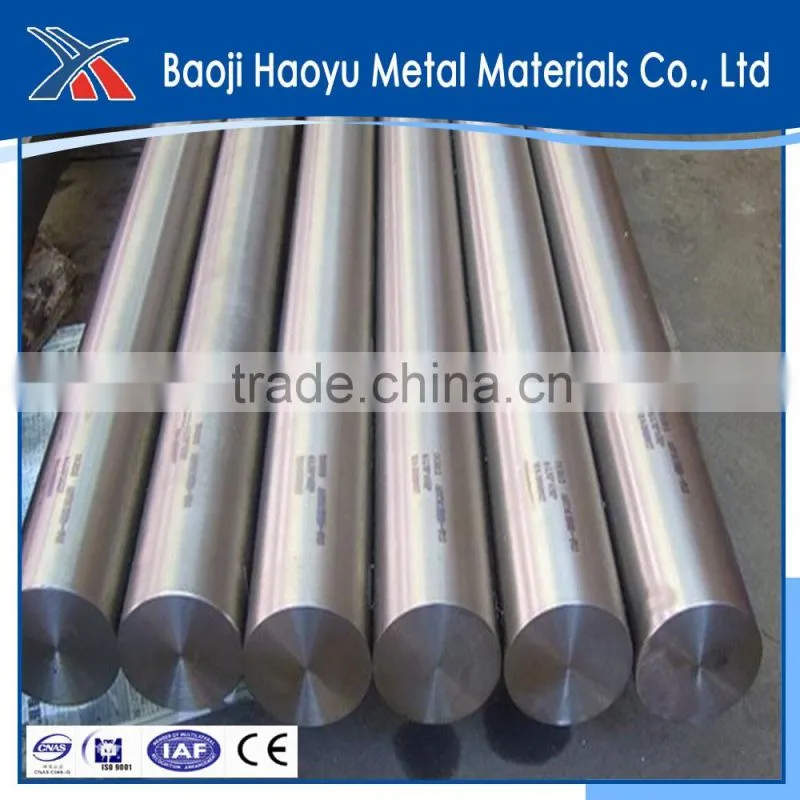

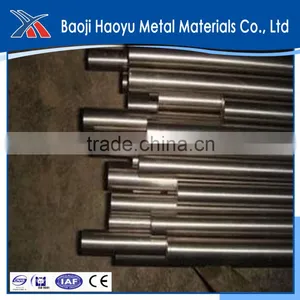

Titanium Bar Titanium Alloy Bar Titanium Round Bar China Factory

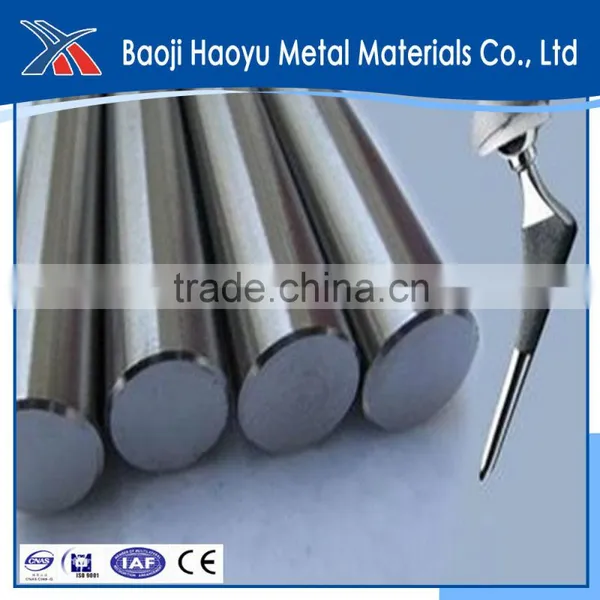

Titanium Bar Titanium Alloy Bar Titanium Round Bar China Factory photo-1

Titanium Bar Titanium Alloy Bar Titanium Round Bar China Factory photo-2

US$ 15 - 25 MOQ: 5 Kilograms

Key Specifications

Get Latest Price

Place of Origin:

Shanxi, China

Brand Name:

Model Number:

ASTM

Contact Supplier Request Quote Chat Now

Baoji Haoyu Metal Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanxi, China

Brand Name HY

Model Number ASTM

Application Medical

Diameter 6.0~400mm

Shape Round

Length 50-6000mm

Technique Forged

Grade Gr5

Weight Actual Weight

Best price titanium bars medical grade

Specifications

Titanium bars medical grade

Standard:GB/T 13810-2007,ASTM F67,ASTM F136

Grade: GR5

Specification:Rolled: Dia: 6.0---40mm× L; Forged: Dia:40---150mm×L (L≤6000mm)

Surface: Black; Polishing

product introduction

Item Name	grade 12 titanium tube
Material	Gr1, Gr2, Gr7,Gr9, Gr12
Standard	ASTM B337, ASTM B338, ASTM B861, ASTM B862
Specification	OD5.0-114.0mm x WT0.5-7.0mm x 1000-12000mm OD55mm-914mm x WT1.0-10.0mm x 1000-6000mm Or according customer’s requirement.
Payment	T/T, L/C ,Paypal, as your inquiry
Technique	Rolled
Condition	Annealed(M)
Application	a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear) b) Fluid, gas and oil transport c) Pressure and heat transmission d) Construction and ornament e) Boiler heat exchangers f) motorbycle and bike
Certificate	ISO9001:2008, TUV, EN10204.3.1

Mechanical Properties(>%)
Grade	Tensile Strength(min)		Yeild Strength(0.2% offset))				Elongation(%)
	ksi	MPa	Min		Max
	ksi	MPa	Ksi	Mpa	Ksi	Mpa
1	35	240	25	170	45	310	24
2	50	345	40	275	65	450	20
7	50	345	40	275	65	450	20
9	90	620	70	483	-	-	15C
12	70	483	50	345	-	-	18C

product detail show

production technology

Product performance

1. Low Density and High Strength

2. Excellent Corrosion Resistance

3. Good resistance to effect of heat

4. Excellent Bearing to cryogenic property

5. Nonmagnetic and Non-toxic

6. Good thermal properties

7. Low Modulus of Elasticity

Application

1) Chemical industry

2) Petrochemical industry

3) Machining field, Automobile field, etc.

4) Desalination of sea water

5) Textile printing and dyeing

6) Mobile phone component field.

Product Detection

Ensuring our customers get the satisfying products, strict test is necessary.

Firstly: Visual inspection to check surface quality, ensuring without flaw, black dot and any other defects.

Secondly: Ultrasonic Flaw Detection making sure there are no defects inside.

Thirdly: Chemical Composition Detection making sure all chemical component can satisfy customer's demands

Fourthly: Mechanical Features testing making sure all titanium bars have satisfying mechanical features before delivery.

Trade terms

Type of Payment: T/T, Paypal, Escrow, Western Union, Money Gram, L/C, etc.

Payment Terms: If total amount is less than 3000USD, we suggest 100% prepaid. Normally 30% prepaid.

All can be talked openly by our two sides.

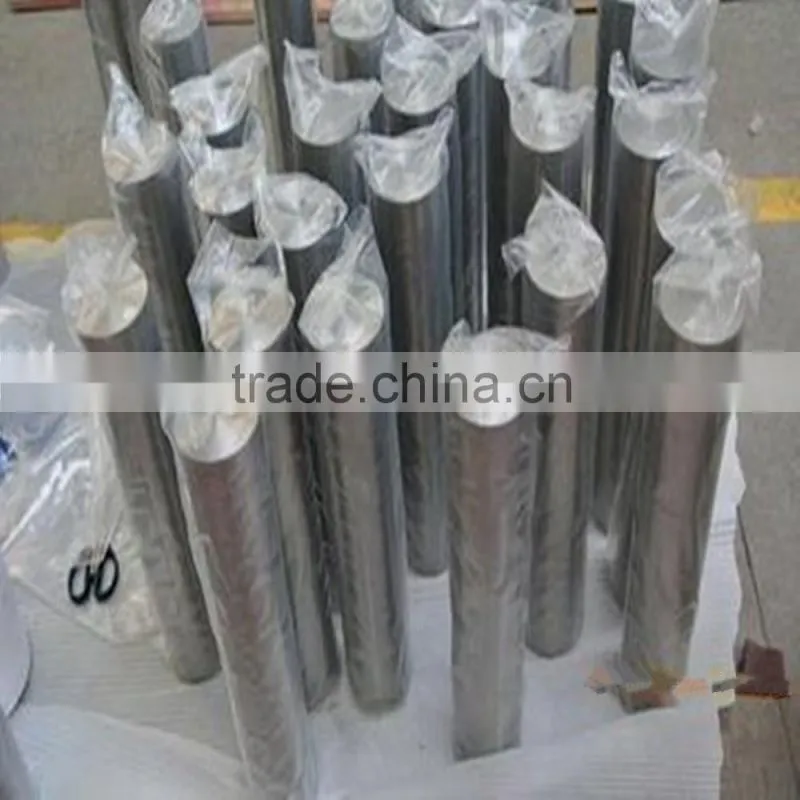

Packing and shipping

Package: Plastic bags and form paper as inside, Wooden case as outside.

Shipping Terms: We offer air shipping (Like DHL, UPS, FedEx, TNT or plain air shipping) and shipping by sea. All will be decided by your quantity. Shipping cost and shipping speed are the primary thing when we considering shipping.

Contact us

Our company believes quality is the life of enterprise, and integrity creates the future!
