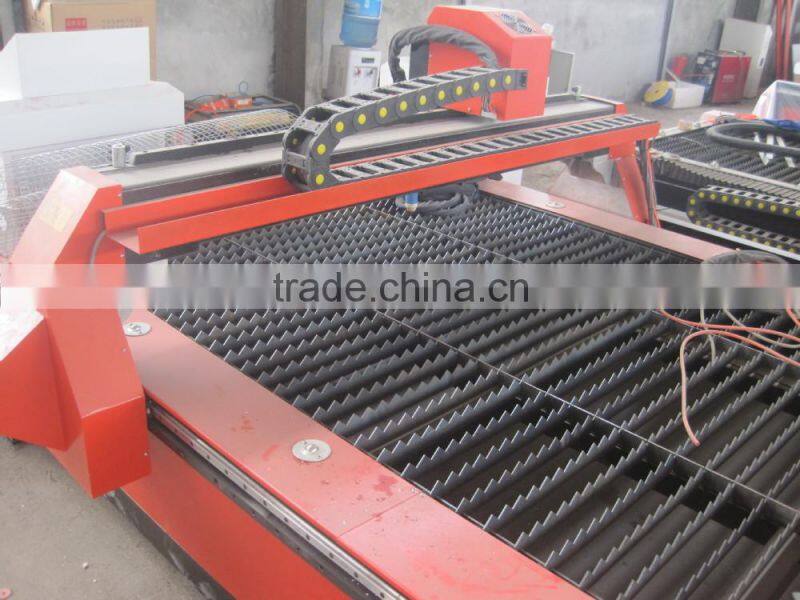

CM-1325 Good Price CNC Plasma Machine

Licheng Chaomeng CNC Router Sales Department

US$ 6,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name CM

Model Number CM-1325

Voltage AC380V/50Hz,Three Phase

Rated Power 15KW

Dimension(L*W*H) 2.9X1.7X1.5m

Weight 1300KGS

Certification CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

CM-1325 Good Price CNC Plasma Machine

Standard Features:

1 .The machine is all welded as seamless steel structure. Steady structure and long life time

2. High configuration, high cutting speed and precision.

3., Auto ARC starting. Steady performance.

4, Control system: DSP handset control, with USB interface

5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.

6. File format: G-code

7, Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.

Applicable Materials: Steel, stainless steel, aluminium,copper and all other metals.

Teanical Specifications:

Model	CM-1325
Working Area	1300X2500X100mm

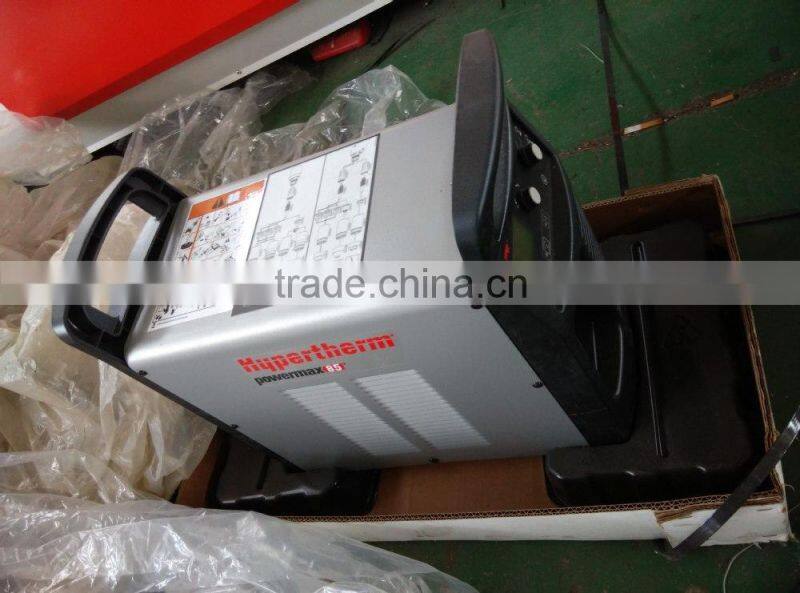

Power Source	85A(USA Hypertherm Brand)(Optional)

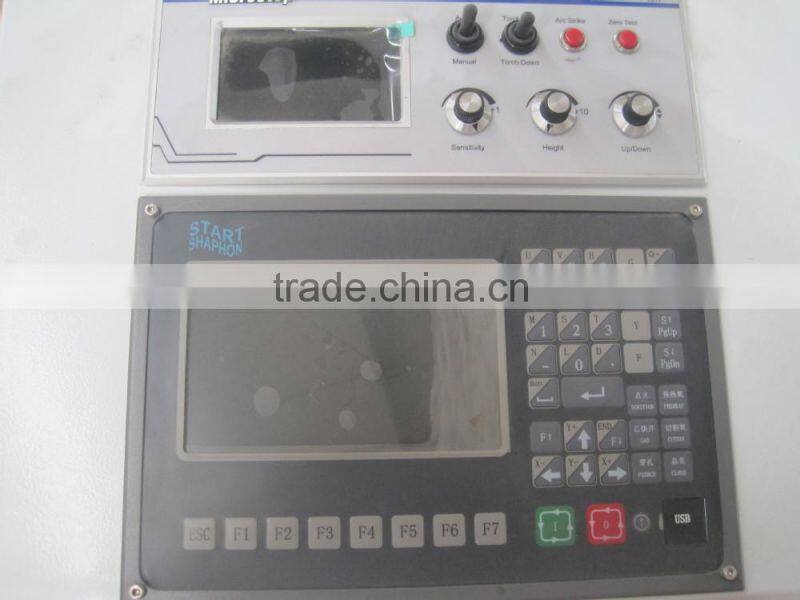

Control System	Start
Precision	0.07mm
Positioning Accuracy	0.02mm
Repeatibility	0.02mm
Idling Speed	50m/min
Working Speed	9m/min
X,Y Axes Transmission	Helical Rack And Pinion
Z Axes Transmission	Taiwan TBI Ballscrew
Guide Rails	Taiwan Hiwin Linear Square Guide Rails
Max Cutting Thickness	16mm Steel
Driving Motor	Sub-division Stepper Motors
Driver	Yako2811
Command Code	G Code
File Transfer	USB Interface
Compatiable Software	Any software which can generate G code

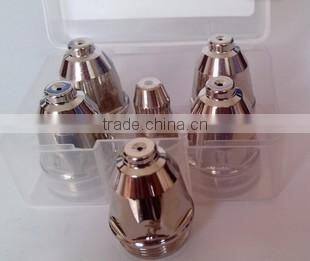

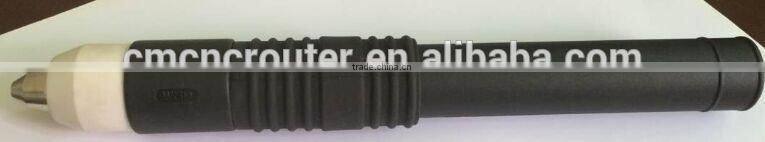

Optional Parts	Other power source such as 45A,65A and 105A, 200A,etc.China power Source are cheaper. Cutting Torch,Protection Cover
Voltage	AC380V/50Hz,Three Phase
Net Weight	1300KGS
