Parameters of COB IP44 CE ROHS LED Down Light :
| Model No.: | RG-COBDS-001 |
| Power: | 5W |
| Lumen: | 390 lm |
| Input Volatge: | AC90V-265V(50/60Hz) |
| Output Voltage: | DC24V-36V |
| Output Current: | 300mA±5% |
| Material: | PC+Aluminum Alloy |
| LED Type: | COB Lighting |
| Shape Size: | ø90*H50 |
| Cutout Size: | ø80 |
Performance of COB IP44 CE ROHS LED Down Light:
- 1.Min.Ambient Temp( °F): -30 ℃
- 2.Max. Ambient Temp( °F): 70 ℃
- 3.Power Factor(PF): ≥0.97
- 4.Color Temp.:3000K-6000K
- 5.Conversion Efficiency: ≥86%
- 6.Protcet Class(IP Rating): IP44
- 7. SDCM Range: <7.5
Longevity of COB IP44 CE ROHS LED Down Light:
- Life Hours: ≥ 5000 hours
- Warranty: 2 Years
COB IP44 CE ROHS LED Down Light Features:
- 1.Aluminum body
- 2.low heat,low thermal resistance,steady lighting,high brightness and CRI
- 3.Driver approved CE,RoHS certification.High efficiency ,long life-span
- 4.exclusive design,simple installation
- 5.No risk of mercury emission.
- 6.Vibration resistant Easy to transport and install.
- 7.Body with excellent thermal managing design.led down lights
- 8.Energy saving, less 80% energy then normal lightings;
- 9. Long operating life with 50000 hours averagely.
- 10.Low Lumen descending;
- 11.Certification:CE, RoHS
- 12. Cautions: Non-waterproof, do not soak and get wet. Must to be used under the designated voltage.
- 13.Guarantee: Two years.
Our outstanding advantages of Downlight
Present
-Ultra-thin round down lights series,minimalist design,perfect process,a plurality of hole size slelection,fashion decoration preferr/
-High quality imported PMMA mask,even light,super bright,show really simulate the white light,color rendering index as high as 80%.
Radiator:
The integration of aviation aluminum radiator ,perfect solve the problem of heat dissipation.Prolong the service life of the LED
Driver:
High power constant current power supply,ensure safety,stability,high efficiency,energy saving,lamp bead is not affected by voltage fluctuation.

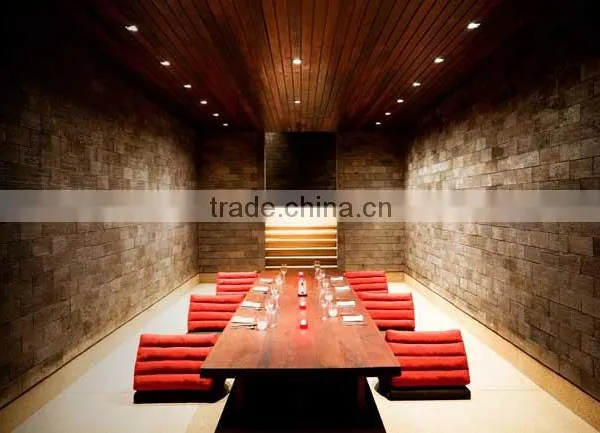

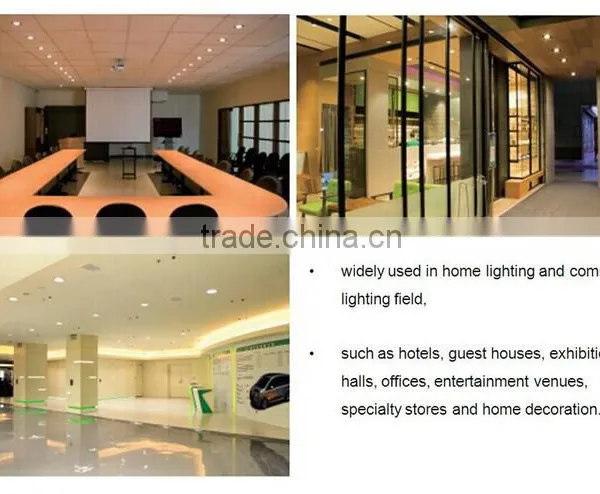

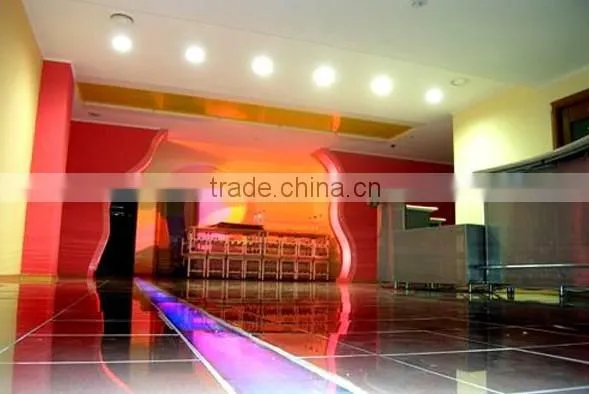

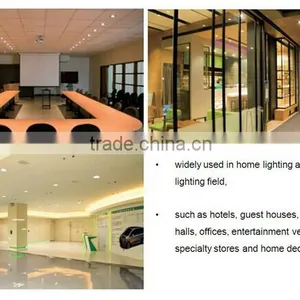

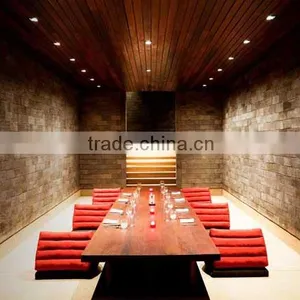

Widely Installation Case:
Led downlight Application:
1. Recessed lighting , shelf lighting, ceiling/wall cover
2. Cabinet and under counter lighting, office ect.
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands, and panels
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The wire must be passed 3C certification of three core cable, To reduce the risk of fire hazard.
3. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
4. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.
Acutions: All of this install instruction is for conference, please install the down light in professional instruction.
What is the CRI? And how can CRI effect our daily life light using?
A color rendering index (CRI) is a quantitative measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with an ideal or natural light source. Light sources with a high CRI are desirable in color-critical applications such as neonatal care, photography and cinematography.[1] It is defined by the International Commission on Illumination (CIE) as follows:[2]
Color rendering: Effect of an illuminant on the color appearance of objects by conscious or subconscious comparison with their color appearance under a reference illuminant
With strong carton packing,and also customized.
Packing size: 130*110*85 mm
We offer various shipping way for your conference,like UPS/COD/EMS/Fedex etc,.
5-10 days will be sent to the destination
Q.Where is your factory located? How can I visit there?
Our factory is located in Jiangmen City, Guangdong Province, China, about 0.5 hour train from Guangzhou . All our clients, from home or abroad, are warmly welcome to visit us!
Q: Are you a manufacturer or trader?
We're professional manufacturer of SMD LED lights. And we're Assessed Supplier, you can see the report in our web Provided by Certification.
Q.I want high quality LED panel light, can you do?
Yes, we will provide famous brand high quality LED chips and drivers.
Q: What product line you have?
LED Downlight,panel light,strip light,rope light,neon rope light,flood light,integrated panel light and emergency light we have.
