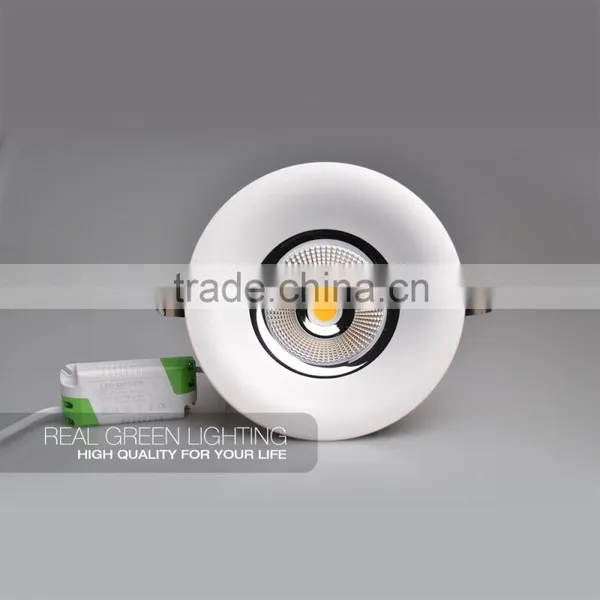

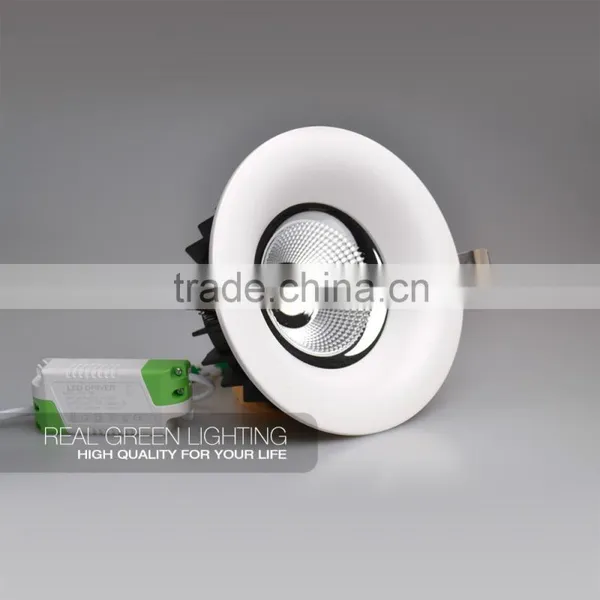

The LED Downlight series products is formed by lower power LEDs and Aluminum Alloy,the shell design has combined the LED luminous angle.
To acheive reflection and high heat dissipation transmittance,we quality bonding LED chips and lamp base.
It has the advantages if energy-saving,environment conservative,long serice life,suitable for office,meeting room etc,.
Parameters of COB IP44 CE ROHS LED Down Light :
Product Parameters:
BASIC PARAMETERS | |||
Brand Name: |
Real Green |
Item No.: |
RG-COBAA005 |
Power |
5W |
LED Type: |
COB Lighting |
Emitting Color: |
Warm White / Cool White |
Material: |
Aluminum Alloy |
Shape Size: |
ø100*H60mm |
Beam Angel(°): |
120° |
Cutout: |
ø80mm |
IP Rating: |
IP44 |
Lumen : |
430 LM |
Lifespan: |
50,000 Hr |
SDCM Range: |
<7.5 |
Color Temp.: |
3000K-6500K |
ELECTRICAL PARAMETERS | |||
Input Voltage(V): |
AC100V-265V |
Working Temperature(℃): |
-30 ℃- 70 ℃ |
Power Factor(PF): |
≥0.97 |
Driver: |
Constant Current |
Color Rendering Index(CRI): |
>85 |
|
|
PACKING PARAMETERS | |||
Packing Size(Carton): |
100*100*70mm |
Packing Details: |
Cartion box with plastic bag |
Performance of COB IP44 CE ROHS LED Down Light:
- 1.Min.Ambient Temp( °F): -30 ℃
- 2.Max. Ambient Temp( °F): 70 ℃
- 3.Power Factor(PF): ≥0.97
- 4.Color Temp.:3000K-6000K
- 5.Conversion Efficiency: ≥86%
- 6.Protcet Class(IP Rating): IP44
- 7. SDCM Range: <7.5
Longevity of COB IP44 CE ROHS LED Down Light:
- Life Hours: ≥ 5000 hours
- Warranty: 2 Years
COB IP44 CE ROHS LED Down Light Features:
- 1.Aluminum body
- 2.low heat,low thermal resistance,steady lighting,high brightness and CRI
- 3.Driver approved CE,RoHS certification.High efficiency ,long life-span
- 4.exclusive design,simple installation
- 5.No risk of mercury emission.
- 6.Vibration resistant Easy to transport and install.
- 7.Body with excellent thermal managing design.led down lights
- 8.Energy saving, less 80% energy then normal lightings;
- 9. Long operating life with 50000 hours averagely.
- 10.Low Lumen descending;
- 11.Certification:CE, RoHS
- 12. Cautions: Non-waterproof, do not soak and get wet. Must to be used under the designated voltage.
- 13.Guarantee: Two years.
Our outstanding advantages of Downlight
Present
-Ultra-thin round down lights series,minimalist design,perfect process,a plurality of hole size slelection,fashion decoration preferr/
-High quality imported PMMA mask,even light,super bright,show really simulate the white light,color rendering index as high as 80%.
Radiator:
The integration of aviation aluminum radiator ,perfect solve the problem of heat dissipation.Prolong the service life of the LED
Driver:
High power constant current power supply,ensure safety,stability,high efficiency,energy saving,lamp bead is not affected by voltage fluctuation.
Widely Installation Case:
Led downlight Application:
1. Recessed lighting , shelf lighting, ceiling/wall cover
2. Cabinet and under counter lighting, office ect.
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands, and panels
With strong carton packing,and also customized.
Packing size: 130*110*85 mm
We offer various shipping way for your conference,like UPS/COD/EMS/Fedex etc,.
5-10 days will be sent to the destination
Q.Where is your factory located? How can I visit there?
Our factory is located in Jiangmen City, Guangdong Province, China, about 0.5 hour train from Guangzhou . All our clients, from home or abroad, are warmly welcome to visit us!
Q: Are you a manufacturer or trader?
We're professional manufacturer of SMD LED lights. And we're Assessed Supplier, you can see the report in our web Provided by Certification.
Q.I want high quality LED panel light, can you do?
Yes, we will provide famous brand high quality LED chips and drivers.
Q: Is the sample available?
Yes, we are very glad to make the samples for your test.
