Help CenterSanan Chips Quality LED Down Light 15w SMD5730 3000K-6500K 100V-265V 1110 LM Using For Indoor Outdoor
Related Products
-
COB 5w COB Down Light IP44 CE ROHS LED Down Light 430LM Down LightUS$ 8.74 - 8.74MOQ: 20 Units -
Orange Color Unique Design 85V-265V LED Down Light Spot Light 20W With Material PC and Aluminum Alloy Down LightUS$ 11.78 - 11.78MOQ: 20 Units
-
Downlight LED Downlight Sanan Chips Quality Alumiumn Alloy LED Down Light 15w SMD5730 3000K-6500K 100V-265V 1110 LMNegotiableMOQ: 20 Pieces
-
3.5 Inch New Design LED Downlight 5W Cool White Downlight 100V-265V Aluminum Alloy Lamp Body Quality DownlightUS$ 8.74 - 8.74MOQ: 20 Units
-
25W Input Voltage 85V-265V Led Downlight 8 Inch Downlight 25W Cool White 3000K-6500K Aluminum Alloy Lamp Body Quality Down LightUS$ 12.92 - 12.92MOQ: 20 Units
Product Parameters:
Name: |
LED DOWN LIGHT |
Material: |
Aluninum Alloy |
| No. | SD-TD3002-15 |
Watt: |
15W |
Chip: |
Chip COB |
Voltage: |
100V-265V |
Lumen: |
1110 LM/W |

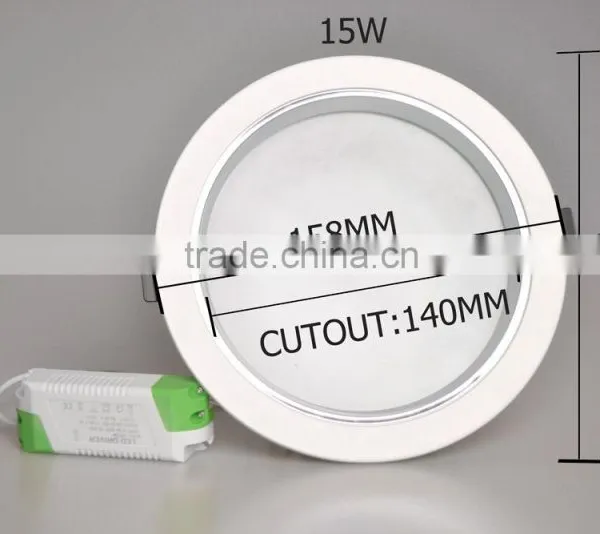

Cutout size: |
Ø140 mm |
Key Specification of LED Down Light 3000K-6500K 100V-265V :
1.Beautiful and durable by using imported materials
2.Practical,easy to install
3.High luminous efficiency,soft light
4.Efficient and energy saving ,long lifespan.
Features of LED Down Light 3000K-6500K 100V-265V:
1. Using SMD5730 or as customer's request.
2. Using Isolated driver - more safe

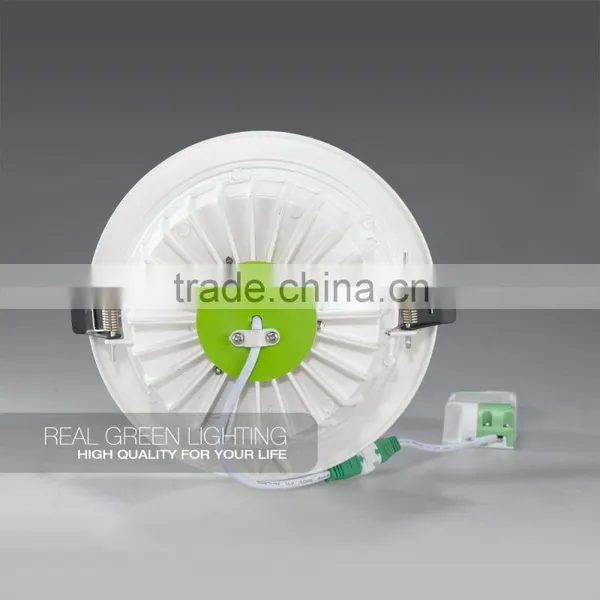

3. Using good heat dissipation heat sink, extending life of LEDS.
4. lower light attenuation to 13%-14% in 2 year
5.led source,led downlight save more than 80% compare to incandescent lamp, save more than 60% compared to fluorescent light
nstant current, low power consumption, electro optic power near 100%

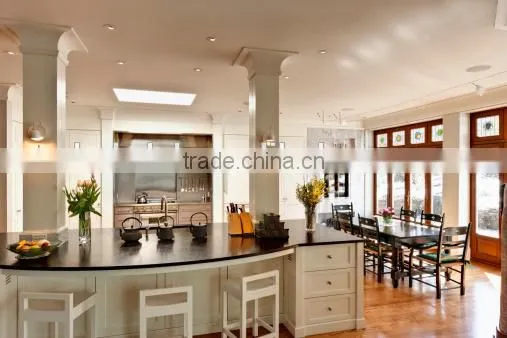

Installation Case:
Led downlight Application:
1. Recessed lighting , shelf lighting, ceiling/wall cover
2. Cabinet and under counter lighting, office ect.
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands, and panels
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The wire must be passed 3C certification of three core cable, To reduce the risk of fire hazard.
3. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
4. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.
Acutions: All of this install instruction is for conference, please install the down light in professional instruction.
Electrial and Photmetric Test Report For Light Source (5w cool white)
Test Condition:
Analysis Instrument: STARSPEC SSP33112-D
Test Lab:Test Lab
Temprature: 25.0 ℃
R.H: 60.0%
TESTING RESULT
|
Photometric Parameters Luminous Flex: 1243.91lm Luminous Efficiency: 79.23lm/W |
Colorimetric Parameters Chromaticity Coordinates: X=0.3204 Y=0.3297 Color Temp.:6095 Dominant Wavelength: 488.08nm Color Tolerance: 10.69 SDCM |
|
Electrical Paraments Voltage : 219.50 V Wattage: 15.70 W |
Electrical Paraments CURRENT:0.156A Power Factor: 0.427 |
With strong carton packing,and also customized.
Packing size: 165*80*165 mm
We offer various shipping way for your conference,like UPS/COD/EMS/Fedex etc,.
5-10 days will be sent to the destination
Why Choose us! We are your best LED lighting vendor!
- 1.Higher lumen Chips,Power supplier,Customize your product,So easy!
- 2.Fast responce to your inquiry and feedback!
- 3.Good quality material makes good quality led down light
- 4.Strict quality controller system and testing led panel light before shipment
- 5.Free!!For all of cost of replacing our panel light and parts.
- 6.Different controller system by your choice,dimmable/RF controller ready!
- 5. Free to contact us whatever you have any question in LED lighting or professional techonology solution!
- You can sns platform or directly through major inquiry and send e-mail to consult us.
Q: Where is your factory located in?
Yes, our factory located in Guangdong Province, China.Welcome to visit our factory!
Q. Can you show your ceretification?
Yes, our products have passed CE&ROHS etc.
Q:What is CRI?
CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For LED down light, the CRI is higher than 80. For the outdoor light, the CRI higher than 70 is OK at most of applications.
Q:How to controll your quality?
Each products will do 48 hours Aging Test before shipment.
Q: How many shipping charger about the samples?
It depends on your samples.
