Laser Cutting Machine for Stamp Engraving Guangzhou for Any Nonmetal Material ,sharp Cutting and Deep Cutting
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Product in Guangzhou China Manufacture Chinese Cheap Wood Working Cnc RouterNegotiableMOQ: 1 Unit -
2015 New Model Manual Foil Heat Press Foil MachineNegotiableMOQ: 1 Unit
-
Manufacture Automatic Machine Guangzhou Canvas Heat Transfer Machine FactoryNegotiableMOQ: 1 Unit
-
CE Approved CO2 20mm Acrylic CW5000 Water Cooling Superior Laser Cutting Machine 150WNegotiableMOQ: 1 Unit
-
Degital Printable Heat Transfer Tshirt VinylNegotiableMOQ: 1 Unit
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness
8-15mm
Cutting Area
120*90cm
Cutting Speed
0-6400cm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
coredraw and lasercut5.3
Graphic Format Supported
AI, PLT, DXF, BMP, DWG
Place of Origin
China
Brand Name
Yinghe
Model Number
YH1290
Certification
CE
Specifications
Strong and stable mechanical structure designs digital controlled motion to be permanent stable and not need adjustment.
|
Address: NO. 8 whole Building,Baimibu Xiushui Industrial Park, Renhe Town, Baiyun District, Guangzhou, China (near Airport) contact person:Taylor Tel: +86 13427569706 skype:taylorlam1989 whatapp:+86137190422154 wechat:+86 13719042154 Branch Office: Shanghai, Beijing, Kunming, Mauritius, Website: | |||||||
|
| |||||||
| Functions: | |||||||
|
1. Strong and stable mechanical structure designs digital controlled motion to be permanent stable and not need adjustment. | |||||||
| 2. Laser power is made up of a group invariable voltage. | |||||||
| 3. Laser tube is adopted the high technology that made by military institute. | |||||||
|
4. Compared with domestic guide, this model uses the imported AMT linear guide that can work as 2 times as it | |||||||
| 5. It adopts a serial of BS chips | |||||||
| 6. It uses professional Hongkong BS step motor and driver system . | |||||||
| 7. Mirror and lens are made of imported fibrous material, which can endure high temperature. | |||||||
| Specification: | |||||||
| model | YH-1290 | YH-1310 | YH-1490 | YH-1610 | YH-1613 | ||
| Working area | 1200*900mm | 1300*1000mm | 1400*900mm | 1600*1000mm | 1600*1300mm | ||
| Laser power | 120W | ||||||
| Positioning accuracy | 0.025mm | ||||||
| Min engraving size | English 1 x 1mm | ||||||
| Repositioning positioning accuracy | ±0. 05mm | ||||||
| Power | AC220V±,50HZ | ||||||
| Driver motor | stepper | ||||||
| Max consume power | < 1250W | < 1350W | < 1450W | < 1550W | < 1650W | ||
| Working temperature | 0 - 45°C | ||||||
| cooling system | forced water cooling and protection system | ||||||
| Control software | DSP control system | ||||||
| plywood packing Demension |
1.96*1.55*1.26 =3.83cbm |
2.10*1.65*1.19 =4.123cbm |
2.17*1.54*1.19 =3.977cbm |
2.35 * 1.65*1.19 cbm |
2.35*1.96*1.08 =4.974cbm |
||
| Accessory device | air compressor and smoke tube | ||||||
| Accepted format | BMP,PLT ,DXF,CDR | ||||||
| Accepted Software | CorelDraw AutoCAD Photoshop | ||||||
| Net weight | 250KG | 280KG | 300KG | 330KG | 350KG | ||
Details:

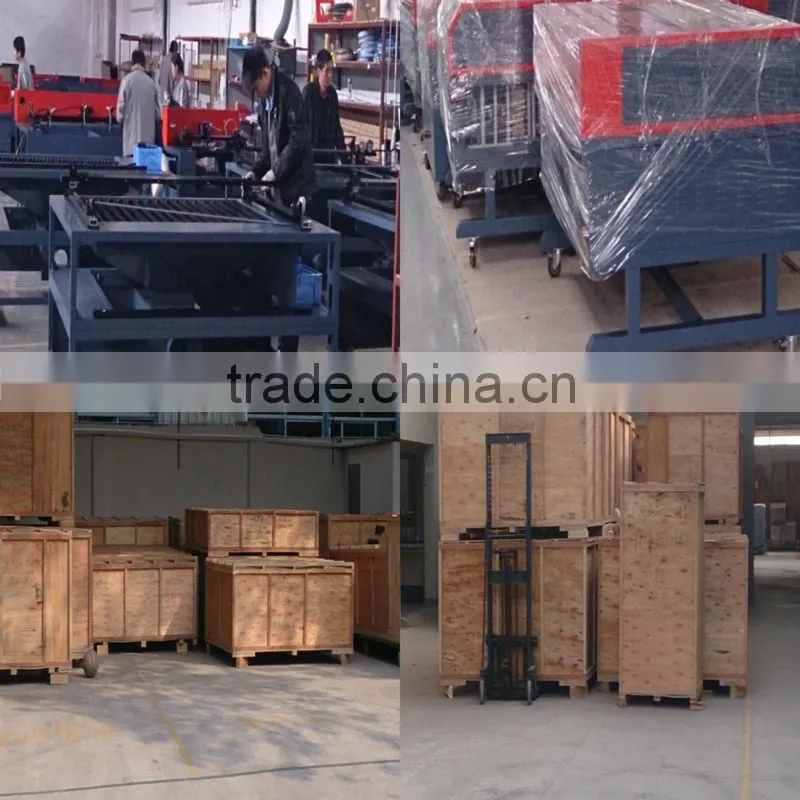

factory pic:

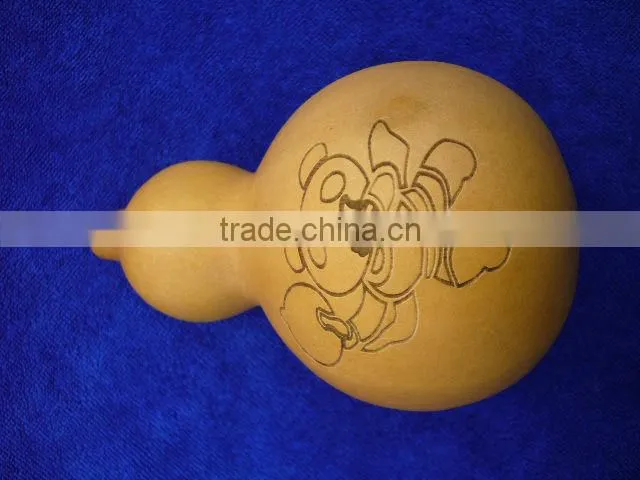

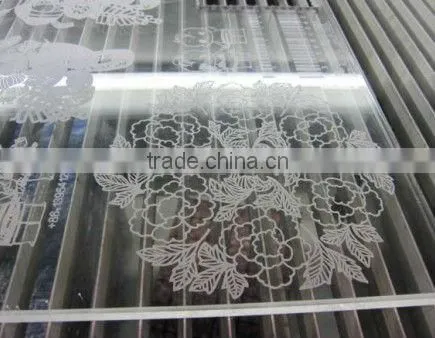

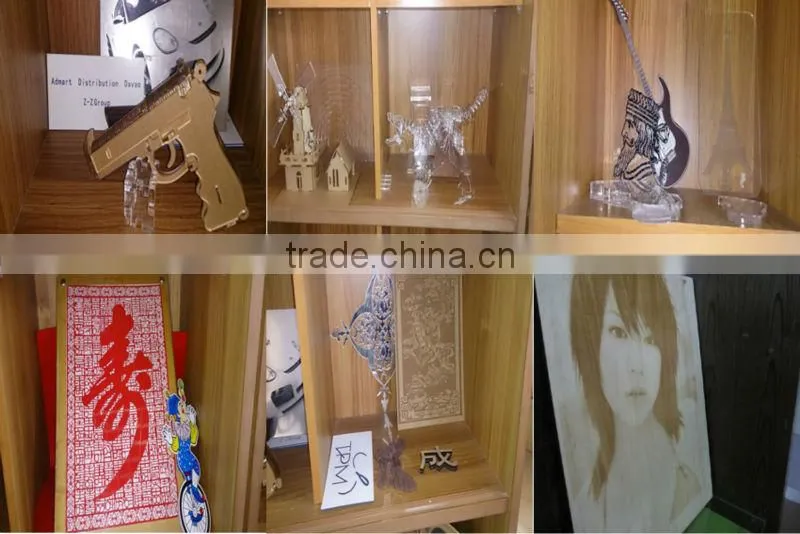

Samples:
