new product in Guangzhou China manufacture chinese cheap wood working cnc router
CNC router(without water tank)
Tel: 86 (20) 87056232 Mob: 86 13427569706 contact:Taylor
Fax: 86 (20) 87203963 Skype: taylorlam1989 whatapp: 86 13719042154
wechat: 86 13719042154
Applicable materials:Organic glass, PVC board, artificial marble, copper, aluminum, and plastic.
It mainly used for escutcheons, nameplate, seal, architecture model, artwork, adornment, industrial mould, wood goods etc.
The special design with double principal axis will make you handy to engrave with high resolution and energetically cut.
Structure: small body and durable
Speed: high speed. 2-3 times more than same style products
Design: fresh design and easy to operate
Function: more functions and adapt to multifunctional application
Economic: high Cost Effectiveness, save more investing cost
Parameter:
Model: YH-3030
Diameter of knife: 3.175mm (6mm)
Processing dimension: 300* 300* 45mm (60mm)
Dictate format: HPGL, deflate G code
Engraving speed: 0.1-70mm/s
Exculpate rate: 0.0125mm
Interface: RS-232C Serial interface
Principal axis motor: high speed (water-cooling) frequency conversion motor
Power supply: AC 220V/50-60HZ
Rotate speed of principal axis: 0-24000rpm
Power of principal axis: 800W-1200W optional
Weight of the machine: 70KG
Exterior dimension: 550mm*550mm*600mm
Packing: Wooden case

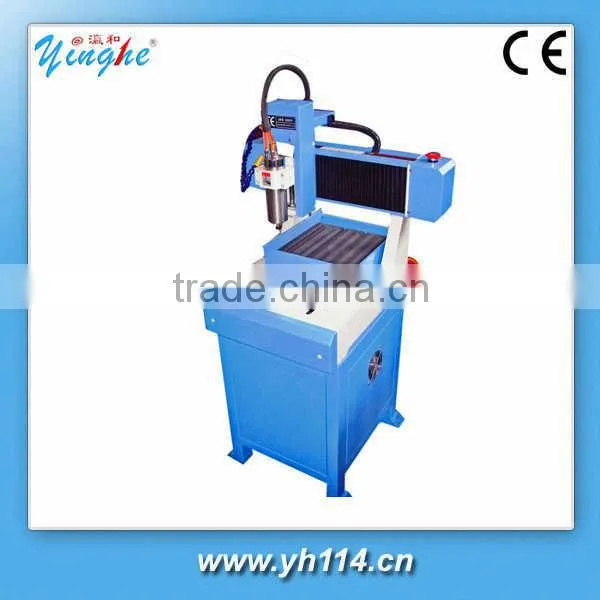

YH-3030 with holder
300mm*300mm
YH-3030 without holder

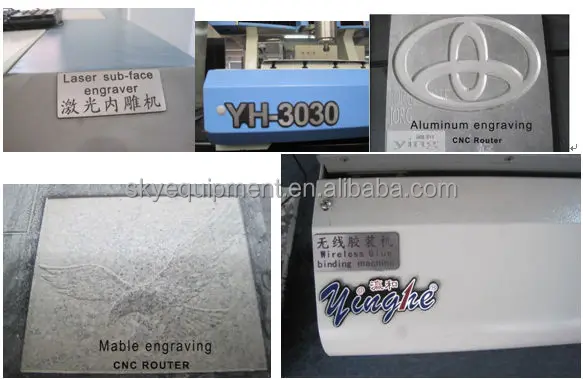

Details of the machine:

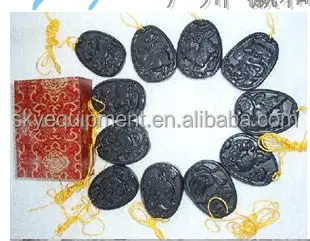

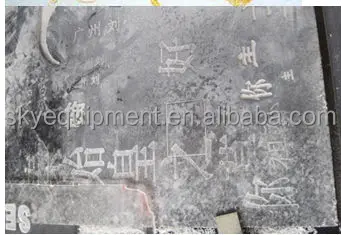

Curving Samples
Application
Advertisement industry:
Can make cutting, carving processing to wood, glass, plastic and marble etc. Also used in manufacture industry for copper, iron and aluminum work piece processing.
Artwork industry: Carving various characters and figures on gifts, furniture, wood articles, artworks and souvenirs. Matrix processing industry: Applied in carving of elaborate characters and patterns, processing of small matrix products.
Building model industry: Carving some elaborate small windows, fences, wall decoration patterns etc. Seal industry: Carving various seals with cattle horn, plastic, wood and ink storage matt.
Features:
1) PC base 32-bit DSP controller
2) The maximum transverse speed is 9mt/m and the maximum feeding speed is 6mt/m
3) 25mm dia. hardened guide rails with linear ball bearing bushings
4) 5mm pitch, 20mm ball screw
5) High frequency spindle with frequency inverter, 24.000rpm
6) Accepts compatible HP/GL, G-code command
7) 3-d Tool path simulation that is easy to correct mistakes
8) Applications: engraving or routing signs, prototype or production parts, prototype,
enclosure panels, templates, I.D. Tags, award plaques, etc.
9) Easily cuts light metals such as aluminum and copper, with precision and speed
to perform the finest 3D engraving
10) Working height of z axis: common 8 cm , the special is 12 cm
Model |
YH-3030 |
YH-6090 |
YH-9012 |
YH-1212 |
YH-1215 |
YH-1218 |
YH-1225 |
Engraving area |
30*30cm |
60*90cm |
90*120cm |
120*120cm |
120*150cm |
120*180cm |
120*250cm |
MaxConsume Power |
2.2KW |
2.2KW |
2.4KW |
2.4KW |
2.4KW |
2.4KW |
2.4KW |
Max.Speed |
0-4000mm/min |
0-4000mm/min |
0-4000mm/min |
0-4000mm/min |
0-4000mm/min |
0-4000mm/min |
0-4000mm/min |
Max.Working Speed |
0-3000mm/min |
0-3000mm/min |
0-3000mm/min |
0-3000mm/min |
0-3000mm/min |
0-3000mm/min |
0-3000mm/min |
Spindle Power Motor |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
Spindle Speed |
24000r/min |
24000r/min |
24000r/min |
24000r/min |
24000r/min |
24000r/min |
24000r/min |
Working Voltage |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
Blade Diameter |
Φ3.175,Φ4,Φ6 |
Φ3.175,Φ4,Φ6 |
Φ3.175,Φ4,Φ6 |
Φ3.175,Φ4,Φ6 |
Φ3.175,Φ4,Φ6 |
Φ3.175,Φ4,Φ6 |
Φ3.175,Φ4,Φ6 |
Software |
WENTAISoftware,Type3,Artcam |
WENTAI Software,Type3,Artcam |
WENTAI Software,Type3,Artcam |
WENTAI Software,Type3,Artcam |
WENTAI Software,Type3,Artcam |
WENTAI Software,Type3,Artcam |
WENTAI Software,Type3,Artcam |
Packing Size |
0.8 |
1.9 |
3.6 |
3.8 |
4.0 |
4.5 |
7.6 |
|
Accessories : software (artcam) water cooling system a set of blade flat-based sculping blade 3D-blade spanner(2 pcs, one is 17mm , one is 13mm ) warranty card instruction manual clamp signal line(cable) power supply cable control card . (the machine come with one set knife,16 PCS) |
