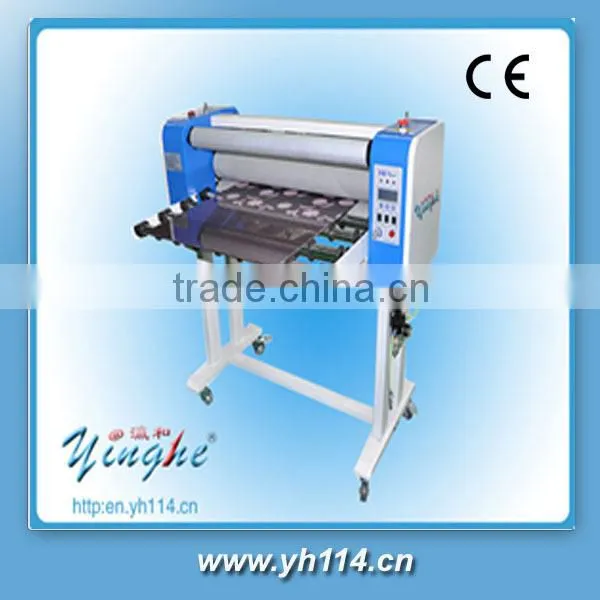

Flatbed Laminating Machine,flatbed Laminator,flatbed Hot and Cold Laminating Machine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Laminating Machine
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale High Speed Usb Paper CutterNegotiableMOQ: 1 Unit -
1325 Wooden CNC Cutting Machine With High-speed 860 Stepping Driver With High Configuration for WoodNegotiableMOQ: 1 Unit
-
12mm Bending Machine With Three Heater ,preheat Faster ,bending Automatic for Any DegreeNegotiableMOQ: 1 Unit
-
3d Vacuum Sublimation Heat Transfer Machine for Mug ,T-shirt ,cap,Plate and Any Shape Material Etc...NegotiableMOQ: 1 Unit
-
Die Creasing Machine Yinghe for Paper Package ,cardboard Box ..NegotiableMOQ: 1 Unit
Condition
New
Type
Laminating Machine
Place of Origin
China
Brand Name
yinghe
Model Number
YH850YP
Voltage
110/220v
Power(W)
1500w
Dimension(L*W*H)
600x2400x1100mm
Weight
200kg
Certification
ce
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
| The flatbed hot and cold laminating machine YH-850YP | |||
| | |||
| Machine configuration | |||
| 1. 90W adjustable deceleration torque motor | |||
| 2. Prevent scratches stainless steel before and after working platform | |||
| 3. Diameter 110mm Synthetic rubber up-roller which has endures high temperature function | |||
| 4. Diameter 110mm anti mucosa synthetic rubber low roller | |||
| 5. Automatic paper take-up device | |||
| 6. Anti-crease &anti-skew device (initiative) | |||
| 7. Unilateral equilibrium pressure regulator hand wheel | |||
| 8. Non-contact infrared temperature measurement system | |||
| 9. Inching foot switch | |||
| Product features | |||
| 1.Reducing cost , improving production quality. | |||
| 2.At least save a artificial | |||
| 3. 50°C cold back up , can completely avoid a bubble, snow point phenomenon | |||
| 4. High laminating efficiency and high yield | |||
| 5. laminating 50m will not incline. | |||
| 6. Automatic reveal the inside story paper function | |||
| 7. Single person or unattended operation, 400 square feet / hour | |||
| 8. When laminate the thin stick paper, it will not wrinkled, and the dark color picture will keep fastness | |||
| Wide range | |||
| Crystal steel door, cabinet door, color film processing, shiftgate color film, color glass processing, mural, aluminum plate , galvanized lamp and other plate class material sticking film | |||
| Parameter | |||
| Model | YH-850 | YH-1350 | |
| Max width (mm) | 850mm | 1350mm | |
| Roller upgrade | Cylinder ascension | Cylinder ascension | |
| Fixed input power | 1500w | 2200w | |
| Max thickness (mm) | 30mm | 30mm | |
| Roller heating | Infrared heating | Infrared heating | |
| Fixed input volt | 110v/220v | 110v/220v | |
| Speed | 0-6m/min | 0-6m/min | |
| Preheat time | 10-20mins | 10-20mins | |
| weight | 200kg(including platform) | 350kg(including platform) | |
| Temp range | Room temperature -80°C | Room temperature -80°C | |
| Power consumption | 0.8-1kw/h | 0.8-1kw/h | |
| Machine dimensions | 600x2400x1100mm | 600x2400x1100mm | |
|

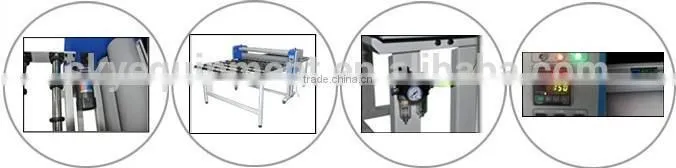

Details
| |||
After-Sales Service
1. Professional English speaking engineers
are online ready for your troubleshooting service.
It is reachable in an easy way.
2. We guarantee prompt warranty service for parts repairmen
and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests
and offer 7 days' free training and installation service
when customer bear the traveling expense including visa, round trip tickets,
boarding and lodging at service place.
