Specifications
1hot sale Transformer coil winder machine2machine with tape device,can winding and tape transformer
3wire size0.05-2.0mm

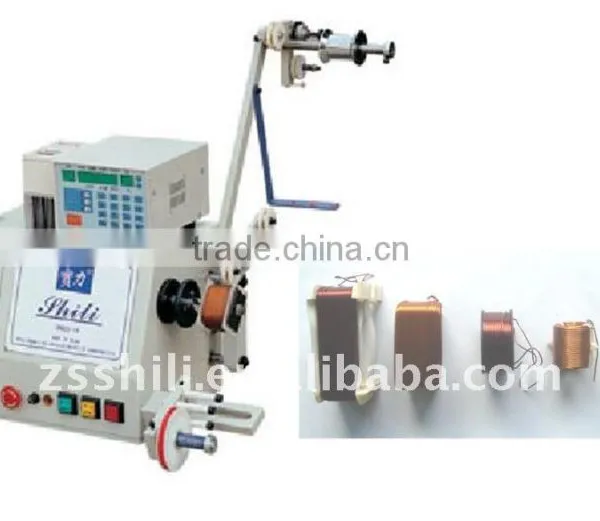

Transformer manual coil winder machine,wire winder machine
Descriptions of winding machine
N0.of spindle |
1 |
Wire size |
0.05-2.0MM |
raverse motor |
180MM |
Max.speed |
0-3000turns/min |
Power source |
220V 50HZ |
Main motor |
AC1/2+1HP |
Traverse motor |
Stepping motor |
Dimension |
600×360×450mm |
Wooden case |
750×780×550mm |
Net weight |
60kg |
Gross weight |
80kg |
Turning diameter |
200mm |
Line spacing |
9mm |
Main features:
1. adoption of the latest controller
2. with self test, including the setting error, speeding tracking and speed calibration. Can esay raise and reduce the spindle speed
3. can adjust climb time from low speed time to highest speed.time of the spindle motor
4.this machine with tape device,can winding and tape transformers
Set data:
Can set Starting point, wire size, winding width, number of turns, climbing turns, stop turns, winding speed,slow winding speed,winding direction, stopping at both ends, automatic reset, automatic start (auto jump to next slot and winding)
Details images of winding machine
| Europe: | Germany,Czech Republic, |
| Russia, | |
| UK, France | |
| Bulgaria, | |
| Italy | |
| North America: | USA, Canada, Mexico |
| South America: | South America |
| Australia | Australia |
| Asia : | China, |
| Singapore , Malaysia , Indonesia ,Vietnam, Tailand,Myanmar, | |
| Bengal,India, Pakistan, | |
| Turkey,Iran,Syria, ,UAE | |
| Africa: | Egypt, Tunis, ,Algeria, Dominica, |
| South Africa |
