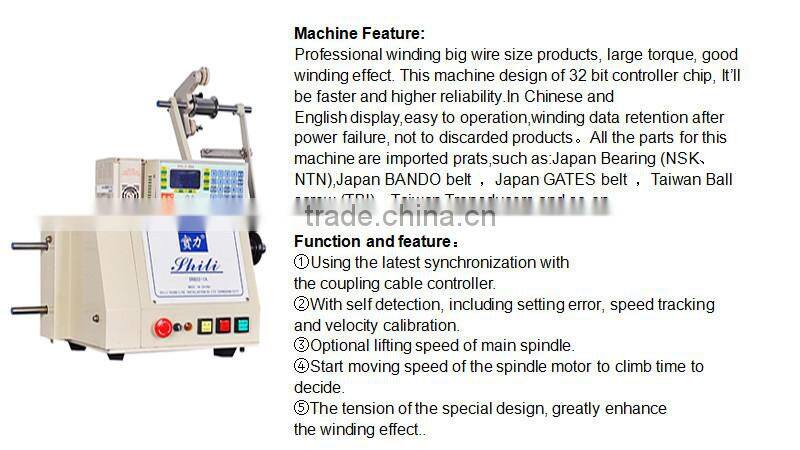

SRB22-1A high-strength thick wire 2mm transformer winding coils machine
Descriptions of coil winding machine
Spindle number | 1 |
Wire size range | 0.05-2.0MM |
Winder width | 180MM |
Max.speed | 0-4000turns/min(Two levels of adjustable)
|
Input power | 220V 50HZ/60HZ |
Spindle motor | Three-phase motor+Phase motor+ AC Drives |
Winder motor | Stepping motor |
Machine size | 600×360×450mm |
Package size | 780×810×580mm |
Net weight | 60kg |
Gross weight | 80kg |
Loop diameter | 200mm |
Max wire distance | 9.99mm |

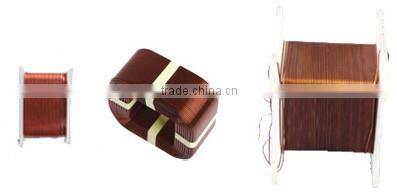

Application range:
EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch
power transformer and special products.
Details images of coil winding machine
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
