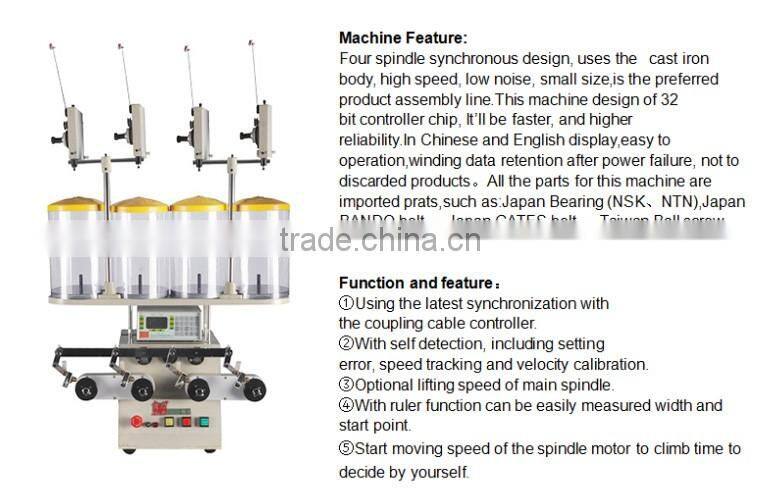

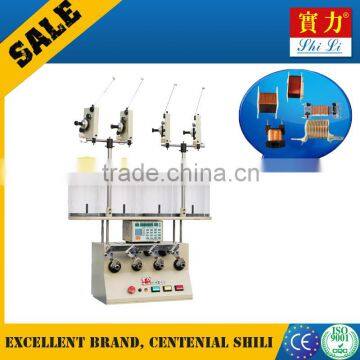

SRBC23-4 generator coil winding machine,guitar string winding machine
Descriptions of motor stator winding machinery
Spindle number |
4 |
Wire size range |
0.04-0.45mm |
Loop diameter |
80mm |
The max wire spacing |
9.99mm |
Winder width |
100mm |
Spindle pitch |
165mm |
Max speed |
6000 turn/min |
Spindle motor |
Three-phase motor+Phase motor+AC Drivers |
Winder motor |
Stepping motor |
Input power |
220V 50HZ/60HZ |
Machine size |
930×490×630mm |
Package size |
980×670×680mm |
Net weight |
85kg |
Gross weight |
100kg |
Application range:

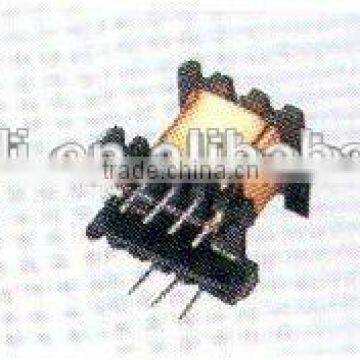

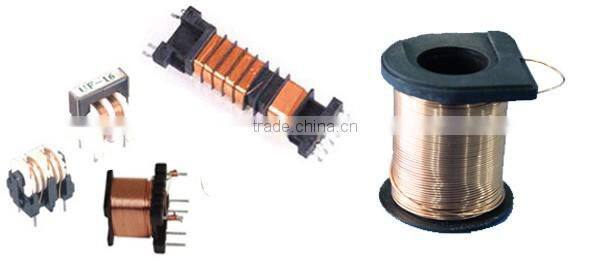

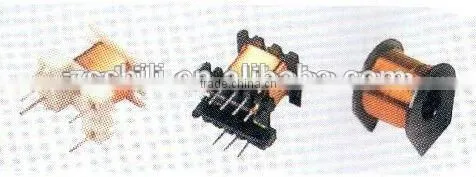

EE transformer,EI transformer,Stepping motor,Relay,coil class,
auto ABS,Switch power transformer and special products.
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
