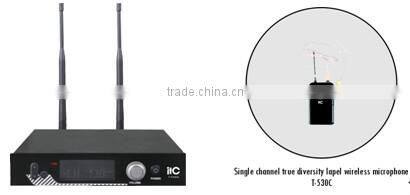

ITC T-530C Smallest Wireless Headset Microphone for Teaching
ITC T-530C Smallest Wireless Headset Microphone for Teaching
ITC T-530C Smallest Wireless Headset Microphone for Teaching
* Adopt international standard EIA 1/2 width and 1U high metal chassis, which can be mounted directly to the rack.
* The use of ultra-high frequency UHF true diversity reception and multi-channel digital phase locked loop DPLL frequency synthesis technology;
* Provide 640-665M Hz and 100 frequencies 740-765MHz two each. Single-channel true diversity reception, avoid off-frequency phenomena and prolong the receiving distance.
* Super anti-jamming capability, can effectively suppress the noise caused by external interference and co-channel interference.
* LCD display window, channel, frequency, RF signal strength, antenna selection information action, AF audio output intensity, dynamic sweep.
* With infrared frequency transmitter frequency locked automatically synchronize ACT function.
* Rear receiving antenna separation design, true diversity dual antenna diversity receiver and the sound code, noise lock dual mute circuit, receiver distance, easily dropped.
* Internal SQ can increase receiver sensitivity adjustment to increase or decrease the sensitivity of the receiving distance in order to avoid noise interference.
* The receiver can be an external directional gain antenna system for increasing the reception distance and stable reception, the ideal state can be up to about 200 meters.
ITC T-530C Smallest Wireless Headset Microphone for Teaching
System Specifications | |
Frequency range |
UHF740-830 Mhz total of two segments |
Modulation Mode |
Bandwidth FM |
Adjustable range |
25MHz |
Channels Number |
400 |
Channel spacing |
250KHZ |
Frequency stability |
± 0.005% or less |
Dynamic range |
100dB |
The maximum deviation |
± 45KHZ |
Audio response |
80HZ-18KHZ (±3dB) |
Integrated SNR |
> 105dB |
Integrated distortion |
≤0.5% |
Working distance |
100 meters |
ITC T-530C Smallest Wireless Headset Microphone for Teaching
Receiver Specifications | |
Receiver mode |
Double-conversion superheterodyne |
IF frequency |
110MHz, 10.7MHz |
Wireless Interface |
BNC / 50Ω |
Sensitivity |
12dB μV (80dBS / N) |
Sensitivity adjustment range |
12-32dB μV |
Spurious suppression |
≥75dB |
Output interface |
Balanced and unbalanced |
Maximum output level |
+ 10dBV |
Power supply |
DC 12 ~ 18V 500mA |
Working temperature |
-10 ℃ ~ + 40 ℃ |
Dimensions |
(W x H x D) 210 mm x 44 mm x 147 mm |
Weight |
about 1.4Kg |
ITC T-530C Smallest Wireless Headset Microphone for Teaching
Microphone Specifications | |
Ondo |
Dynamic microphone. |
Condenser |
Lavalier microphone, headset microphone |
Antenna |
Built-in helical antenna handheld microphone, transmitter 1/ 4 |
|
Wave whip-like antennas. |
Output power |
High power 30Mw; low power 3Mw. |
Discrete suppression |
-60dB |
Power supply |
2 AA 1.5V alkaline batteries |
Battery life |
About 10 hours at 30mW, about 15 hours when 3mW |
Function features |
True diversity reception mode, avoid break-frequency |
Phenomena and prolong the receiving distance. | |
Sound Features |
Enough intermediate frequency, relaxed singing, sound with |
magnetic and mixed thick feeling, the essence of the vocal | |
microphone sound. | |
