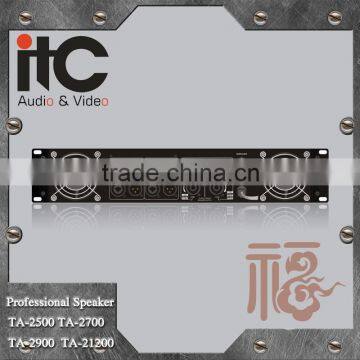

ITC TA Series Stereo Bridge Parallel Supported Internal Sound Processor 2 Channel Power Amplifier Professional

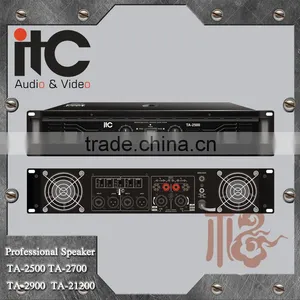

ITC TA Series Stereo Bridge Parallel Supported Internal Sound Processor 2 Channel Power Amplifier Professional thumbnail-1
ITC TA Series Stereo Bridge Parallel Supported Internal Sound Processor 2 Channel Power Amplifier Professional thumbnail-2
ITC TA Series Stereo Bridge Parallel Supported Internal Sound Processor 2 Channel Power Amplifier Professional thumbnail-3

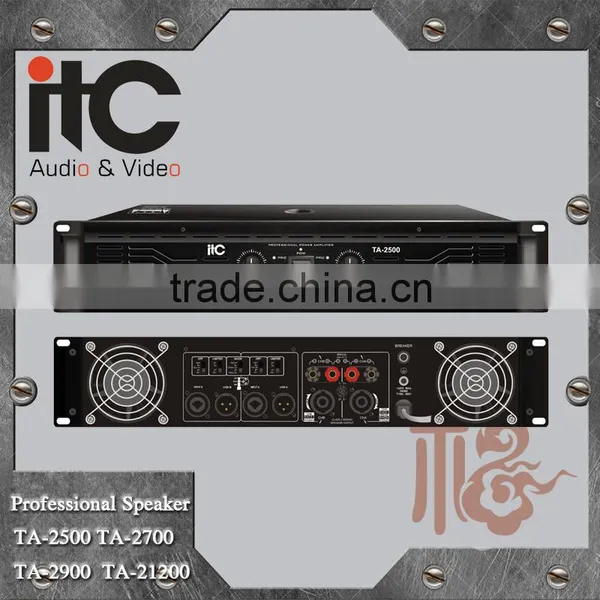

ITC TA Series Stereo Bridge Parallel Supported Internal Sound Processor 2 Channel Power Amplifier Professional photo-1

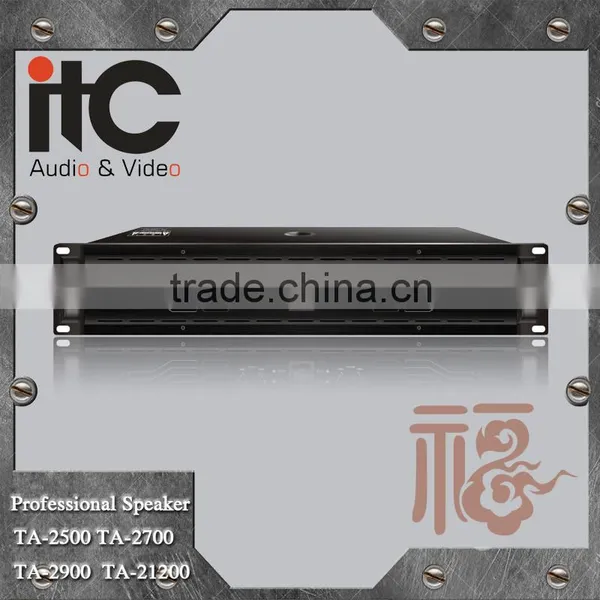

ITC TA Series Stereo Bridge Parallel Supported Internal Sound Processor 2 Channel Power Amplifier Professional photo-2

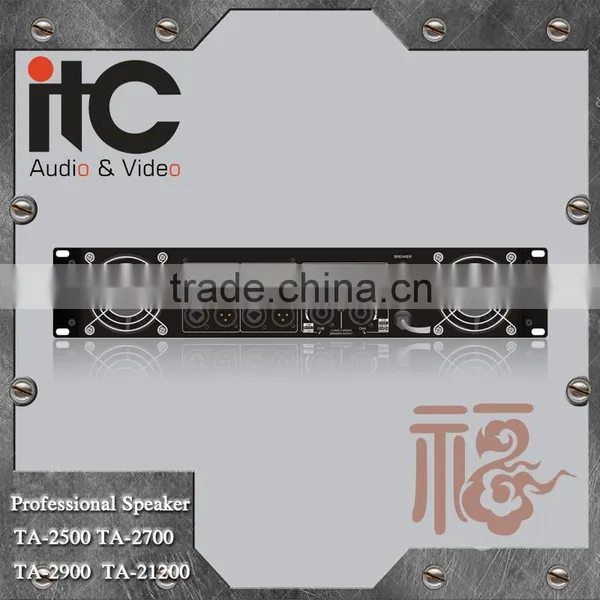

ITC TA Series Stereo Bridge Parallel Supported Internal Sound Processor 2 Channel Power Amplifier Professional photo-3
US$ 600 - 1,500 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
ITC
Model Number:
TA-2500 TA-2700 TA-2900 TA-21200
Type:
Professional Amplifier
Contact Supplier Request Quote Chat Now
Guangzhou ITC Electronic Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ITC
Model Number TA-2500 TA-2700 TA-2900 TA-21200
Type Professional Amplifier
Channels 2 (2.0)
Place of Origin Guangdong, China
Features

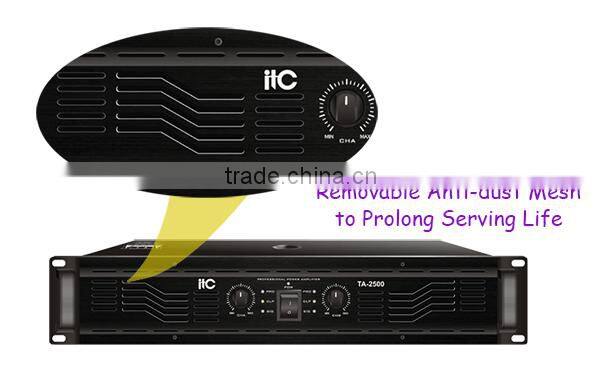

1）industrial alumina panel, which is durable; the front panel is removable for cleaning cooling vents;

2）Support soft-start to avoid causing interference to other devices, when it's turned on and absorbs large current;

3）With intelligent forced cooling design, low fan noise and high electrical efficiency;

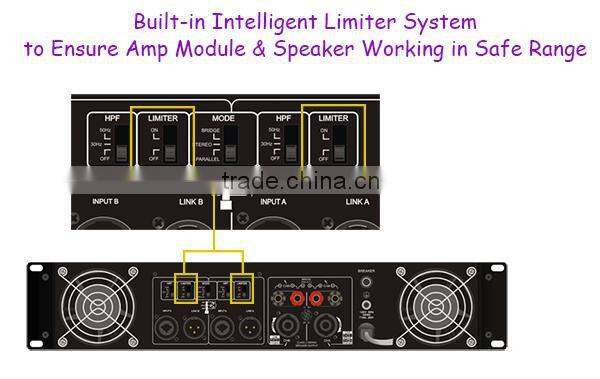

4）Intelligent limiter system to ensure the power module and the speaker system working in a safe range;

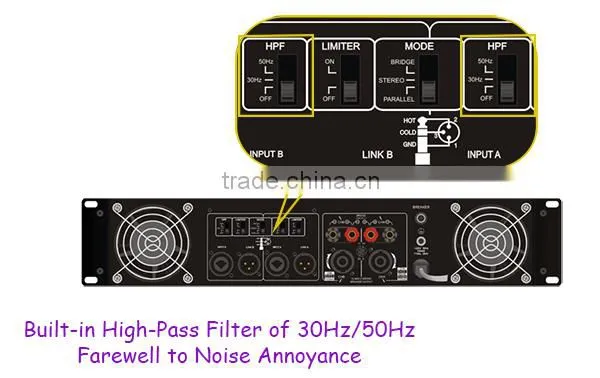

5）With 30/50Hz high pass filter;

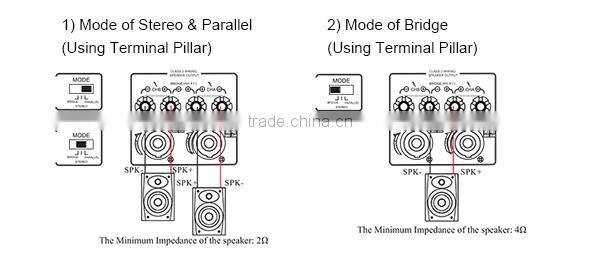

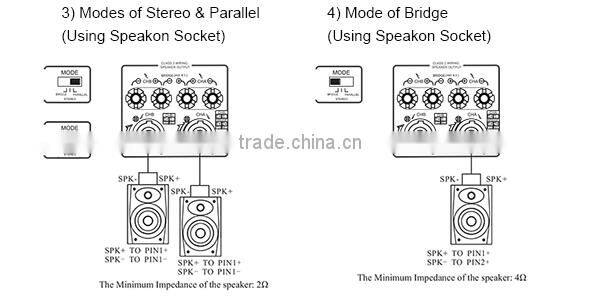

6）Various modes: bridged, stereo and in parallel;

7）Abundance reserve power; output could be at low impedance 2Ω; hi-fi sound quality to restore the quality of audio sources perfectly;

8）high-quality transformer and large amount of electrolyte at low impedance; to ensure normal operation in large dynamic range;

9）With class H high efficient power amplifier; complete and reliable security protection measures and working status indicators (short, overload, DC and overheating protection, transformer overheating protection).

Technical Parameters
Output Power
(20 to 20KHz/THD≤1%)
TA-2500
TA-2700
TA-2900
TA-21200
Stereo/Parallel 8Ωx2
500W x2
700W x2
900W x2
1200Wx2
Stereo/Parallel 4Ωx2
750W x2
1050W x2
1350W x2
1800Wx2
Stereo/Parallel 2Ωx2
1125W x2
1500W x2
2000W x2
2700Wx2
Bridged 8Ω
1500W x2
2100W x2
2600W x2
3600Wx2
Bridged 4Ω
2200W x2
3000W x2
4000W x2
5400Wx2
Connector
XLR, TRS
Voltage Gain (@1KHz)
36dB
37.7dB
38.5dB
40dB
Input Sensitivity
0dBu(1V)
Input Impedance
10KΩ unbalanced, 20KΩ balanced
Frequency Response(≤1W)
20 to 20KHz/±1dB
THD+N
≤0.05%
SNR (A Weighted)
≥100dB
Damping Factor(@1KHz)
≥300 @8ohms
Separating Degree(@1KHz)
≥80dB
Protection
overflowing, short, DC protection
Indicators
Power, Protection, Distortion
Cooling Method
Fan cooling
Power Supply
AC 220V to 240V 50/60Hz
Power Consumption
3300W
4500W
6000W
8000W
Dimension (LxWxH)
483x88x494mm
483x132x524mm
Weight
17.4Kg
19.6Kg
30Kg
32Kg
