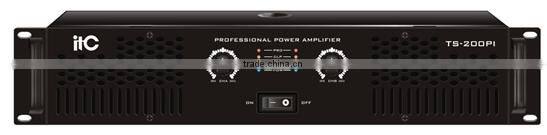

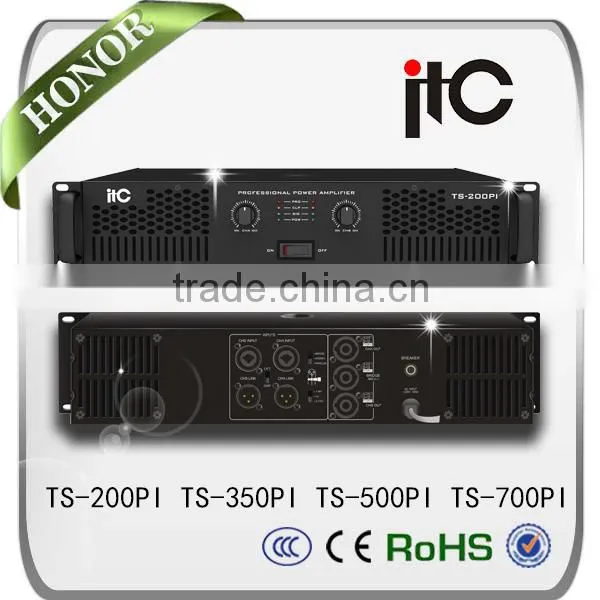

ITC Precise Series Practical Function Hifi Audio Stereo Amplifier
ITC Precise Series Practical Function Hifi Audio Stereo Amplifier
ITC Precise Series Practical Function Hifi Audio Stereo Amplifier
ITC Precise Series power amplifier meets the demand of various occasions including concert tour. It has complete protection for over-heat, overload, self-excitation for output short and DC output in order to ensure reliable operation of transistor. Special function of soft start make it avoid inrush current when it’s turned on so that the fuse would not be burned out because of it.
Solid and upscale case ensures safe transportation process. Unique high speed clipper-limiter make speakers keep safe even in crazy disco, for it limits large square wave produced by abnormal excitation. Distortion comparator circuit always monitors input and output signal and even when there is subtle distortion, it would correct immediately. Therefore, THD, SMPTE-IM, DIM30 and DIM100 are avoided. Excellent power system supplies pure power. Our engineers assemble it precisely, and when it’s 90-degree flipped or some what, the machine would not be influenced.
Input adopts XLR and it could output stereo sound or be bridged. We offer you with switcher to transform conveniently.
Precise step potentiometer is used to be volume control for input. Complete indicators make you know the operating status clearly. When it’s turned on, the fan rotates in low-speed. And when the temperature of heat sink is over 45-degree, the fan turns to rotate in high-speed automatically.
ITC Precise Series Practical Function Hifi Audio Stereo Amplifier
1) With adjustment knob for sensitivity.
2) 3 modes of operating: bridged, stereo and in parallel.
3) Ground pin of input socket could be both ground connected and suspended.
4) With dual-purpose socket of canon and 6.35 input.
5) CH A and CH B support LINK output.
6) With complete indicators for signal, protection status, limiter status and power status.
7) CH A and CH B have individual volume control.
8) 3 kinds of output: CH A output, CH B output and Bridged SPEAKON output.
With complete protection for short, overload, over-heat, etc.
ITC Precise Series Practical Function Hifi Audio Stereo Amplifier
Model |
TS-200PI |
TS-350PI |
TS-500PI |
TS-700PI |
Output Power | ||||
Stereo/In Parallel 8 ohm |
200Wx2 |
350Wx2 |
500Wx2 |
700Wx2 |
Stereo/In Parallel 4 ohm |
300Wx2 |
530Wx2 |
730Wx2 |
1050Wx2 |
Bridging 8 ohm |
600W |
1060W |
1460W |
2100W |
S/N Ratio |
< -90dB |
< -90dB |
< -95dB |
< -95dB |
Frequency Response |
20Hz --- 20KHz (+0 dB/ -3 dB) |
|||
Input Impedance |
> 20K ohm |
|||
Input Sensitivity |
0.775V/1V/1.44V |
|||
Separation |
> 70dB |
|||
Distortion |
< 0.05% |
|||
Damping |
> 200 |
|||
Dimension |
484*395*88mm |
484*465*88mm |
||
Weight |
11.2 Kg |
12.6 Kg |
15.8 Kg |
17.9 Kg |
