ITC TS-2060W Series Having Internal MP3 Player Full Digital Amplifier Bluetooth

US$ 150 - 300 MOQ: 10 Units

Key Specifications

Brand Name:

ITC

Model Number:

TS-2060W/TS-2120W

Type:

Professional Amplifier

Guangzhou ITC Electronic Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen and HK

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ITC

Model Number TS-2060W/TS-2120W

Type Professional Amplifier

Channels 2 (2.0)

Place of Origin Guangdong, China

ITC TS-2060W Series Having Internal MP3 Player Full Digital Amplifier Bluetooth

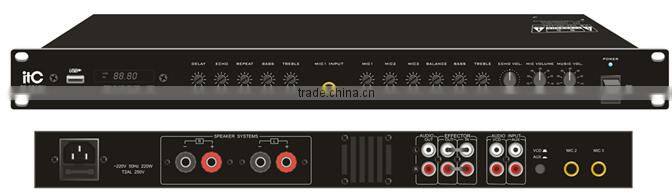

Appearance

ITC TS-2060W Series Having Internal MP3 Player Full Digital Amplifier Bluetooth

Feature

ITC TS-2060W Series Having Internal MP3 Player Full Digital Amplifier Bluetooth

1) With 2 audio input; support switching

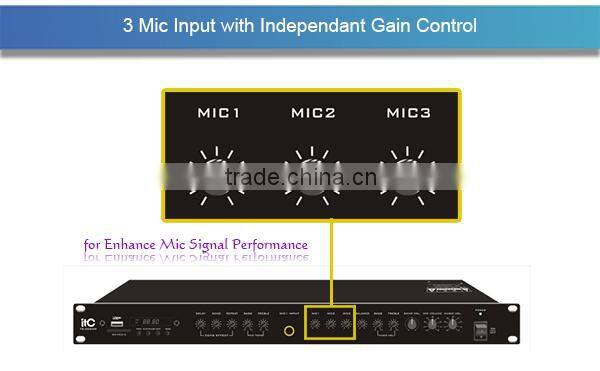

2) With 3 Mic input; they’re with individual gain control

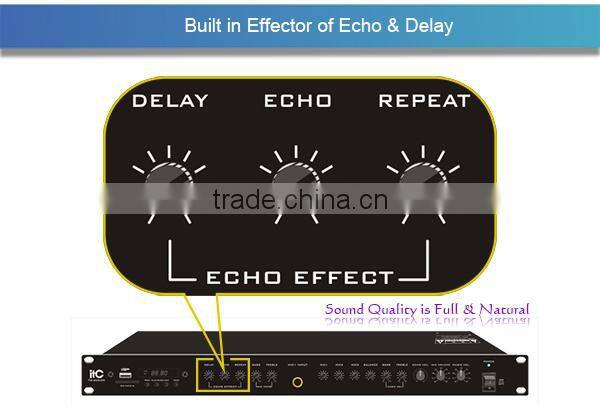

3) With professional digital circuit for echo and delay to make sound fuller

4) With internal MP3 player; it’s with USB port and SD slot; it support Bluetooth and is with LED to display status

5) Support recording

6) Rated power output is 60W x2 and 120W x2; Could be linked with 2 speakers at 8 ohm

7) The volume control and the effect use hidden type adjustment to ensure reliable operation

8) Using forced cooling fan to ensure heat dissipation in order to prolong the working life

9) The case is in 1U; Using the switching power and the chips combination of class D amplifiers; higher efficiency and lighter

Technical Parameters

ITC TS-2060W Series Having Internal MP3 Player Full Digital Amplifier Bluetooth

Model	TS-2060W	TS-2120W
Rated Power Output	2 x60W	2 x120W
Impedance of Output	4 to 8 ohm
Sensitivity & Impedance of Input	Mic 1/2/3: ±350mV/600 ohm (unbalanced input)
	AUX: 350mV/10 Kohm (unbalanced input)
	VCD: 350mV/10 Kohm (unbalanced input)
	Effect In: 350mV/10 Kohm (unbalanced input)
Front Output	Effect Out: 350mV/470 ohm
	Audio Out: 1V ±50mV/470 ohm
Tone of Mic	Bass: ±10dB at 100Hz
	Treble: ±10dB at 100Hz
Tone of Music	Bass: ±10dB at 100Hz
	Treble: ±10dB at 100Hz
Effector	Delay: 80ms to 240ms; Echo: 1 to 12
	Repeat: 0.1s to 2s
Frequency Response	AUX, VCD: 20Hz (±3dB) to 20KHz (±3dB)
	Mic: 50Hz (±3dB) to 16KHz (±3dB)
S/N Ratio	Mic: ≥65dB
	Music: ≥70dB
T.H.D.	≤1%
Indicator	To show power status
Cooling Way	Air-cooled
