ITC T-6350 Series 350W 500W 650W Mono Public Address Sound Power Amplifier

ITC T-6350 Series 350W 500W 650W Mono Public Address Sound Power Amplifier photo-1
US$ 200 - 400 MOQ: 20 Units
Key Specifications
Get Latest Price
Brand Name:
ITC
Model Number:
T-6350/T-6500/T-6650
Type:
Professional Amplifier
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ITC
Model Number T-6350/T-6500/T-6650
Type Professional Amplifier
Channels 1
Place of Origin Guangdong, China

ITC T-6350 Series 350W 500W 650W Mono Public Address Sound Power Amplifier

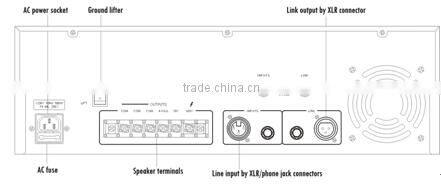

Rear Panel

ITC T-6350 Series 350W 500W 650W Mono Public Address Sound Power Amplifier



ITC T-6350 Series 350W 500W 650W Mono Public Address Sound Power Amplifier

Application

ITC T-6350 Series 350W 500W 650W Mono Public Address Sound Power Amplifier



  • 1 channel post-class power amplifier.
  • Used to Public Address System; Suitable for large area and medium-sized venues.
Feature

ITC T-6350 Series 350W 500W 650W Mono Public Address Sound Power Amplifier



  • Standard cabinet design in 3U.
  • A set of unbalanced input and output in type of TRS.
  • A set of balanced input and output in type of XLR.
  • With total volume control.
  • Complete circuit protection for over-heat, overload, short, etc.
  • 2 kinds of power output mode: constant voltage output of 100V or 70V and constant impedance output of 4 to 16 ohm.
  • Power supply at DC 24V is also allowed.
Specification

ITC T-6350 Series 350W 500W 650W Mono Public Address Sound Power Amplifier



Model

T-6350

T-6500

T-6650

Rated Power Output

350W

500W

650W

Speaker Output

70V, 100V & 4~16Ω

Input Sensitivity & Impedance

±385mV/20KΩ, Balanced XLR Input

775mV/10KΩ, Unbalanced TRS Input

Output Sensitivity & Impedance

±385mV/470Ω, Balanced XLR output

775mV/470Ω, Unbalanced TRS output

Electric potential of overload

>15dB

Frequency Response

50Hz~16KHz(+1dB, -3dB )

S/N Ratio

>90dB

THD

Less than 0.1% at 1KHz, 1/3 rated power

Ground

Connected to chassis or Suspension

Cooling

Fan starts up auto. when temp. reaches 55

Protection

Over-heat, overload, short, etc

Power Supply

~110V/60Hz or ~230V/50Hz or DC 24V

Power Consumption

500W

720W

950W

Weight

13.72Kg

15.24Kg

15.6Kg

Dimensions

484x358x132mm

Finish

Panel: aluminum, black

Case: Stainless Steel, black
