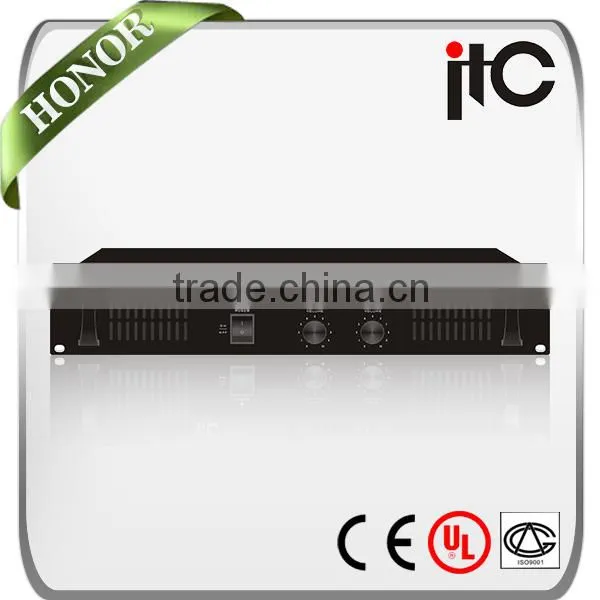

ITC T-2S60 Series Competitive Price 2 Channel PA Mosfet Power Amplifier
ITC T-2S60 Series Competitive Price 2 Channel PA Mosfet Power Amplifier
The dual-channel sound power amplifier are designed for commercial and industrial public address application. With two separate amplificator in a single chassis and rated power ranges from 60W, 120W, 240W, 350W to 500W per channel which provides a wide selection to meet different size sound system needs. The sound power amplifier is designed of rack mount type and T-2S60/T-2S120 are in 2U height while T-2S240/T-2S350/T-2S500 are in 3U height.
Both balanced and unbalanced line input for each channel make it selectable for installer, balanced line output for each channel feed to another power amplifier as well as secure the signal transmission is less noise and longer distance.70V, 100V and 4 to16ohm speaker output for each channel are convenient for installation when selection different speaker matching. Master
volume controls for each control are included. Complete protection includes over heat, over load, clip & short circuit. Indications for power, signal, clip, protection and temp.
ITC T-2S60 Series Competitive Price 2 Channel PA Mosfet Power Amplifier
* 2 separate sound power amplifier into one chassis
* Rack mount amplificator in 2U (T-2S60/T-2S120) and 3U (T-2S240/T-2S350/T-2S500) types
* Rated power from 60W, 120W, 240W, 350W to 500W per channel
* 70V, 100V and 4-16 ohm speaker outputs for each channel
* Isolated transformer for human safety operation
* Balanced XLR type line input and unbalanced 1/4 inch XLR phone jack line input for each Channel
* Balanced XLR type line outputs for each channel feed to another power amplificator
* Reliable protection of over heat, over load, clip & short circuit
* Indications for power, signal, clip, protection and temp
* Excellent device of radiator cooling fan that ensures working effectively
Optional
* DC 24V input available on less than but not included 350W models
ITC T-2S60 Series Competitive Price 2 Channel PA Mosfet Power Amplifier
Model |
T-2S60 |
T-2S120 |
Rated Power Output |
2x60W |
2x120W |
Speaker Output |
70V, 100V & 4~16Ω |
|
Input Sensitivity & Impedance |
±385mV/20KΩ, Balanced XLR Input 775mv/10KΩ, Unbalanced TRS Input |
|
Output Sensitivity & Impedance |
±385mvV/470Ω, Balanced XLR output 775mv/470Ω, Unbalanced TRS output |
|
Overload Electromotive Force |
more than 15dB |
|
Frequency Response |
50Hz~16KHz(+1dB, -3dB) |
|
S/N Ratio |
more than 90dB |
|
THD |
Less than 0.1% at 1KHz, 1/3 rated power |
|
Crosstalk |
less than 50dB |
|
Cooling |
Fan automatically start up when temp reaches 55°C |
|
Protection |
Over heat, over load, clip & short circuit |
|
Power Supply |
~110V/60Hz or ~230V/50Hz or DC 24V |
|
Power Consumption |
200W |
400W |
Weight |
11.3 Kg |
16 Kg |
Dimension |
484x358x88mm |
|
Finish |
Panel: aluminum plate, black Case: Steel plate, black |
|
