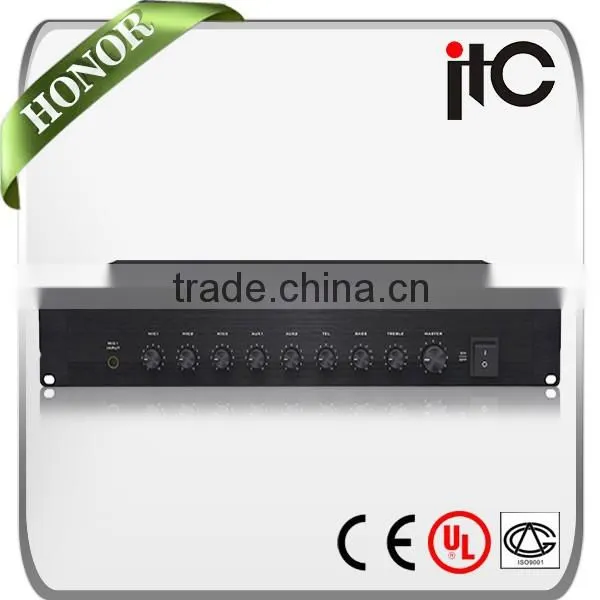

ITC T-10AP Well Performance PA Audio BGM Mixer Amplifier
ITC T-10AP Well Performance PA Audio BGM Mixer Amplifier
ITC T-10AP Well Performance PA Audio BGM Mixer Amplifier
T-10AP is desktop power amplifier, and the rated power is 10W. It meets the demand of small scale PA system. For audio processing, it’s only with volume control so that it needs to work with preamplifier. It has 2 modes of power output to be connected with constant voltage speaker and constant impedance speaker. They’re constant voltage output at 70V or 100V and constant impedance output at 4 to 16 ohm. What’s more, it’s with excellent fan. When operating, it also keeps the environment quiet.
ITC T-10AP Well Performance PA Audio BGM Mixer Amplifier
1) Rated Power: 10W
2) With 1 Mic input (5mV 1Kohm) and 1 AUX input (300mV 10Kohm)
3) 1 TEL input (Sensitivity is 1V 2Kohm)
4) With internal tone control (Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz)
5) With the function of priority, TEL has the highest, Mic has the second, and AUX 1 has the third
6) Constant voltage output at 100V or 70V and constant impedance output at 4 to 16 ohm
ITC T-10AP Well Performance PA Audio BGM Mixer Amplifier
Model |
T-10AP |
Rated Power |
10W |
Speaker Output |
4 to 16 ohm, 70V/100V |
Sensitivity/Impedance of Input |
1V/50Kohm |
S/N Ratio |
Less than 90dB |
Frequency Response |
50Hz to 15KHz |
2 Sensitivity/Impedance of Input |
5mV/1000ohm |
S/N Ratio |
Less than 62dB |
Tone Control (Bass: 100KHz, Treble: 10KHz) |
+12dB |
3 Sensitivity/Impedance of Input |
300mV/1000ohm |
S/N Ratio |
Less than 76dB |
Frequency Response (+2dB) |
50Hz to 15KHz |
Tone Control (Bass: 100KHz, Treble: 10KHz) |
+12dB |
Front Output |
0dBV/600ohm |
T.H.D. |
<0.5% |
Line Output |
10dB/3 Kohm |
Cooling |
Forced Wind |
Power Supply |
AC 110V of 60Hz or AC 230V of 50Hz or DC 24V |
Dimension (mm) |
200*150*44 |
Weight |
3.2Kg |
