ITC T-61000 Series Public Address System Used Sound Power Amplifier 1500W
ITC T-61000 Series Public Address System Used Sound Power Amplifier 1500W
ITC T-61000 Series Public Address System Used Sound Power Amplifier 1500W
ITC T-61000 Series Public Address System Used Sound Power Amplifier 1500W
- 1 Channel high power post-class amplifier.
- Suitable to do sound reinforcing in large area.
ITC T-61000 Series Public Address System Used Sound Power Amplifier 1500W

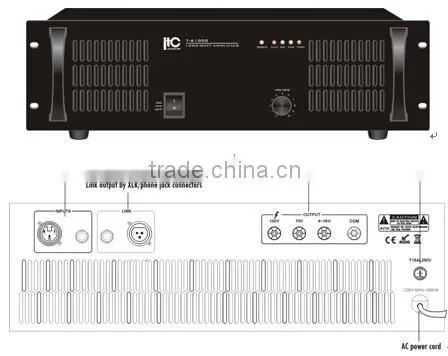

- Standard rack design in 3U.
- 1 unbalanced line input in type of TRS and the matching output.
- 1 balanced line input in type of XLR and the matching output.
- With total volume control in the front panel.
- Complete circuit protection for short, over-heat, overload, etc.
- 2 kinds of rated power output: constant voltage output of 100V or 70V and constant impedance output of 4 to 16 ohm.
- Power supply at DC 24V is also allowed.
ITC T-61000 Series Public Address System Used Sound Power Amplifier 1500W
Model |
T-61000 |
T-61500 |
Rated Power Output |
1000W |
1500W |
Speaker Output |
70V, 100V & 4~16Ω |
|
Input Sensitivity & Impedance |
±385mV/20KΩ, Balanced XLR Input; 775mV/10KΩ, Unbalanced TRS Input |
|
Output Sensitivity & Impedance |
±385mV/470Ω, Balanced XLR output; 775mV/470Ω, Unbalanced TRS output |
|
Frequency Response |
50Hz~16KHz(+1dB, -3dB ) |
|
S/N Ratio |
>90dB |
|
THD |
Less than 0.3% at 1KHz, 1/3 rated power |
|
Ground |
Connected to the cabinet or suspension |
|
Cooling |
Fan starts up automatically when temp. > 55℃ |
|
Protection |
Short, overload, over-heat, etc |
|
Power Supply |
~110V/60Hz or ~230V/50Hz or DC 24V |
|
Power Consumption |
1500W |
2300W |
Weight |
25.8Kg |
27.08Kg |
Dimension |
484x530x88mm |
|
Finish |
Panel: aluminum, black Case: Stainless steel plate, black |
|
