With multiple balanced Mic/Line Input and 2 Channel Output.
ITC T-2S01 2 Output Channel Balanced Input Phono Preamp
- Standard Chassis in 1U; User-friendly design.
- Indicator for each group of input.
- With priority switcher for Mic 2/3/4.
- Optional function of high-pass filter for Mic input.
- With chime for reminding: 1. 2 kinds of chime for choose; 2. Auto. Priority; 3. The chime coordinates with remote paging microphone.
- With 3 modes of output(Output 1 only, Output 1+Output 2, Output 2 only).
- Treble/bass control for output.
- With individual indicator for each output.
- Stereo line output 7 to 10 in RCA
- With function of recording.

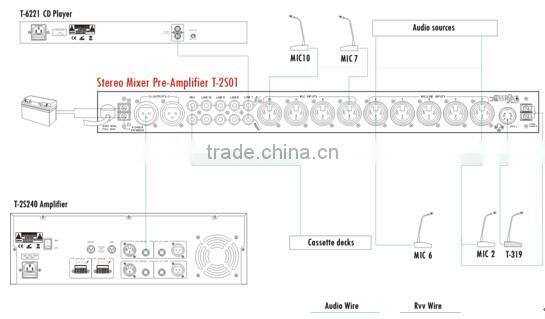

- Working with T-319.
ITC T-2S01 2 Output Channel Balanced Input Phono Preamp
Model | T-2S01 |
Input Sensitivity/Impedance |
|
MIC/ Line | ±2.45mV/5KΩ balanced, ±245mV/5KΩ balanced |
RCA Line In | 500mV/5KΩ unbalanced |
Output Level/Impedance |
|
Output 1, 2 | +4dBu/200Ω balance |
REC | 0dBu/10KΩ unbalanced |
Frequency Response |
|
Less Than | -1dB(20Hz~20KHz) |
S/N Ratio |
|
MIC | More than 60dB |
Line | More than 75dB |
THD |
|
MIC | Less than 0.05% |
Line | More than 0.03% |
Cross-talk |
|
MIC | More than 60dB |
Line | More than 75dB |
Power Consumption | 13W |
Power Supply | ~110V/60Hz or ~230V/50Hz & DC 24V |
Dimension | 484x295x44mm |
Weight | 4.28Kg |
