Home > Consumer Electronics > Audio & Sets > Amplifier > ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

US$ 200 - 450 MOQ: 10 Units

Key Specifications

Get Latest Price

Brand Name:

ITC

Model Number:

TI-350/TI-550/TI-650

Type:

Professional Amplifier

Contact Supplier Request Quote Chat Now

Guangzhou ITC Electronic Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen & HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name ITC

Model Number TI-350/TI-550/TI-650

Type Professional Amplifier

Channels 5 (4.1)

Place of Origin Guangdong, China

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

Shopowner Recommend

ITC T-6760 Series IP PA System 60 Watt to 350 Watt IP Audio PA Amplifier

Appearance

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

Product Description

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

5 zone mixer amplifiers have power ratings from 60W, 120W, 240W, 350W, 500W to 650W. They are featured of 3 microphone inputs, 2 aux inputs and 1 EMC input. Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel. Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.

Feature

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

* Rated power from 60W, 120W, 240W, 350W, 500W to 650W

* 2U rack mount (less than 350W) and 3U rack mount design

* 70V, 100V and low impedance 4-16 ohm speaker output

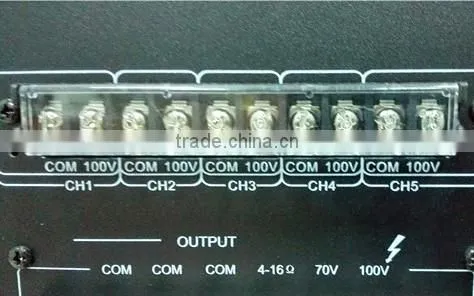

* 5 zone and all zone speaker terminals

* 3 Mic inputs by phone jack type

* Mic 1 with VOX priority and VOX level on front panel

* Mic 2-3 by phone jack on rear panel

* 2 Aux Inputs and 2 line inputs for spare use

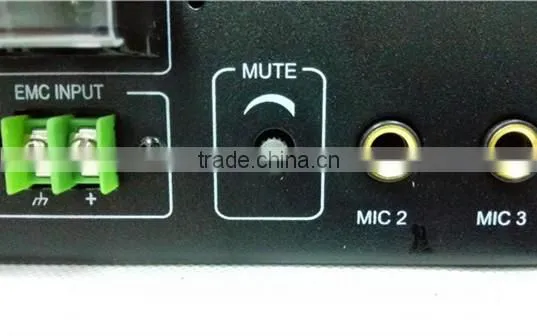

* One EMC priority input

* EMC has priority over all inputs except MIC1

* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control

* Short circuit, overload and high temp protection

Optional

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

* DC 24V available on less than 500W model

* Panel with/without handhold

* Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier Switch

Specification

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

Model	TI-350	TI-550	TI-650
Rated Power Output	350W	500W	650W
Speaker Output	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input EMC: 775mV/10KΩ, Unbalanced RCA input
Output Sensitivity & Impedance	MIX OUT: 1000mV/470Ω, Unbalanced RCA output
Tone	Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Frequency Response	50Hz~16KHz(+1dB, -3dB)
S/N Ratio	MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB
THD	Less than 0.5% at 1KHz, 1/3 rated power
Muting Function	MIC 1 overrides other input signals with 0-30dB attenuation
Crosstalk	≤50dB
Cooling	Fan automatically start up when temp reaches 55°C
Protection	High temp, overload & short-circuit
Power Supply	~110V/60Hz or~230V/50Hz or DC 24V
Power Consumption	500W	750W	900W
Weight	18.7Kg	22.4Kg	23.7Kg
Dimensions	484x385x132mm
Finish	Panel: aluminum plate, black Case: steel plate, black
