ITC TI-60 Series Cost Effective PA System 5 Zone Mixer Amplifier

Guangzhou ITC Electronic Technology Limited

US$ 100 - 250 MOQ: 10 Units

Key Specifications

Brand Name:

ITC

Model Number:

TI-60/TI-120/TI-240/TI-350/TI-550/TI-650

Type:

Professional Amplifier

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ITC

Model Number TI-60/TI-120/TI-240/TI-350/TI-550/TI-650

Type Professional Amplifier

Channels 5 (4.1)

Place of Origin Guangdong, China

ITC TI-60 Series Cost Effective PA System 5 Zone Mixer Amplifier

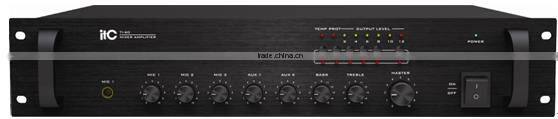

Appearance

ITC TI-60 Series Cost Effective PA System 5 Zone Mixer Amplifier

Application

ITC TI-60 Series Cost Effective PA System 5 Zone Mixer Amplifier

It’s suitable for small to large scale projects which needs partitions

Feature

ITC TI-60 Series Cost Effective PA System 5 Zone Mixer Amplifier

1) TI-60/TI-120/TI-240 is in 19” case of 2U and TI-350/TI-550/TI-650 is in 19” case of 3U

2) 3 Mic Input in type of TRS, 2 AUX Input, and 1 EMC Input

3) With function of 3 level priority: Mic 1 has the highest, EMC has the second and others have the third

4) 2 Mic/Line Input and the sensitivity of line input is 775mV

5) Mic Input and AUX Input have individual volume control and the audio output is with total volume control and treble/bass control

6) It’s with 5 partitions’ output and the status of each partition is optional

7) With complete circuit protection for short, over-heat, overload, etc

8) 2 modes of power output: constant voltage output of 70V or 100V and constant impedance output at 4 to 16 ohm

9) For TI-60/TI-120/TI-240/TI-350, power supply at DC 24V is available

Specification

ITC TI-60 Series Cost Effective PA System 5 Zone Mixer Amplifier

Model	TI-60	TI-120	TI-240	TI-350	TI-550	TI-650
Rate Power	60W	120W	240W	350W	500W	650W
Output for Speaker	70V, 100V or 4 to 16 ohm
Sensitivity & Impedance for Input	Mic 1/2/3: 5mV/600 ohm, Unbalanced TRS
	Line 2/3: 775mV/10Kohm, Unbalanced RCA
	AUX 1/2: 350mV/10Kohm, Unbalanced RCA
	EMC: 775mV/10Kohm, Unbalanced DG7.62
Sensitivity & Impedance for Output	Mix Out: 1000mV/470 ohm, Unbalanced TRS
Electric Potential of Overload	Mic 1/2/3: >12dB, Unbalanced TRS
	Line 2/3: >12dB, Unbalanced RCA
	AUX 1/2: >20dB, Unbalanced RCA
	EMC: >12dB, Unbalanced DG7.62
Tone	Bass: ±10dB at 100Hz
	Treble: ±10dB at 10KHz
Frequency Response	50 to 16KHz (+1dB, -3dB)
S/N Ratio	Mic 1/2/3: 66dB; AUX 1/2: 80dB
T.H.D.	1KHz: 0.5%, 1/3 Rated Power
Mute	Mic 1 has highest priority; Adjustment Range: 0 to 30dB
Crosstalk	≤50dB
Cooling	The Fan Starts, when Temp≥55-degree
Circuit Protection	Over-heat, overload & short
Power Supply	AC 110V/60Hz or AC 230V/50Hz or DC 24V				AC 110V/60Hz or AC 230V/50Hz
Power Consumption	100W	200W	400W	500W	750W	950W
Dimension	*48430388mm*			*484359132mm*
Weight	8.1Kg	8.6Kg	11.68Kg	13.96Kg	15.72Kg	17.8Kg
Material	Aluminum Alloy SPCC Case, Black
