ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier Quality Choice

ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier Quality Choice thumbnail-1
ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier Quality Choice photo-1
US$ 150 - 200 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
ITC
Model Number:
T-6705A
Type:
Professional Amplifier
Contact Supplier Request Quote Chat Now
Guangzhou ITC Electronic Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ITC
Model Number T-6705A
Type Professional Amplifier
Channels 1
Place of Origin Guangdong, China

ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier



ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier





Recommend

ITC T-6704 IP based PA System 4 Channel Digital IP Audio Decoder

ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier

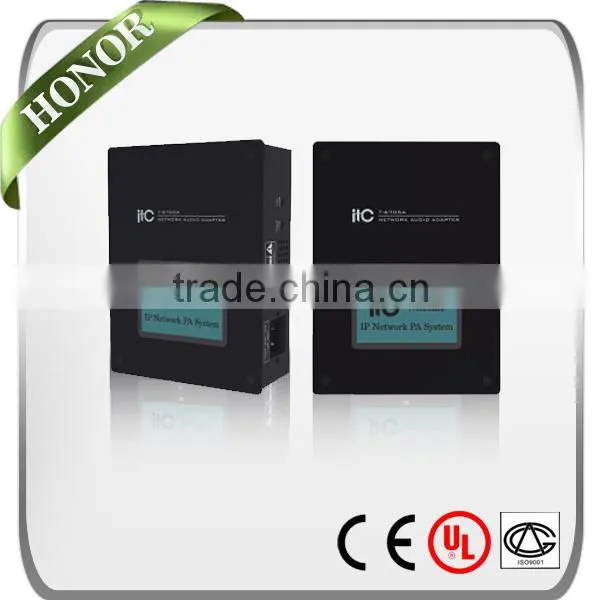

Appearance

ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier



 ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier

Connection

ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier



 ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier

Application

ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier



It’s suitable for normal classroom, multimedia classroom, office, conference room, etc where need program broadcast and local sound broadcast.

Feature

  ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier

  • It’s in rack mount design and its case is in material of brushed aluminum.
  • With LCD to display status and it’s with remote controller for music play.
  • It’s built in DSP and the start time is less than 1s.
  • With network audio codec module, which support protocol of TCP/IP, UDP and IGMP to achieve network transmission for 16 bit stereo audio in CD level.
  • With 2*10W(8 ohm) amplifier module.
  • 1 AUX output to connect post-class power amplifier.
  • 1 Mic input and 1 line input for local sound reinforce.
  • With circuit of audio processor to support multiple channel sound reinforce, audio mixer and priority management of 3 level.
  • Support the function of on-demand unicast in remote media base.
  • Support mute control.
  • Support PSTN phone broadcast and SMS voice broadcast.
  • Support on-demand unicast by mobile phone via WIFI and support IR remote controller.
  • Adopt unified authorization operation management system.
  • Support DHCP, and it’s adaptive to multiple network structure, such as router, network switcher, gateway bridge, internet, 2G, 3G, 4G, etc.
  • To imitate menu management of iOS.
  • With protection circuit for lightning.
  • 1 serial port connected to PC for changing the IP address.
  • It’s expandable, for it’s digital product and adopt concept of common network.
Specification

ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier



Model

T-6705A

Communication Port

Standard RJ45

Communication Protocol

TCP/IP, UDP, IGMP

Transmission Speed

100Mbps

Audio Mode

16 bit stereo audio in CD level

Output Frequency Range

80Hz~16KHz

T.H.D

≤1%

S/N Ratio

≥75dB

Output Impedance and power for external speaker

8Ω, 2 x 10W Industrial standard terminal by crimping

AUX Input Level

350mV

Line Output Level

1000mV

MIC Input Sensitivity

5mV

Working Temp.

5℃~40℃

Working Humidity

20%~80% Relative humidity, without dew

Power Consumption

≤35W

Power Supply

~110V/60Hz or ~230V/50Hz

Dimension

187 x 139 x 60mm

Weight

1.62Kg
