Suitable to be installed in Public Address System management room. Used to play broadcasts and do paging.

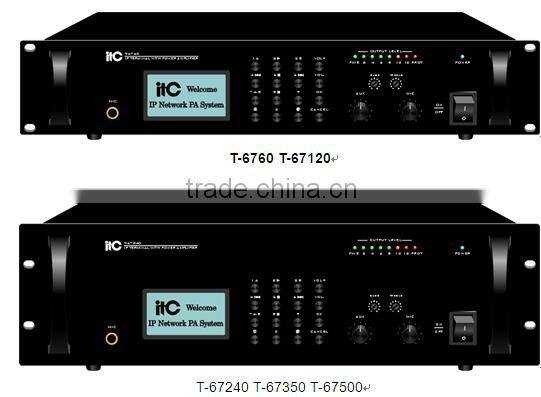

ITC T-6760 Series 60W/120W/240W/350W Zoning IP PA System Amplifier
- Standard rack mount design and it’s in brushed aluminum case.
- It’s with industrial LCD screen in 3.4 inch and it’s anti-IR interference.
- It’s built in DSP so that it could process information quickly and start up less than 1s.
- It’s built in codec module to process network audio and it supports multiple protocol including TCP/IP, UDP, IGMP, which achieve transmitting stereo audio in 16 bit in the network.
- It’s built in hifi analog amplifier(60W/120W/240W/350W/500W) with constant voltage output at 70V or 100V and constant impedance output at 4 to 16 ohm.
- With 1 AUX input and 1 Mic input with individual treble/bass control and volume control.
- With 1 EMC input with highest priority.
- With 1 AUX output to connect external power amplifier.
- With 1 3-wire forced switching output for volume control.
- Built in intelligent power management. When signal is input, it would be turned on automatically. Vice versa. And users could write program to control the power.
- With function to preset the mute depth and the background music.
- Support remotely unicast.
- Support DHCP and it’s compatible to multiple network structure including router, switcher, gateway bridge, moderm, intelnet, 2G, 3G, 4G, multicast, unicast, etc.
- Support at least 3 kinds of safe authorization IP configuration and its safety factor is higher than remote configuration of Web.
- With authorization operation management system.
- Support PSTN phone broadcast and SM voice broadcast.
- Support on demand unicast via Wifi and IR remote controller.
- Support spare line design for power supply at DC 24V
- With indicator to display status, level, protection, standby, etc.
- Support PC to modify its IP address via its serial port.
- This IP PA system adopt common network design so that the installation is convenient.
- Standby power is less than 3W.
ITC T-6760 Series 60W/120W/240W/350W Zoning IP PA System Amplifier
Model |
T-6760 |
T-67120 |
T-67240 |
T-67350 |
T-67500 |
|
Power Supply |
AC 220V |
|||||
Network Interface |
RJ45 |
|||||
Transmission Speed |
100Mbps |
|||||
Communication Protocol |
TCP/IP, UDP, IGMP |
|||||
Audio Format |
MP3/MP2 |
|||||
Audio Mode |
Stereo audio in 16 bit |
|||||
Sampling Rate |
8K~48KHz |
|||||
Bit Rate |
8K-512Kbps |
|||||
EMC Input Sensitivity |
775mV (Unbalance) |
|||||
AUX Input Sensitivity |
350mV (Unbalance) |
|||||
MIC Input Sensitivity |
5mV (Unbalance) |
|||||
Treble |
±10.5dB |
|||||
Bass |
±10.5dB |
|||||
S/N Ratio |
≥65dB |
|||||
THD |
≤1% |
|||||
Speaker Output |
70V, 100V & 4-16ohm |
|||||
Protection |
Short, over-heat, overload, etc |
|||||
Rated Power Output |
60W |
120W |
240W |
350W |
500W |
|
Power Consumption |
90W |
180W |
370W |
540W |
750W |
|
Working Temp. |
5℃~40℃ |
|||||
Standby Power |
<3W |
|||||
Humidity |
20%~80% |
|||||
Frequency Response |
60HZ-18KHZ +1/-3dB |
|||||
Power Supply |
~110V/60Hz or ~230V/50Hz |
|||||
Dimension |
484 x 303 x 88mm |
484 x 359 x 132mm |
||||
Weight |
8.02Kg |
9.70Kg |
13.66Kg |
15.52Kg |
18Kg |
|
