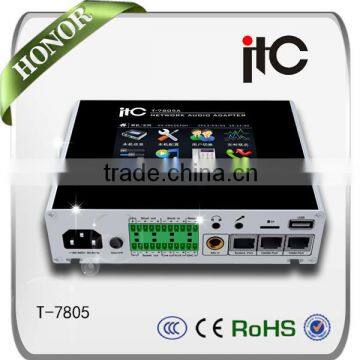

ITC T-7805 Luna Cloul Based IP Audio Decoder Public Address Terminal

ITC T-7805 Luna Cloul Based IP Audio Decoder Public Address Terminal photo-1
US$ 200 - 400 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ITC
Model Number:
T-7805
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ITC
Model Number T-7805
Application

Professional wall mount IP audio decoder; support power management; installed in weak electricity room, weak electricity chassis or anywhere need designated public address, such as guest room, classroom, etc; and it could be connected to external speakers.

Feature

1) Using 4.3” TFT touch-screen and GUI technique; support IR remote control;

2) Based on Luna cloud server; with excellent safety and stability; support continuously working 7x24 hours;

3) With 2Gbyte SSD; could be managed by remote server; support download in limited bandwidth and auto download in free time to decrease burden of the network; media library supports the function of offline auto playing;

4) Integrated with USB port to read and play media in the storage device whose capacity could be up to 4T; support public address in designated terminal or designated area;

5) With Micro SD(TF) port which support capacity up to 128G so that users have more choice;

6) With 2 network port to support exchange expansion mode and redundant backup mode and the speed is up to 100M;

7) Various network access method, including DHCP access, ADSL access, fixed IP address access, etc;

8) Built-in 24Bit professional sound card to realize hifi playing, and the audio stream is up to 768Kpbs;

9) With 1 Line input, 1 Mic input, 1 EMC input, built-in digital preamp, and the priority level could be customized by users; with 1 monitoring Mic input to realize self inspection of the equipment, working environment interception, examination for operators in charge, etc.

10) With 1 Line output to be connected with external power amplifier; with headset jack;

11) With 2 short input and 2 short output; flexible custom function; could realize short signal collection, alarm trigger, and the linkage with the third-party fire alarm or monitoring system;

12) Support the function of intelligent power saving and pre opening management;

13) With 1 button to restore factory settings;

14) With a group of RJ45 expansion port to match various control panel;

15) Support electric power and seamlessly switching backup poweModel

Technical Parameters
Model
T-7805
Power Supply
AC 190 to 240V/50Hz; DC 24V/1A
Network Interface
2 Groups of RJ45
Transmission Speed
1000Mbps/100Mbps/10Mbps
Protocol
TCP/IP, UDP, IGMP
Audio Format
MP3, WMA, WAV
Audio Type
16Bit Stereo Audio in CD level
Sampling Rate
8K to 48K
Bit Rate
8K to 768Kbps
AUX Input
2 Groups
Sensitivity of AUX
350mV
Mic Input
1 Group
Sensitivity of Mic Input
5mV
USB
Support Capacity of 4T; Load<0.1A
SD
Support up to 128G/SDXC
Power Consumption
35W
Power Consumption of Standby
<3W
Frequency Response
20Hz to 20KHz, ±1dB
T.H.D.
≤0.1%
S/N Ratio
≥65dB
Short Input
0V/3.3V, support dry contact input
Short Output
<3A/120V
Expansion Interface
RJ45 x1 Specified Device Connector
Working Temp.
5℃ to 40℃
Working Relative Humidity
20% to 80%, Non Condensing
Dimension
170x134x45mm
Weight
2.5Kg
