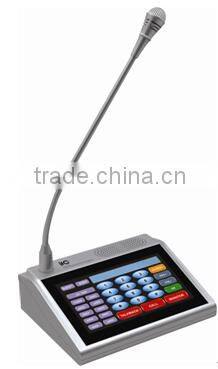

ITC T-6702 Built in IP Audio Encoder IP Paging System
ITC T-6702 Built in IP Audio Encoder IP Paging System
ITC T-6702 Built in IP Audio Encoder IP Paging System
1) With 7 inch touch-screen; When no one uses, it enters the sleep state automatically
2) With 2 hot-key, 1 is for designated partition and the other is for whole area; Users could do paging to any of the partitions via this; Support ambient monitoring
3) Using DSP to process audio signal; the boost time is less than 1s
4) Support multiple network structure, such as router, switcher, Internet, 3G, 4G, etc
5) Support remote on-demand broadcast
6) Support full duplex dialogue; with the module of echo cancelling; the delay is less than 300ms
7) Support the function of customized call transfer time, customized no one answering time and customized call waiting time
8) With 1 audio output for external power amplifier and 1 audio input for multiple audio sources
9) With fire signal receiver to trigger the whole system into programmable alarm mode
ITC T-6702 Built in IP Audio Encoder IP Paging System
Model |
T-6702A |
Network Interface |
RJ45 |
Network Protocol |
TCP/IP, UDP, IGMP |
Audio Format |
MP3/MP2 |
Sampling Rate |
8K to 48KHz |
Transmission Speed |
100Mbps |
Audio Mode |
CD Level Sound Quality in 16 bit |
Dimension of the Screen |
7 inch |
Resolution of the Screen |
800*480 Pixel |
Screen Type |
65K DGUS |
Button Type |
Virtual QWERTY |
Impedance and Rated Power of the Internal Speaker |
4 ohm, 2W |
T.H.D. |
≤1% |
Frequency Response |
80Hz to 16KHz +1dB/-3dB |
S/N Ratio |
>68dB |
Impedance and Rated Power of the Headset |
32 ohm, 20mW |
Level of Line Output |
1000mV |
Impedance of Line Output |
470 ohm |
Sensitivity of Line Input |
350mV |
Sensitivity of Mic Input (Unbalanced) |
10mV |
Working Temp. |
5℃ to 40℃ |
Working Humidity |
20% to 80% |
Power Consumption |
≤6W |
DC Power |
DC 24V |
Working DC Power Voltage |
DC 9V to 24.5V |
Dimension |
200*158*163mm |
NG |
1.2KG |
