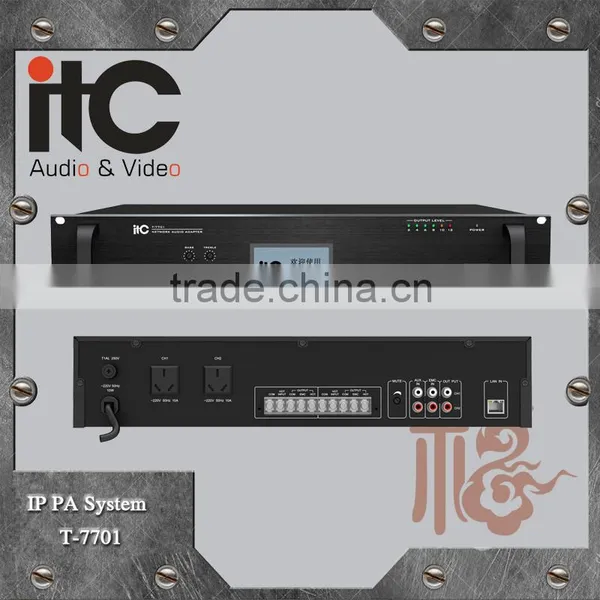

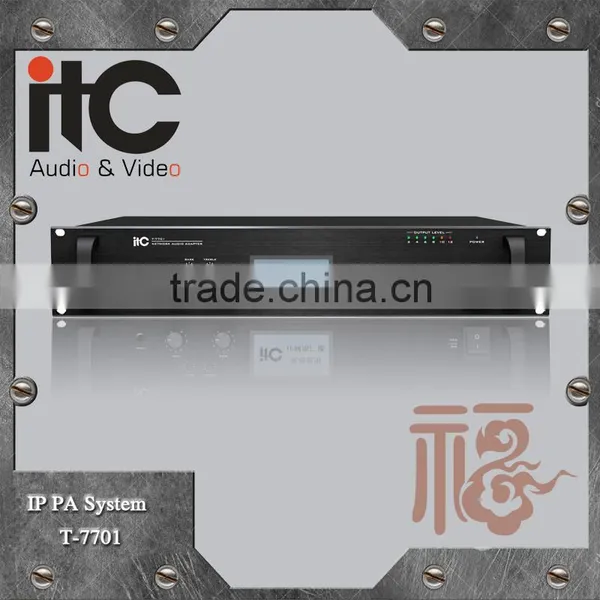

ITC T-7701 Economical Series IP Audio Decoder, IP Audio Broadcasting Terminal
ITC T-7701 Economical Series IP Audio Decoder, IP Audio Broadcasting Terminal
It could be installed in weak inter or sub-control room of public address management area. It could be connected to 2 sets of external power amplifier to do broadcast or local broadcast in multiple occasions, such as hall, passage, outdoor area, etc.
ITC T-7701 Economical Series IP Audio Decoder, IP Audio Broadcasting Terminal
1) In standard 19’’ rack design; the black panel is in the material of alumina; sturdy handle; professional mechanical assembly process; the appearance looks really upscale;
2) With industrial 3.4’’ LCD to display the working state;
3) Using technique of embedded MCU and DSP sound processing; high speed industrial level microcontroller; the boost time is less than 1s;
4) With internal 1 channel IP network audio decoder module, which supports protocol of TCP/IP, UDP, IGMP (Grouping Protocol) to realize 16 bit stereo audio transmission on IP network;
5) With 1 AUX and 1 Mic input; they have independent volume control and treble/bass control; support function of offline local paging;
6) With 1 EMC input, which has highest priority;
7) With 2 audio AUX output to connect external power amplifier; in type of standard RCA; the connection is really convenient;
8) 1 3-wire forced switching output, no need forced switching power; adaptive to 4-wire fire alarm forced switching output, which need external forced switching power at DC 24V;
9) With internal intelligent power management system; when no music signal or paging signal, the power of output is cut off automatically; when the signal input, it turns on the power of output according to the program written in the software;
10) Built-in 3 level priority setting:
11) EMC signal has the highest priority;
12) Mic, AUX and IP network music signal have the second priority;
13) The priority of Mic is higher than AUX and IP network music signal;
14) Support the pre-reduce function for the mute; support the preset function for the background music; with state indicators to display the electrical level, protection, standby, etc; support the function of authorized operation management and the account is set and managed by the server uniformly;
15) Support DHCP; adaptive to multiple network structure, such as router, switcher, bridge & gateway, modem, internet, 2G, 3G, 4G, grouping broadcasting, unicast, etc;
16) Using the design concept of common network; it’s easy to be expanded without geographical location limit and it could be installed conveniently.
ITC T-7701 Economical Series IP Audio Decoder, IP Audio Broadcasting Terminal
Model |
T-7701 |
Network Interface |
RJ45 |
Transmission Speed |
100Mbps |
Network Protocol |
TCP/IP, UDP, IGMP (Grouping Broadcasting) |
Audio Format |
MP3/MP2 |
Audio Type |
16 bit Stereo Audio in CD Level |
Sampling Rate |
8K to 48KHz |
Bit Rate |
8K to 512Kbps |
Sensitivity of EMC Input |
775mV (Unbalanced) |
Sensitivity of AUX Input |
350mV (Unbalanced) |
Sensitivity of Mic Input |
5mV (Unbalanced) |
Range of AUX Output |
1000mV Dual RCA Output |
Impedance of AUX Output |
470 ohm |
Treble |
±10.2dB |
Bass |
±10.2dB |
Frequency Response |
20Hz to 20KHz (-3dB, 0dB) |
Power Consumption |
10W |
T.H.D. |
≤1% |
S/N Ratio |
≥65dB |
Working Temperature |
5℃ to 40℃ |
Working Humidity |
20% to 80% Non Condensing |
Input Power |
AC 110V/60Hz to AC 230V/50HzD |
Dimension (mm |
484x303x88 |
Weight |
5.2Kg |
