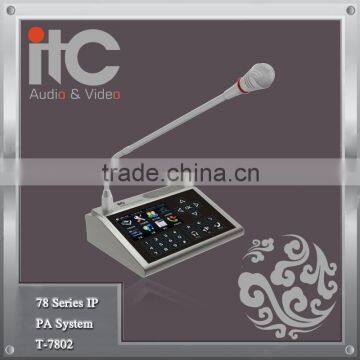

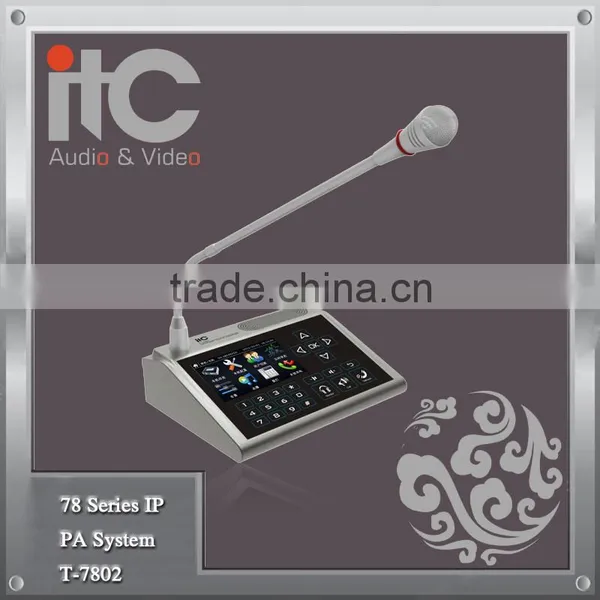

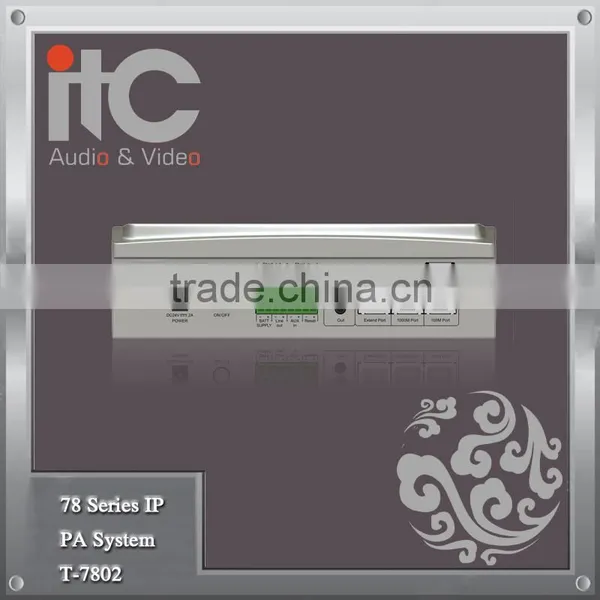

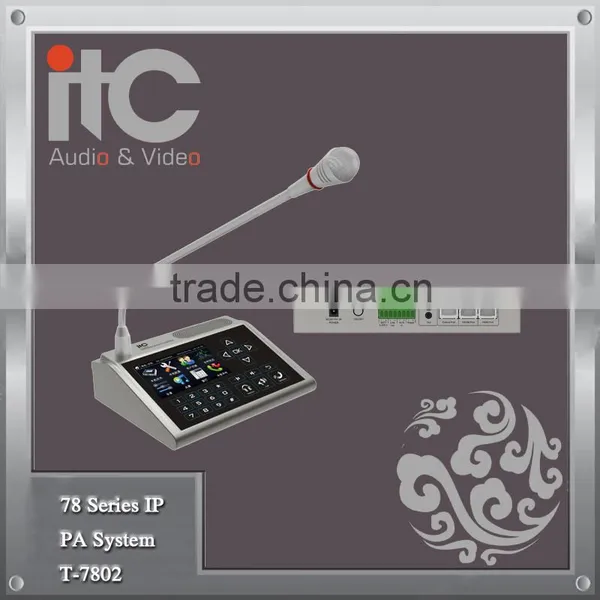

ITC T-7802 IP Desktop Paging Microphone PA

ITC T-7802 IP Desktop Paging Microphone PA thumbnail-1
ITC T-7802 IP Desktop Paging Microphone PA thumbnail-2
ITC T-7802 IP Desktop Paging Microphone PA thumbnail-3
ITC T-7802 IP Desktop Paging Microphone PA photo-1
ITC T-7802 IP Desktop Paging Microphone PA photo-2
ITC T-7802 IP Desktop Paging Microphone PA photo-3
US$ 300 - 600 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ITC
Model Number:
T-7802
Contact Supplier Request Quote Chat Now
Guangzhou ITC Electronic Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ITC
Model Number T-7802
Feature

1) Desktop design, new external appearance, 8-inch capacitive touch screen, upscale and stylish;
2) Using 4.3-inch liquid crystal true color touch screen that uses GUI and second-generation gorilla toughened glass;
3) With 2G storage space, support server remote administration, support limited bandwidth background downloads and idle period auto downloads to release the loan of the network, users could turn on the function of auto offline playback for files in media library;
4) With bell and light tips for the help and the intercom and in the meanwhile, it supports hands-free calls and receiving broadcast;
5) Support button custom, which could be configured as 1-touch monitor, 1-touch public address, 1-touch intercom, 1-touch background music, 1-touch for help, etc, to meet the various demand of users;
6) With USB port, support 4T SSD, with slot for Micro SD(TF), support 128G/SDXC card, for user-friendly audio program changing; terminal could order any other terminals within the purview to play audio files in USB, TF card and media library;
7) Dual power supply, with backup interface for DC 24V power, to support working of 7x24 hours.

Technical Parameters
Model
T-7802
Power Supply
AC 190～240V 50/60Hz; DC 24V/1A
Network Interface
2 Groups of RJ45
Transmission Speed
1000Mbps/100Mbps/10Mbps
Support Protocol
TCP/IP, UDP, IGMP(Grouping Broadcast)
Audio Format
MP3, WMA, WAV
Audio Type
16 Bit Stereo Sound in CD Level
Sampling Rate
8K to 48K
Bit Rate
8K to 768Kbps
AUX Input
1 Group
AUX Sensitivity
350mV
Mic Input
1 Group
Mic Sensitivity
5mV
USB
Support USB Storage Device of Up to 4T, Load<0.1A
SD
Support SDXC of Up to 128G
Power Consumption
20W
Standby Power Consumption
＜3W
Frequency Response
20Hz to 20KHz ±1dB
THD
≤0.1%
SNR
≥65dB
Short Input
0V/3.3V，Support dry contact input
Short Output
<3A/120V
Extension Interface
1xRJ45 Special Device Interface
Working Temp.
5℃～40℃
Working Relative Humidity
20%～80% no condensing
Dimension
200×159×55mm
Weight
2Kg
