Home > Consumer Electronics > Audio & Sets > Microphone > ITC T-7802U IP Network Linux Based GUI Zone Paging Microphone PA

ITC T-7802U IP Network Linux Based GUI Zone Paging Microphone PA

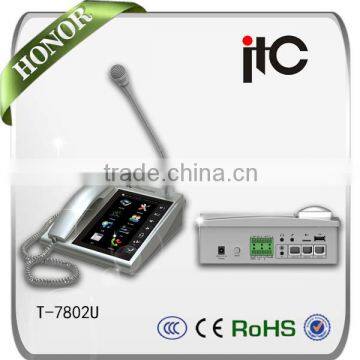

ITC T-7802U IP Network Linux Based GUI Zone Paging Microphone PA photo-1

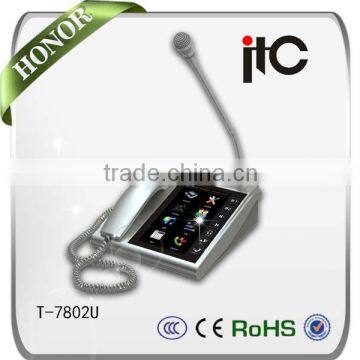

ITC T-7802U IP Network Linux Based GUI Zone Paging Microphone PA photo-2

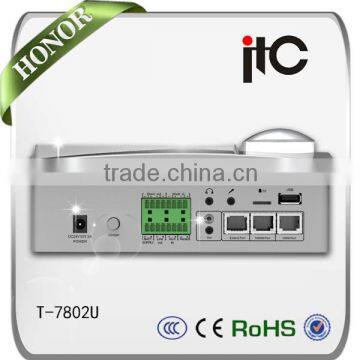

ITC T-7802U IP Network Linux Based GUI Zone Paging Microphone PA photo-3
US$ 200 - 600 MOQ: 10 Units
Key Specifications
Get Latest Price
Brand Name:
ITC
Model Number:
T-7802U
Style:
Gooseneck Microphone
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ITC
Model Number T-7802U
Style Gooseneck Microphone
Communication Wired
Use Other, Public Address
Place of Origin Guangdong, China


Installed in central control room, duty room or office; users could play program, do business paging, intercom and do monitoring via it.



1) Desktop design; stylish appearance; with 7"  TFT touch-screen; GUI;


2) Based on Luna cloud server; with excellent safety and stability; support continuously working 7x24 hours;


3) With the function of terminal management; could check the current task and working state;


4) Users could call via both the handheld mic and gooseneck mic;

5) Support various prompt, including help, voice number, light, text, etc; support multiple function, including, 1 key response, hands-free calls and missed call recording;

6) Support the function of custom buttons to meet the demand of various users; could be set as monitoring hot-key, public address hot-key, intercom hot-key, conference hot-key, music playing hot-key, help hot-key, etc;

7) With 2Gbyte SSD; could be managed by remote server; support download in limited bandwidth and auto download in free time to decrease burden of the network; media library supports the function of offline auto playing;

8) Integrated with USB port to read and play media in the storage device whose capacity could be up to 4T; support public address in designated terminal or designated area;

9) With Micro SD(TF) port which support capacity up to 128G so that users have more choice;

10) With 2 network port to support exchange expansion mode and redundant backup mode and the speed is up to 100M;

11) Various network access method, including DHCP access, ADSL access, fixed IP address access, etc;

12) Built-in 24Bit professional sound card to realize hifi playing, and the audio stream is up to 768 Kpbs;

13) With 1 Line input, 1 Mic input, built-in digital preamp, and the priority level could be customized by users;

14) With 1 Line output to be connected with external power amplifier; with headset jack;

15) With 2 short input and 2 short output; flexible custom function; could realize short signal collection, alarm trigger, and the linkage with the third-party fire alarm or monitoring system;

16) With 1 button to restore factory settings;

17) With a group of RJ45 expansion port to match various control panel;

18) Support electric power and seamlessly switching backup power at DC 24V.


Model
T-7802U
Power Supply
AC 190 to 240V/50Hz; DC 24V/1A
Network Interface
2 Groups of RJ45
Transmission Speed
1000Mbps/100Mbps/10Mbps
Protocol
TCP/IP, UDP, IGMP
Audio Format
MP3, WMA, WAV
Audio Type
16Bit Stereo Audio in CD level
Sampling Rate
8K to 48K
Bit Rate
8K to 768Kbps
AUX Input
1 Group
Sensitivity of AUX
350mV
Mic Input
1 Group
Sensitivity of Mic Input
5mV
USB
Support Capacity of 4T; Load<0.1A
SD
Support up to 128G/SDXC
Power Consumption
20W
Power Consumption of Standby
<3W
Frequency Response
20Hz to 20KHz, ±1dB
T.H.D.
≤0.1%
S/N Ratio
≥65dB
Short Input
0V/3.3V, support dry contact input
Short Output
<3A/120V
Expansion Interface
RJ45 x1 Specified Device Connector
Working Temp.
5℃ to 40℃
Working Relative Humidity
20% to 80%, Non Condensing
Dimension
200x159x55mm
Weight
2Kg
