ITC T-7807 Internal Professional Sound Card Various Input TCP IP Speaker PA
ITC T-7807 Internal Professional Sound Card Various Input TCP IP Speaker PA
ITC T-7807 Internal Professional Sound Card Various Input TCP IP Speaker PA

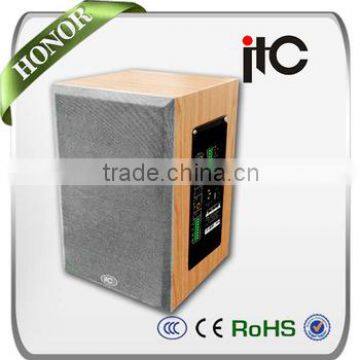

It’s all-in-one IP speaker. It’s with the module of IP audio decoder, digital stereo amplifier at constant impedance and hi-fi speaker. And it’s suitable for the designated-point play rooms, classrooms, hotel rooms, etc.
ITC T-7807 Internal Professional Sound Card Various Input TCP IP Speaker PA
1) All-in-one wall mount design; stylish appearance
2) It’s based in cloud-based platform of Luna; the security and the stability are excellent; support continuous work of 7 x24 hours
3) With internal SSD of 2G; support remotely managing; support background download in limited bandwidth or download in free time in order to reduce network burden; support the function of offline auto playing from the media library
4) With 2 network interface; support the modes of expansion via switcher and redundant backup; the speed is up to 1000M
5) Various access method for network, Including DHCP, ADSL, fixed IP, etc
6) Integrated with sound card in 24 Bit; to realize audio playing in Hi-fi level; the audio data streaming is up to 768Kpbs
7) With 1 Line input, 1 Mic input, and 1 EMC input; with internal digital preamplifier; support user-customized priority
8) With 1 Line output to connect external amplifier devices
9) Support intelligent power-saved and preopen management to ensure reliable and energy-saving working of the device
10) With 1 button to reset
11) With a group of RJ45 expansion port to achieve expansion of functions and operation
12) Support 2 kinds of power supply: city power and backup power at DC 24V
ITC T-7807 Internal Professional Sound Card Various Input TCP IP Speaker PA
Model |
T-7807 |
Power Supply |
AC 180 to 260V of 50Hz; DC 24V at 1A |
Network Interface |
2 Groups of RJ45 |
Transmission Speed |
1000Mbps/100Mbps/10Mbps |
Protocol |
TCP/IP, UDP, IGMP |
Audio Format |
MP3, WMA, WAV |
Audio Type |
CD Level Stereo Sound in 16 Bit |
Sampling Rate |
8K to 48K |
Bit Rate |
8K to 768Kbps |
AUX Input |
2 Groups |
Sensitivity of AUX |
350mV |
Mic Input |
1 Group |
Sensitivity of Mic |
5mV |
Power Consumption |
50W |
Power Consumption of Standby |
<3W |
Frequency Response |
20Hz to 20KHz ±1dB |
T.H.D. |
≤0.1% |
S/N Ratio |
≥65dB |
Short Input |
0V/3.3V |
Short Output |
<3A at 120V |
Expansion Interface |
1 RJ45 |
Protection Function |
Overload, over-heat, short, etc |
Load of Power Output |
<5KVA at 220V |
Working Temp. |
5℃~40℃ |
Working Relative Humidity |
20% to 80% |
Dimension |
245*162*182mm |
Weight |
2.5Kg |
