Specifications
For each eight zone' s volume adjustment at a remote and different location from the control center.ITC T-8000 Series Audio Remote Volume Control for PA System

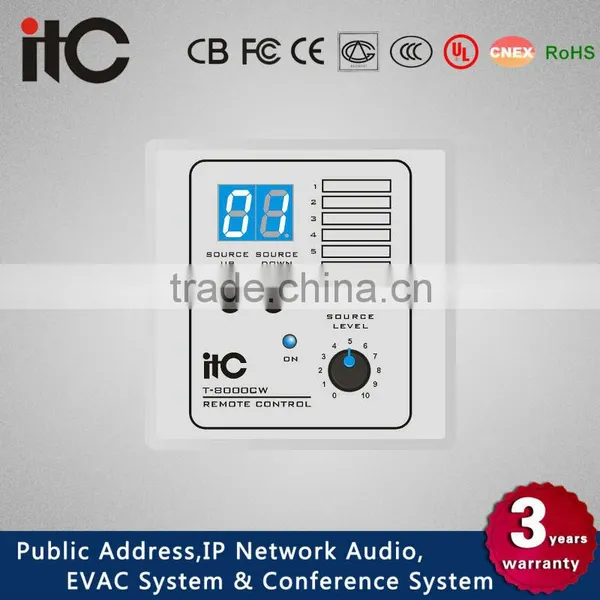

ITC T-8000 Series Audio Remote Volume Control for PA System
* The T-8000C remote control module is connected with T-8000 through universal industrial standard CAT 5 for each eight zone' s volume adjustment at a remote and different location from the control center.
* Each controller provides eight RJ45 ports for the remote control module.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
* The remote control module family also has higher functional module of T-8000A and microphone module of T-8000D.
* Zone LED indicator with up/down buttons.
* Volume control is provided for overall output level control.
* DC 24V power supply from controller, low power consumption 5W.
* Analog to digital conversion working principle to adjust controller' s volume.
ITC T-8000 Series Audio Remote Volume Control for PA System
Model |
T-8000C / T-8000CW |
Serial Communication Speed |
4800bps |
Serial Communication Distance |
Maximum 1Km |
Communication Port |
RJ45 |
Communication Protocol |
RS485 |
Controls |
Volume control |
Power Supply |
DC 24V |
Power Consumption |
5W |
Weight |
300g |
Dimensions |
86x48x86mm |
