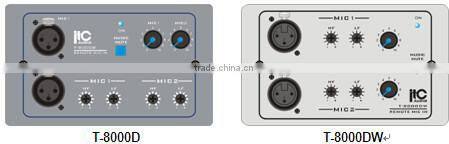

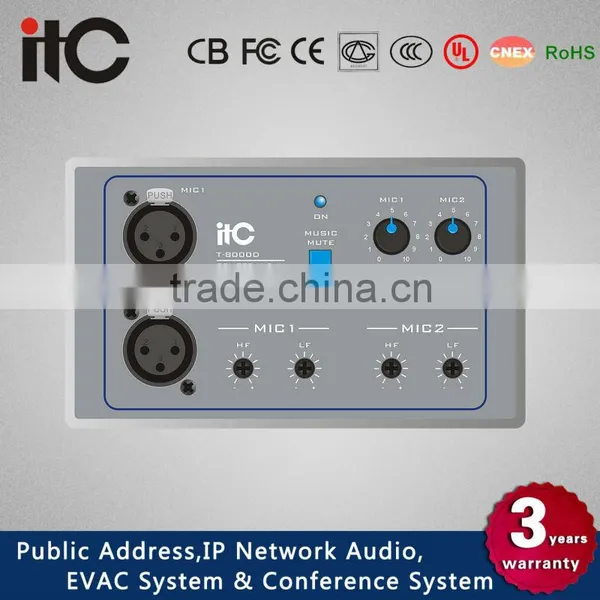

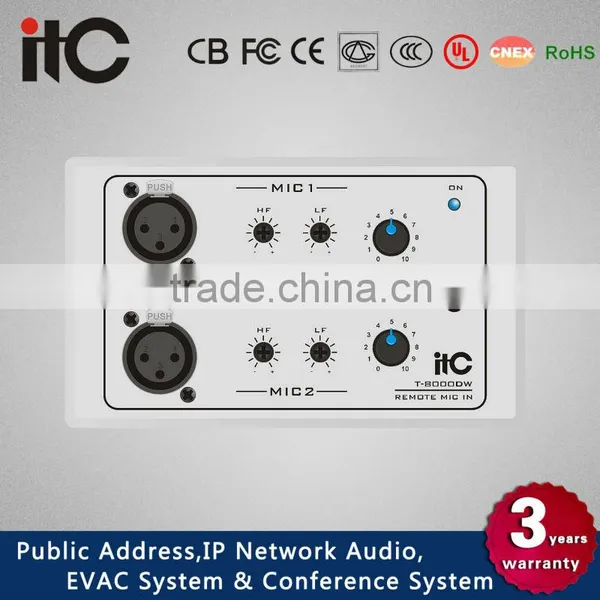

ITC T-8000 Series Remote Audio Source Selector with Mic Input
ITC T-8000 Series Remote Audio Source Selector with Mic Input
ITC T-8000 Series Remote Audio Source Selector with Mic Input
* The T-8000D remote microphone input module is connected with T-8000 through universal industrial standard CAT 5 where a remote location announcement is needed.
* Each controller provides eight RJ45 ports for the remote module.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
* The remote module family also has T-8000B and T-8000C.
* Two remote mic by XLR inputs with volume control and bass, treble tone contros.
* A paging priority override music button is provided when a remote paging is needed.
* DC 24V power supply from controller, low power consumption 5W.
* Analog to digital conversion working principle to adjust controller’s volume.
ITC T-8000 Series Remote Audio Source Selector with Mic Input
Model |
T-8000D |
Serial Communication Speed |
4800bps |
Serial Communication Distance |
Maximums 1Km |
MIC Input Sensitivity |
5mV/600Ω |
Audio output |
0dB/600Ω |
Frequency Response |
100Hz~18KHz (±1dB) |
S/N Ratio |
MIC Better than 65dB |
THD |
Less than 0.1% at 1KHz |
Controls |
Volume control |
Power Supply |
DC 24V |
Power Consumption |
5W |
Weight |
150g |
Dimensions |
86x146x33mm |
