Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 25w Meanwell Constant Voltage Led Driver APV-25-5/APV-25-12/APV-25-15/APV-25-24/APV-25-36

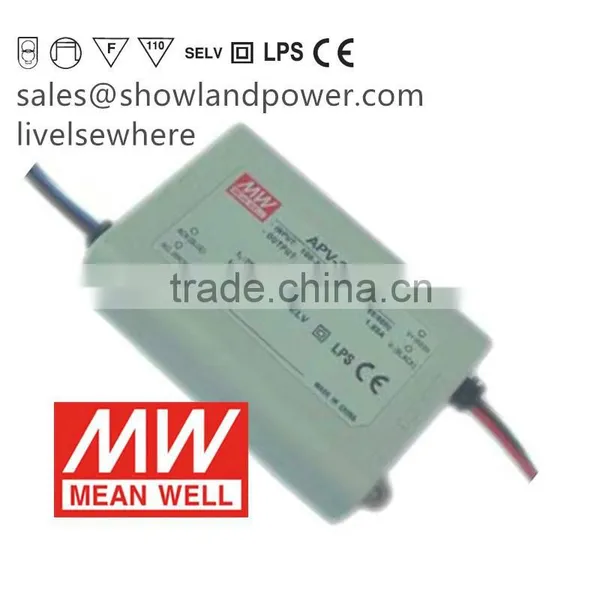

25w Meanwell Constant Voltage Led Driver APV-25-5/APV-25-12/APV-25-15/APV-25-24/APV-25-36

Name: 25w Meanwell Constant Voltage Led Driver APV-25-5/APV-25-12/APV-25-15/APV-25-24/APV-25-36
Brand: MEAN WELL
SKU: 114848957

25w Meanwell Constant Voltage Led Driver APV-25-5/APV-25-12/APV-25-15/APV-25-24/APV-25-36 thumbnail-1

25w Meanwell Constant Voltage Led Driver APV-25-5/APV-25-12/APV-25-15/APV-25-24/APV-25-36 photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

MEAN WELL

Model Number:

APV-25-5/APV-25-12/APV-25-15/APV-25//APV-25-36

Contact Supplier Request Quote Chat Now

Hangzhou Gunan Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name MEAN WELL

Model Number APV-25-5/APV-25-12/APV-25-15/APV-25//APV-25-36

Output Power Other, 25W

Output Type Single

Input Voltage Other, 90~264VAC 127~370VDC

Output Voltage 5V/12V/15V/24V/36V

Output Frequency 47~63Hz

Output Current 0-3.5A

Features:
* Constant voltage mode power supply
*  Universal AC input / Full range
*  Protections: Short circuit / Over current / Over voltage
*  Fully isolated plastic case
*  Cooling by free air convection
*  Small and compact size
*  Pass LPS
*  100% full load burn-in test
*  Low cost, high reliability
*  Suitable for LED lighting and moving sign applications
*  2 years warranty

Specifications:

MODEL		APV-25-5	APV-25-12		APV-25-15		APV-25-24
OUTPUT	DC VOLTAGE	5V	12V		15V		24V
	CURRENT RANGE	4A	2.1A		1.67A		1.05A
	RATED CURRENT	0~4A	0~2.1A		0~1.67A		0-1.05A
	RATED POWER	25W	25W		25W		25W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	120mVp-p		120mVp-p		150mVp-p
	VOLTAGE TOLERANCE Note.3	5.0%
	LINE REGULATION	1.0%
	LOAD REGULATION	2.0%
	SETUP, RISE TIME	1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
	HOLD UP TIME (Typ.)	20ms/230VAC 15ms/115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	76%		79%		80%	82%
	AC CURRENT (Typ.)	0.3A/230VAC 0.5A/115VAC
	INRUSH CURRENT (Typ.)	COLD START 35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	0.25mA / 240VAC
PROTECTION	OVER CURRENT	Above 105% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75 ~ 6.75V		13.8 ~ 16V		17.5 ~ 21V	28 ~ 32V
		Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT	WORKING TEMP.	-30 ~ +70 (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80 , 10 ~ 95% RH
	TEMP. COEFFICIENT	0.03%/ (0 ~ 50 )
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC(Note 4)	SAFETY STANDARDS	Design refer to TUV EN60950-1, EN61347-2-13,UL8750
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH
	EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B,EN55015,EN61547
	HARMONIC CURRENT	Compliance to EN61000-3-2 Class A, EN61000-3-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level(surge 2KV), criteria A
OTHERS	MTBF	Khrs min. MIL-HDBK-217F (25 )
	DIMENSION	845729.5mm (LWH)
	PACKING	0.13Kg; 72pcs / 10.4Kg / 0.92CUFT
