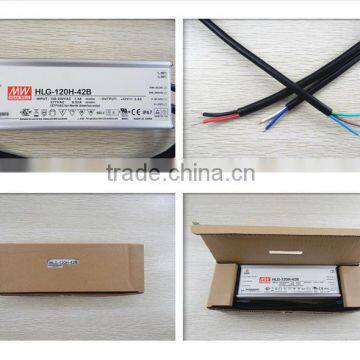

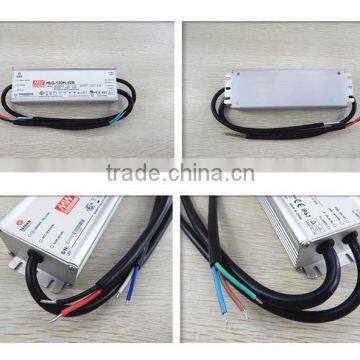

Mean Well HLG-120H Aluminum Led Driver,Power Supply SMPS

Name: Mean Well HLG-120H Aluminum Led Driver,Power Supply SMPS
Brand: MEAN WELL
SKU: 114849049
Availability: InStock

US$ 1.00 - 1.00 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MEAN WELL

Model Number:

HLG-120H-12/ 20 / 24 /30 / 36 / 42 /42/48 /54A/B/D/Blank Type

Hangzhou Gunan Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MEAN WELL

Model Number HLG-120H-12/ 20 / 24 /30 / 36 / 42 /42/48 /54A/B/D/Blank Type

Output Power Other, 0-120W

Output Type Single

Input Voltage Other, 90-305VAC

Output Voltage 12V/15V/20V/24V/30V/36/42V/48V/54V

Output Frequency 47~63Hz

Output Current 0-54A

Features:

* Universal AC input / Full range (up to 305VAC)

* Built-in active PFC function

* High efficiency up to 93.5%

* Protections: Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* OCP point adjustable through output cable .or internal potential meter

* IP67 / IP65 design for indoor .or outdoor installations

* Three in one dimming function (1~10Vdc .or PWM signal .or resistor) Suitable for LED lighting and street lighting applications

* Compliance to worldwide safety regulations for lighting

* Suitable for dry / damp / wet locations

* 5 years warranty

Specifications:

MODEL		HLG-120H-12	HLG-120H-15	HLG-120H-20	HLG-120H-24	HLG-120H-30	HLG-120H-36	HLG-120H-42	HLG-120H-48	HLG-120H-54
OUTPUT	DC VOLTAGE	12V	15V	20V	24V	30V	36V	42V	48V	54V
	C&C REGION	6 ~12V	7.5 ~ 15V	10 ~ 20V	12 ~ 24V	15 ~ 30V	18 ~ 36V	21 ~ 42V	24 ~ 48V	27 ~ 54V
	RATED CURRENT	10A	8A	6A	5A	4A	3.4A	2.9A	2.5A	2.3A
	RATED POWER	120W	120W	120W	120W	120W	122.4W	121.8W	120W	124.2W
	RIPPLE & NOISE	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	200mVp-p	200mVp-p	200mVp-p	200mVp-p
	VOLTAGE ADJ.	10.8~ 13.5V	13.5~ 17V	17 ~ 22V	22 ~ 27V	27 ~ 33V	33 ~ 40V	38 ~ 46V	43 ~ 53V	49 ~ 58V
	CURRENT ADJ.	Can be adjusted by internal potential meter .or through output cable
	CURRENT ADJ.	5 ~ 10A	4 ~ 8A	3 ~ 6A	2.5 ~ 5A	2 ~ 4A	1.7 ~ 3.4A	1.4 ~ 2.9A	1.2 ~ 2.5A	1.1 ~ 2.3A
	VOLTAGE TOLERANCE	2.5%	2.0%	1.0%	1.0%	1.0%	1.0%	1.0%	1.0%	1.0%
	LINE REGULATION	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
	LOAD REGULATION	2.0%	1.5%	0.5.0%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
	SETUP RISE TIME	2500ms, 50ms at full load 230VAC / 115VAC ; B type 2500ms, 200ms at 95% load 230VAC / 115VAC
	HOLD UP TIME	12ms at full load 230VAC / 115VAC
INPUT	VOLTAGE RANGE	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY	47 ~ 63Hz
	POWER FACTOR	PF 0.95/230VAC PF 0.98/115VAC at full load and rated output voltage PF 0.9 at 50 ~ 100% load
	EFFICIENCY	92%	92%	93%	93%	93%	93%	93%	93.5%	93.5%
	AC CURRENT	1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC
	INRUSH CURRENT	COLD START 75A/230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC m
OTHERS	MTBF	192.2Khrs min. MIL-HDBK-217F (25 )
	DIMENSION	2206838.8mm (LWH)
	PACKING	1.12Kg; 12pcs/14.4Kg/0.76CUFT
