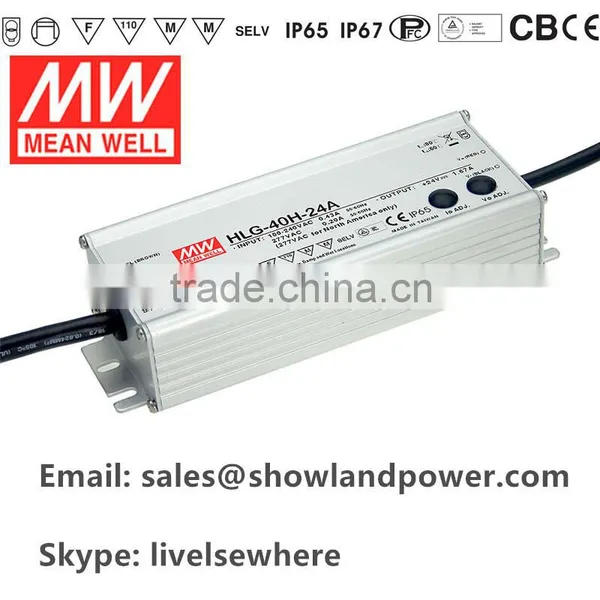

HLG-40H 40W Meanwell Power Supply Adjustable Dimming Driver for Park Lighting

HLG-40H 40W Meanwell Power Supply Adjustable Dimming Driver for Park Lighting thumbnail-1
HLG-40H 40W Meanwell Power Supply Adjustable Dimming Driver for Park Lighting thumbnail-2
HLG-40H 40W Meanwell Power Supply Adjustable Dimming Driver for Park Lighting thumbnail-3
HLG-40H 40W Meanwell Power Supply Adjustable Dimming Driver for Park Lighting photo-1

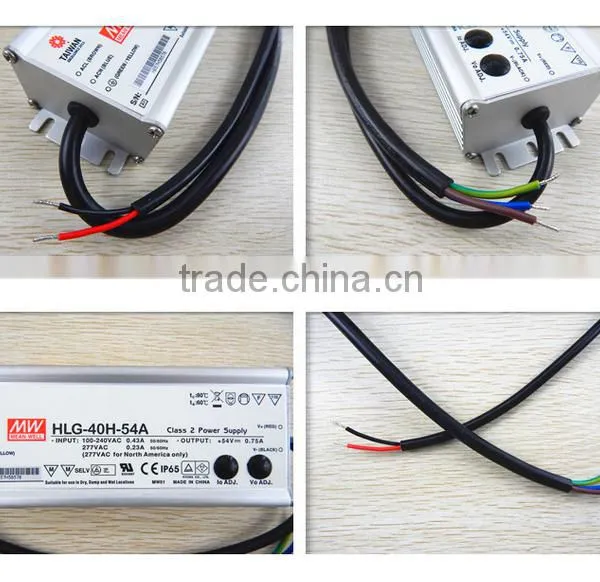

HLG-40H 40W Meanwell Power Supply Adjustable Dimming Driver for Park Lighting photo-2

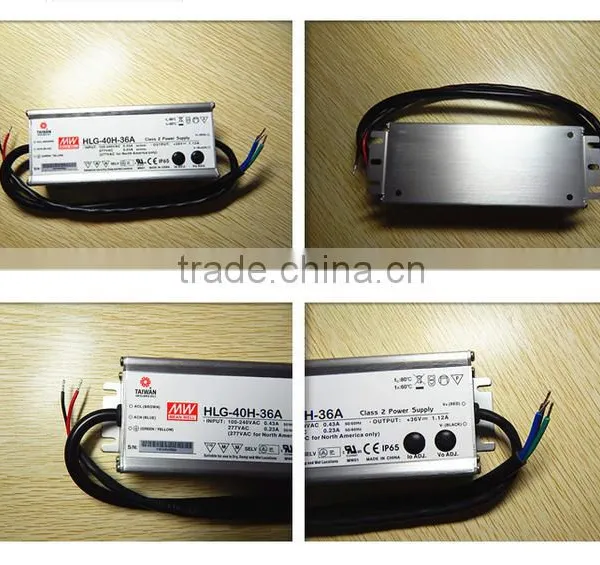

HLG-40H 40W Meanwell Power Supply Adjustable Dimming Driver for Park Lighting photo-3
US$ 1.00 - 1.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MEAN WELL
Model Number:
HLG-40H-12/15/20/24/30/36/42/48/54 A/B/D/Blank Type
Contact Supplier Request Quote Chat Now
Hangzhou Gunan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MEAN WELL
Model Number HLG-40H-12/15/20/24/30/36/42/48/54 A/B/D/Blank Type
Output Power Other, 0-40W
Output Type Single
Input Voltage Other, 90-305VAC
Output Voltage 5V/12V/15V/24V/36/48V
Output Frequency 47~63Hz
Output Current 0-12A

HLG-40H 40W Meanwell power supply adjustable dimming driver for park lighting

Features:
*  Universal AC input / Full range (up to 305VAC)
*  Built-in active PFC function
*  Protections: Short circuit / Overload / Over voltage / Over temperature
*  Cooling by free air convection
*  OCP point adjustable through output cable .or internal potential meter
*  IP67 / IP65 design for indoor .or outdoor installations
*  Three in one dimming function (1~10Vdc .or PWM signal .or resistance)
*  Suitable for LED lighting and moving sign applications
*  Compliance to worldwide safety regulations for lighting
*  Suitable for dry / damp / wet location .or outdoor application
*  5 years warranty


Specifications:

MODEL

HLG-40H-12

HLG-40H-15

HLG-40H-20

HLG-40H-24

HLG-40H-30

HLG-40H-36

HLG-40H-42

HLG-40H-48

HLG-40H-54

OUTPUT

DC VOLTAGE

12V

15V

20V

24V

30V

36V

42V

48V

54V

C&C REGION

7.2 ~12V

9 ~ 15V

12 ~ 20V

14.4 ~ 24V

18 ~ 30V

21.6~ 36V

25.2~ 42V

28.8~ 48V

32.4~ 54V

RATED CURRENT

3.33A

2.67A

2A

1.67A

1.34A

1.12A

0.96A

0.84A

0.75A

RATED POWER

39.96W

40.05W

40W

40.08W

40.2W

40.32W

40.32W

40.32W

40.5W

RIPPLE & NOISE

150mVp-p

150mVp-p

150mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

300mVp-p

300mVp-p

VOLTAGE ADJ.

10.8~
13.5V

13.5~ 17V

17 ~ 22V

22 ~ 27V

27 ~ 33V

33 ~ 40V

38 ~ 46V

43 ~ 53V

49 ~ 58V





CURRENT ADJ.

Can be adjusted by internal potential meter .or through output cable

2 ~ 3.33A

1.6 ~ 2.67A

1.2 ~ 2A

1~ 1.67A

0.8~
1.34A

0.67~
1.12A

0.58~
0.96A

0.5~
0.84A

0.45~
0.75A

VOLTAGE TOLERANCE

2.5%

2.0%

1.0%

1.0%

1.0%

1.0%

1.0%

1.0%

1.0%

LINE REGULATION

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

LOAD REGULATION

2.0%

1.5%

1.0%

0.5%

0.5%

0.5%

0.5%

0.5%

0.5%

SETUP, RISE TIME

1500ms, 80ms / 115VAC at full load 1000ms, 80ms / 230VAC at full load

HOLD UP TIME

16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE

90 ~ 305VAC 127 ~ 431VDC

FREQUENCY

47 ~ 63Hz

POWER FACTOR

PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)

EFFICIENCY

87%

87%

88.5%

88.5%

89%

89%

90%

90%

90%

AC CURRENT

0.43A / 115VAC   0.24A / 230VAC   0.23A / 277VAC

INRUSH CURRENT

COLD START 70A/230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC m

OTHERS

MTBF

336.5Khrs min.      MIL-HDBK-217F (25 )

DIMENSION

171*61.5*36.8mm (L*W*H)

PACKING

0.73Kg; 20pcs/15.6Kg/0.8CUFT
