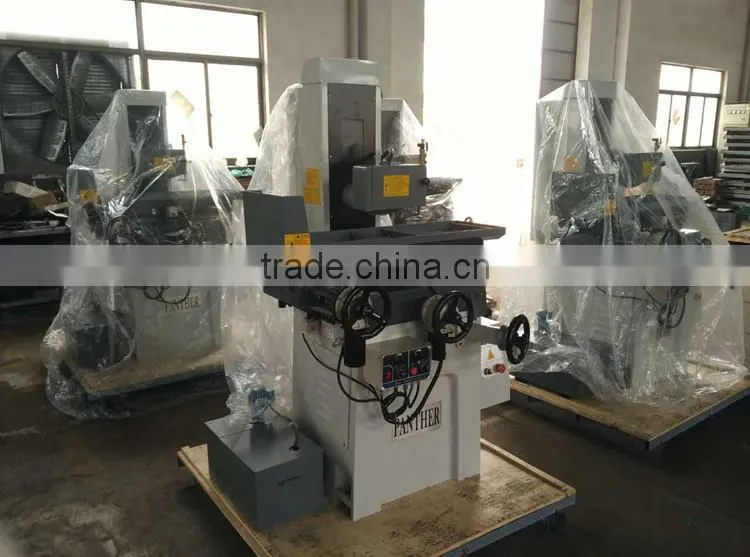

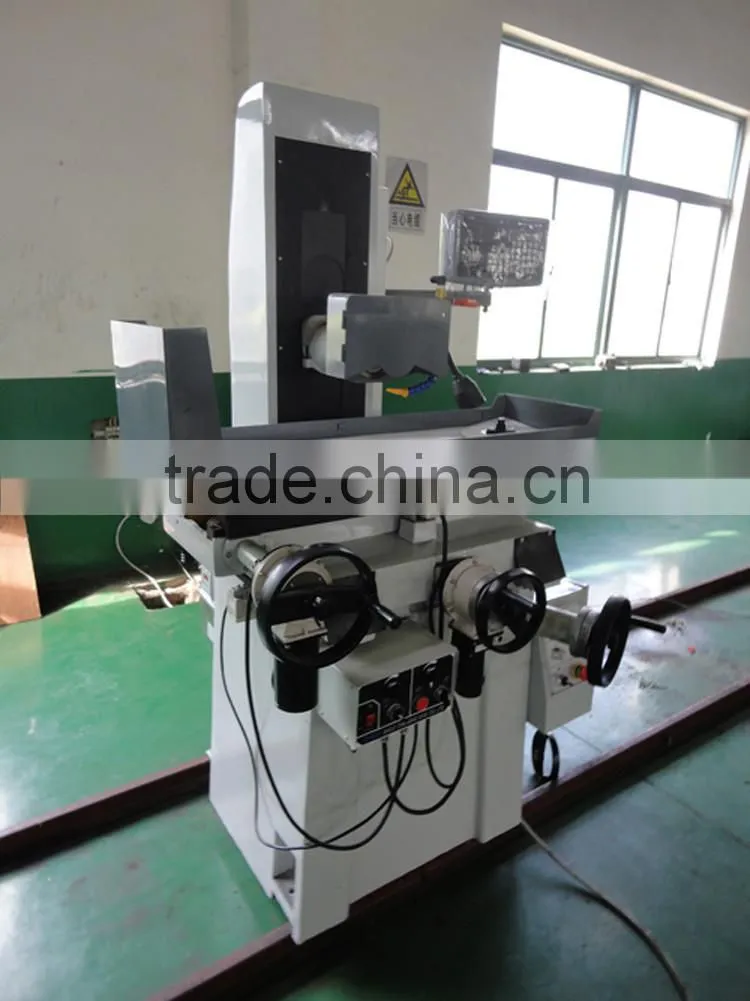

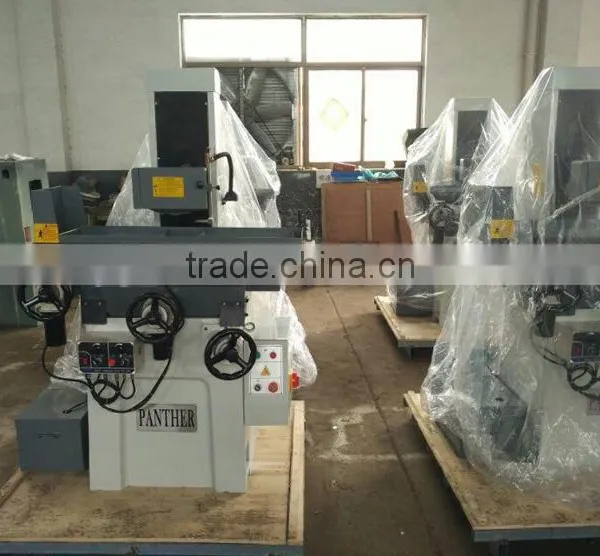

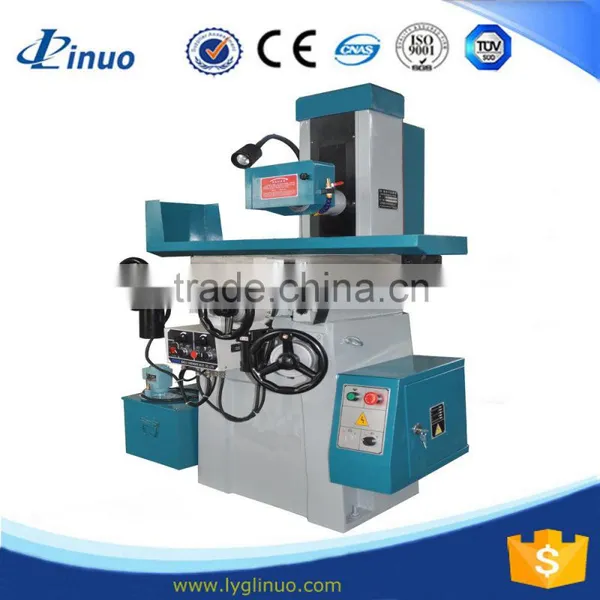

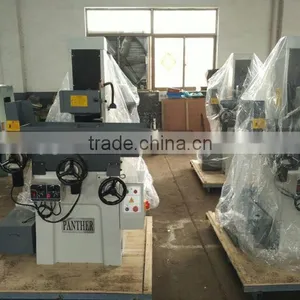

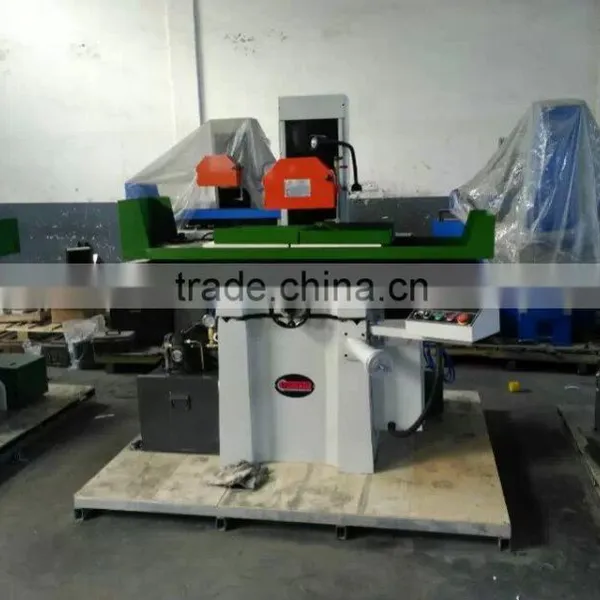

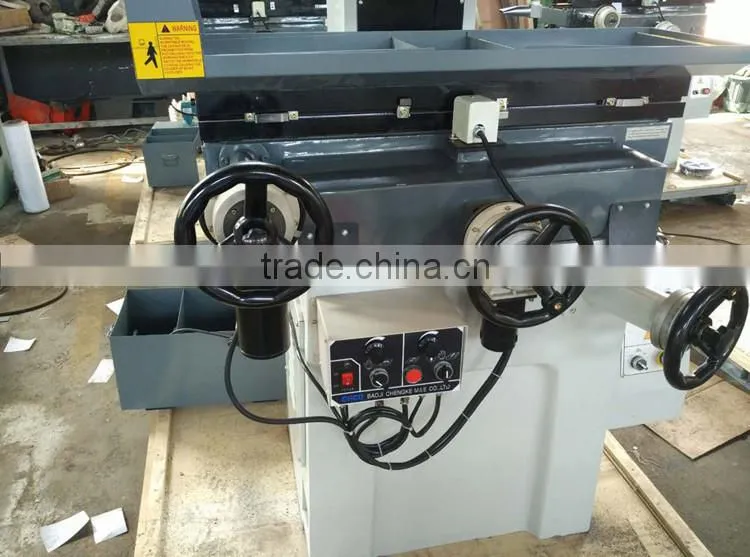

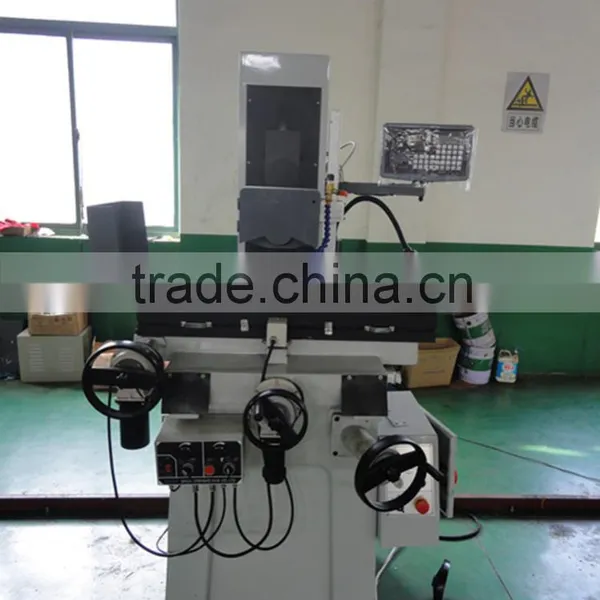

kent mini surface grinding machine
Product Description for kent mini surface grinding machine
Features :
Technical Parameters |
Units |
MD618A |
MD820 |
MD1022 |
|
piece to be Ground |
Mm |
500×190×335 |
520×220×490 |
560×250×490 |
|
Max. Grinding Length |
Mm |
500 |
530 |
560 |
|
Max. Grinding Width |
Mm |
190 |
220 |
250 |
|
Distance From Table Surface To Spindle Center |
Mm |
335 |
450 |
490 |
|
Slide way |
|
V-type rail with Steel-ball |
V-type rail with Steel-ball |
V-type rail with Steel-ball |
|
V-type rail with Steel-ball |
Kg |
200 |
200 |
250 |
|
Table Size (L×W) |
Mm |
460×180 |
480×200 |
500×250 |
|
Number of T -Slot |
Mm*n |
14×1 |
14×1 |
14×1 |
|
Cross Feed On Handwheel |
Mm |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
|
Vertical Feed On Handwheel |
Mm |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution |
|
Wheel Size (dia.×width×bore ) |
Mm |
180×13×31.75 |
200×20×31.75 |
200×20×31.75 |
|
Spindle Speeds |
50Hz |
rpm |
2850 |
2850 |
2850 |
|
0-6000 |
0-6000 |
0-6000 |
||
Spindle Motor |
kw |
1.1 |
1.5 |
1.5 |
|
Coolant Pump |
kw |
0.4 |
0.4 |
0.4 |
|
Machine Size (L×W×H) |
mm |
1000×1060×1590 |
1680×1140×1760 |
1200×1340×1800 |
|
Packing Size (L×W×H) |
mm |
1240*1080*1680 |
1260*1140*1760 |
1260*1250*1880 |
|
Gross,Net |
T |
0.75,0.65 |
0.85,0.75 |
1.1,1.0 |
|

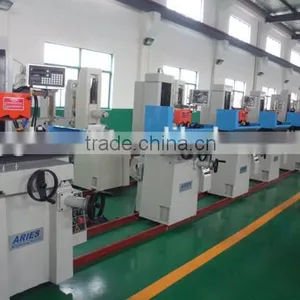

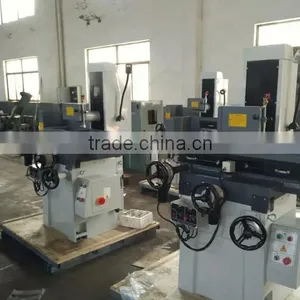

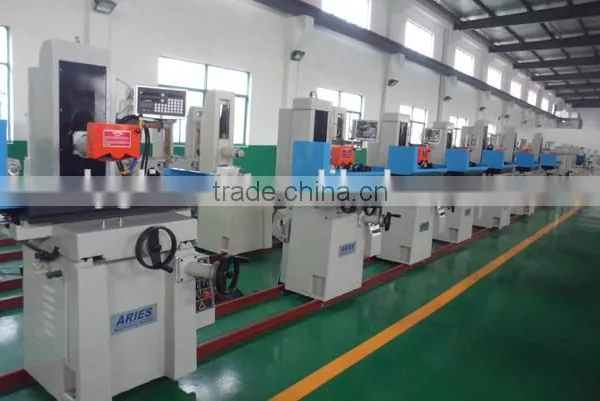

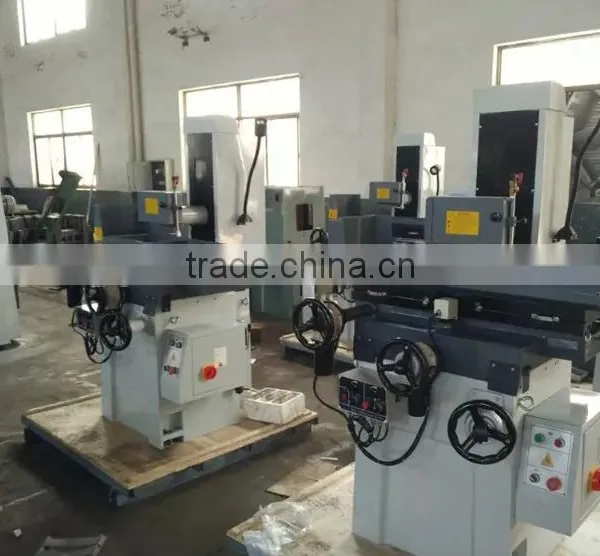

Production&Workshop for kent mini surface grinding machine
Customer&Expo for kent mini surface grinding machine
Packaging&Shipping for kent mini surface grinding machine
Companny information for kent mini surface grinding machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for kent mini surface grinding machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
