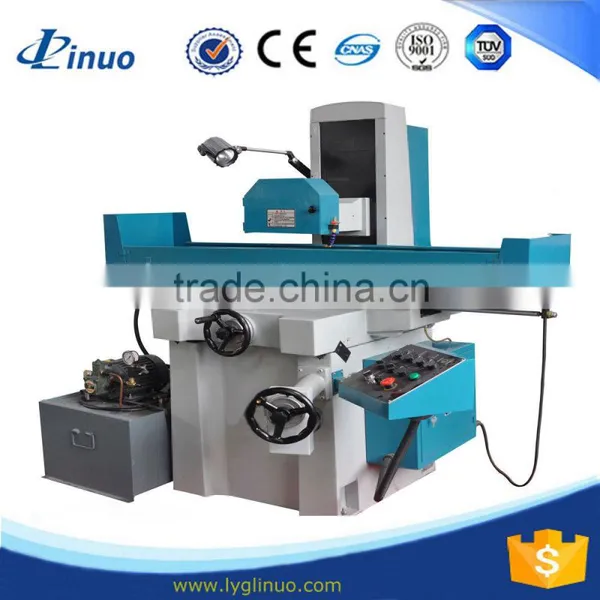

mini surface grinding machine price list
Product Description for mini surface grinding machine price list
Features:
1,Machine reasonable structure, good rigidity, good looks, easy to operate.
2.Table movement in longitudinal is hydraulic transmission.
3.Spindle motor no vibration and low noise.

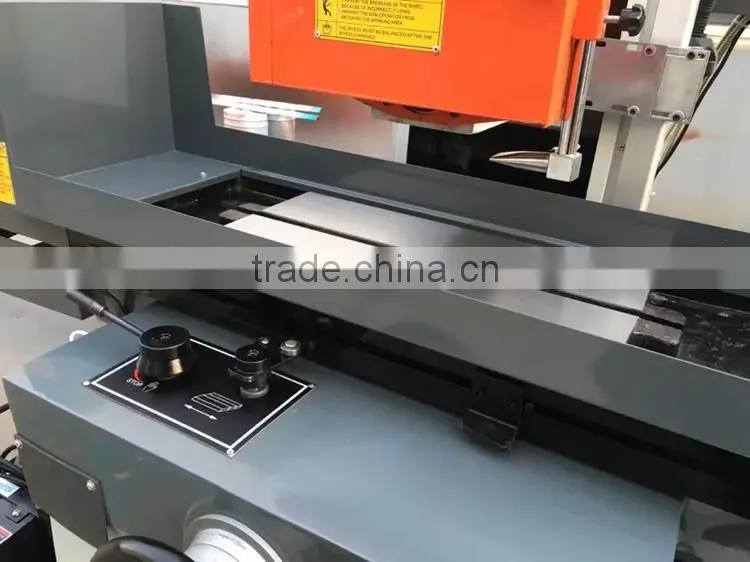

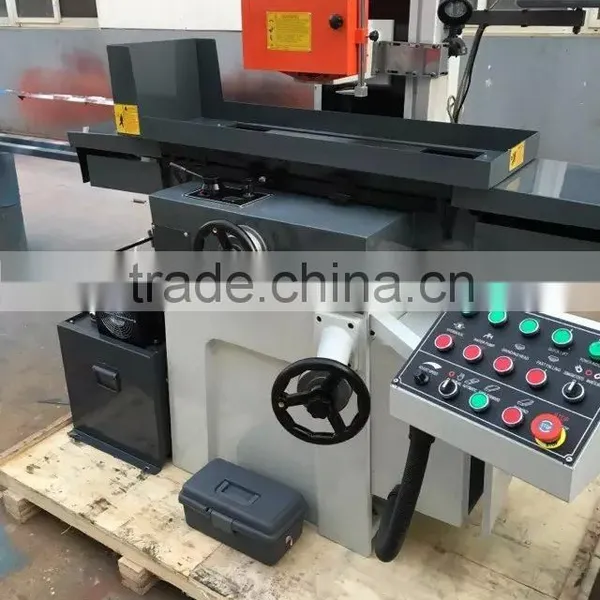

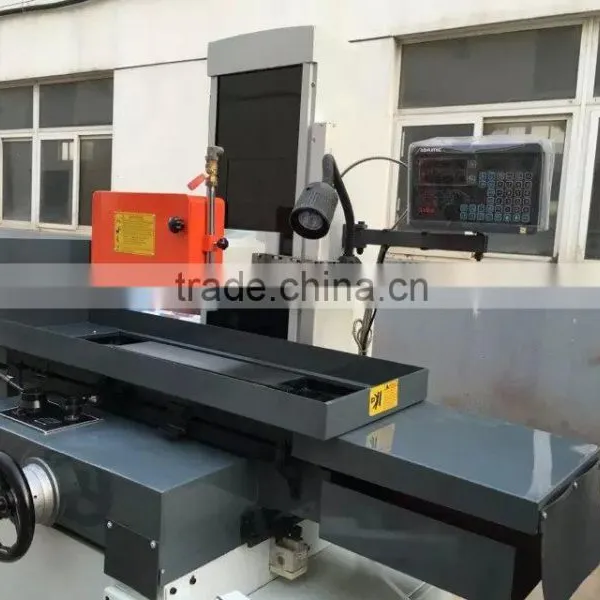

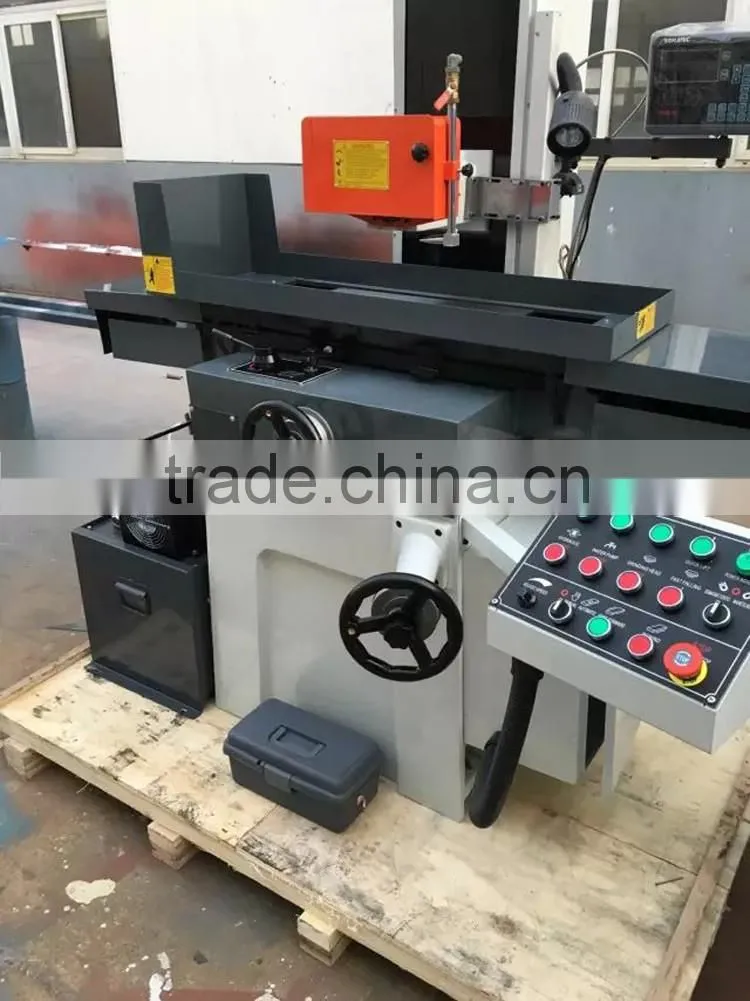

This is the detail information of the machine.
| Technical Parameters | Units | MY820 | MY1022 | MY1224 | MY1230 | |
| piece to be Ground | Mm | 520*220*450 | 540*250*450 | 600*300*530 | 750×300×530 | |
| ( L×W×H) | ||||||
| Max. Grinding Length | Mm | 520 | 540 | 630 | 780 | |
| Max. Grinding Width | Mm | 220 | 250 | 320 | 320 | |
| Distance From Table Surface To Spindle Center | Mm | 450 | 450 | 530 | 530 | |
| Slide way | V-type rail with Steel-ball | V-type rail with Steel-ball | V-type rail with Steel-ball | Double V-type rail | ||
| V-type rail with Steel-ball | Kg | 200 | 200 | 250 | 250 | |
| Table Size (L×W) | Mm | 480*200 | 540*250 | 600*300 | 750*300 | |
| Speed OF Working Table | m/min | 3-23 | 3-23 | 3-23 | 3-23 | |
| Number of T -Slot | Mm*n | 14*1 | 14*1 | 14×1 | 14×1 | |
| Cross Feed On Handwheel | Mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | |
| Vertical Feed On Handwheel | Mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | |
| Wheel Size (dia.×width×bore ) | Mm | 200*20*31.75 | 200*20*31.75 | 250*25.4*76.2 | 300x25.4x76.2 | |
| Spindle Speeds | 50Hz | rpm | 2850 | 2850 | 1450 | 1450 |
| 0-6000 | 0-6000 | 0-6000 | 0-6000 | |||
| Spindle Motor | kw | 1.1 | 1.5 | 2.2 | 2.2 | |
| Hydraulic station motor | kw | 1.5 | 1.5 | 2.2 | 2.2 | |
| Rapid Up and down Motor | W | 120 | 120 | |||
| Working Pressure | Mpa | 3 | 3 | 4 | 4 | |
| Max.Capacity | L/min | 18 | 18 | 20 | 20 | |
| Minimum Of Numerical | L | 80 | 80 | 100 | 100 | |
| Paraller Level | mm | 300:0.005 | 300:0.005 | 300:0.005 | 300:0.005 | |
| Surface Roughness | μm | Ra0.32 | Ra0.32 | Ra0.32 | Ra0.32 | |
| Machine Size (L×W×H) | mm | 1680*1140*1760 | 1250*1600*1800 | 1960*1480*1850 | 1960*1480*1850 | |
| Packing Size (L×W×H) | mm | 1700*1200*1940 | 1300*1620*1900 | 1960*1640*2020 | 1960*1640*2020 | |
| Gross,Net | T | O.85, 0.75 | 1.0,0.9 | 1.43 /1.3 | 1.5,1.4 | |

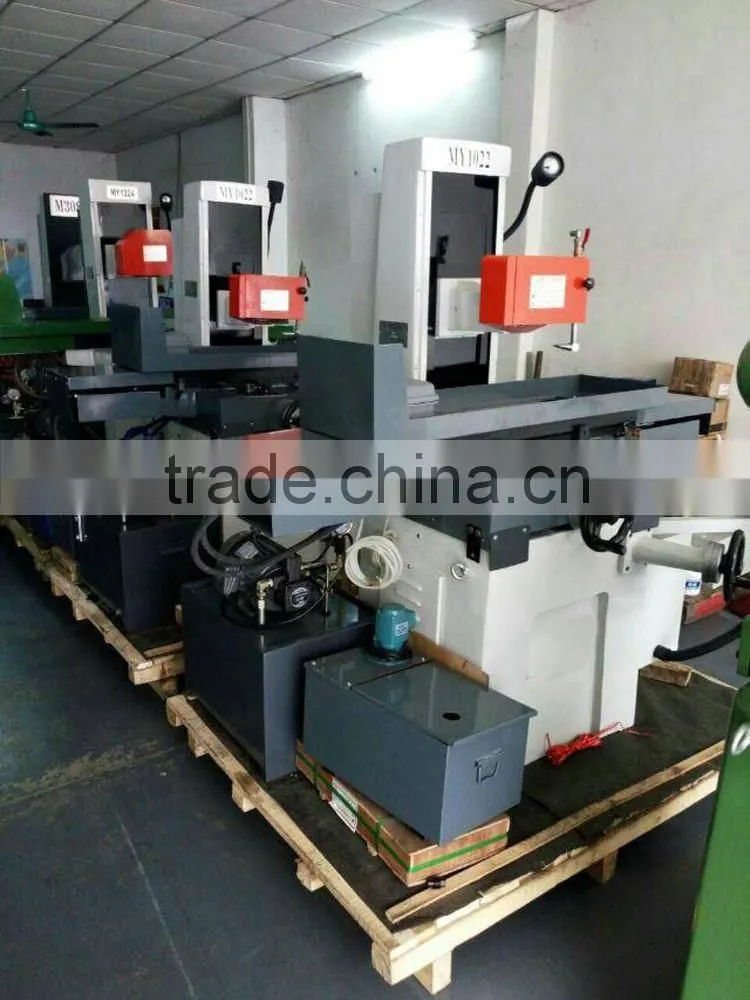

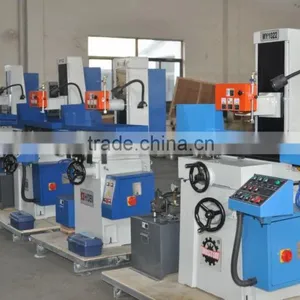

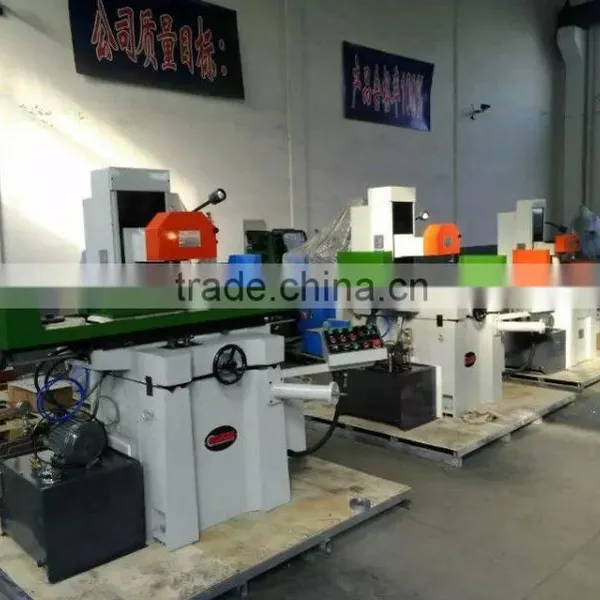

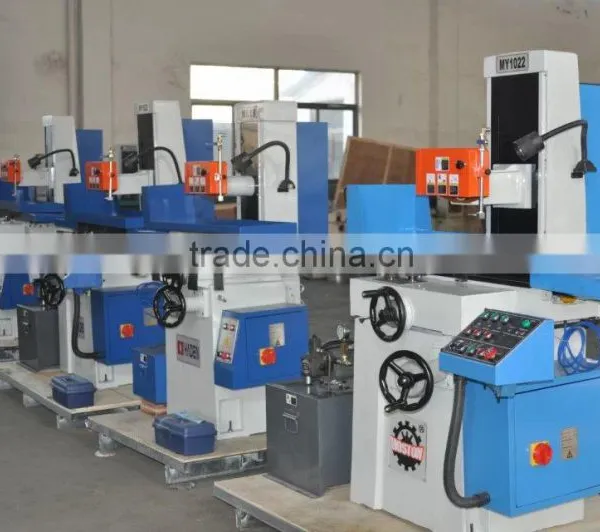

Production&Workshop for mini surface grinding machine price list
Packaging&Shipping for mini surface grinding machine price list
Customer&Expo for mini surface grinding machine price list
Companny information for mini surface grinding machine price list
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for mini surface grinding machine price list
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
