Home > Products > Grinding Machine > mini small surface grinding machine M618A
mini small surface grinding machine M618A
- 50 Set / Sets per Month
- Shanghai port for mini small surface grinding machine M618A
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 335mm | |
| Max. Grinding Length | 500mm | Place of Origin | Jiangsu, China | |
| Brand Name | linuo | Model Number | M618A | |
| Voltage | 3phase 380V 50Hz | Power(W) | 1.1kw | |
| Dimension(L*W*H) | 1550*1060*1590mm | Weight | 650kg | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
mini small surface grinding machine M618A
Product Description for mini small surface grinding machine M618A
Features:
1. Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2. Bring transmission by synchronous belt,operating simple and convenient.
3.Spindle motor no vibration and low noise.
This is the detail information of the machine.
Technical Parameters | Units | M618A | M820 | M1022 | |
piece to be Ground | Mm | 500×190×335 | 520×220×490 | 560×250×490 | |
Max. Grinding Length | Mm | 500 | 530 | 560 | |
Max. Grinding Width | Mm | 190 | 220 | 250 | |
Distance From Table Surface To Spindle Center | Mm | 335 | 450 | 490 | |
Slide way |
| V-type rail with Steel-ball | V-type rail with Steel-ball | V-type rail with Steel-ball | |
V-type rail with Steel-ball | Kg | 200 | 200 | 250 | |
Table Size (L×W) | Mm | 460×180 | 480×200 | 500×250 | |
Number of T -Slot | Mm*n | 14×1 | 14×1 | 14×1 | |
Cross Feed On Handwheel | Mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | |
Vertical Feed On Handwheel | Mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | |
Wheel Size (dia.×width×bore ) | Mm | 180×13×31.75 | 200×20×31.75 | 200×20×31.75 | |
Spindle Speeds | 50Hz | rpm | 2850 | 2850 | 2850 |
| 0-6000 | 0-6000 | 0-6000 | ||
Spindle Motor | kw | 1.1 | 1.5 | 1.5 | |
Coolant Pump | kw | 0.4 | 0.4 | 0.4 | |
Machine Size (L×W×H) | mm | 1000×1060×1590 | 1680×1140×1760 | 1200×1340×1800 | |
Packing Size (L×W×H) | mm | 1240*1080*1680 | 1260*1140*1760 | 1260*1250*1880 | |
Gross,Net | T | 0.75,0.65 | 0.85,0.75 | 1.1,1.0 | |

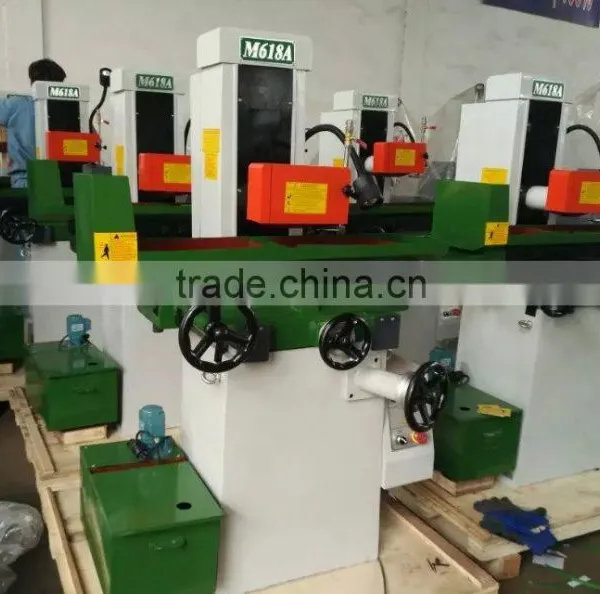

Production&Workshop for mini small surface grinding machine M618A
Packaging&Shipping for mini small surface grinding machine M618A
Customer&Expo for mini small surface grinding machine M618A
Companny information for mini small surface grinding machine M618A
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for mini small surface grinding machine M618A
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
