Help CenterWaterproof RFID Access Control Keypad (NT-109)
Related Products
-
Hot Sale Cabinet Digital Lock in Factory Price NI-11NegotiableMOQ: 10 Sets -
Small Digital Lock for File Cabinet (NI-11)NegotiableMOQ: 10 Sets
-
Nordson Electric Bolt Lock for Small Cabinet (NI-11)NegotiableMOQ: 10 Sets
-
NI-11 Small Cabinet Bolt LockNegotiableMOQ: 10 Sets
-
Nordson Fingerprint ReaderNegotiableMOQ: 1 Set
Specifications
Access Control Keypad1.Waterproof
2.Built in buzzer
3.LEDS display the working status
Product Description
Features

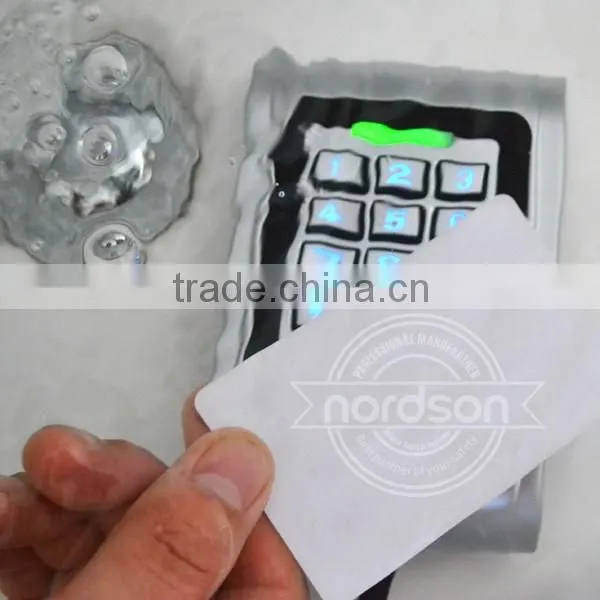

1.Waterproof, conforms to IP68
2.Strong Zinc Alloy Electroplated anti-vandal case
3.Full programming from the keypad
4.2,000 user password, supports Card, PIN, Card + PIN
5.Can be used as a stand alone keypad
6.Backlight keys
7.Wiegand 26 output for connection to a controller ·
8.Adjustable Door Output time, Alarm time, Door Open time
9.Very low power consumption (30mA)
10.Fast operating speed, <20ms with 2,000 users
11.Lock output current short circuit protection
12.Easy to install and program
13.Built in light dependent resistor (LDR) for anti tamper
14.Built in buzzer
15.Red, Yellow and Green LED display the working status
Specifications
Operating Voltage |
12V DC |
User Capacity |
2,000 |
Card Reading Distance |
3-6 cm |
Active Current |
<60mA |
Idle Current |
25±5 mA |
Lock Output Load |
Max 3A |
Alarm Output Load |
Max 20A |
Operating Temperature |
-45~60℃ |
Operating Humidity |
10%- 90% RH |
Environment |
Conforms to IP68 |
Adjustable Door Relay time |
0 -99 seconds |
Adjustable Alarm Time |
0- 3 minutes |
Wiegand Interface |
Wiegand 26 bit |

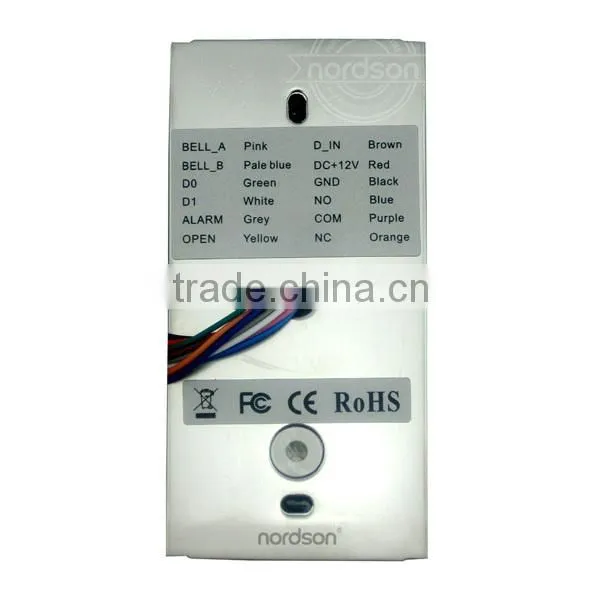

Wiring Connections |
Electric Lock, Exit Button, External Alarm |
Dimensions |
L120 * W56 * H18 mm |
