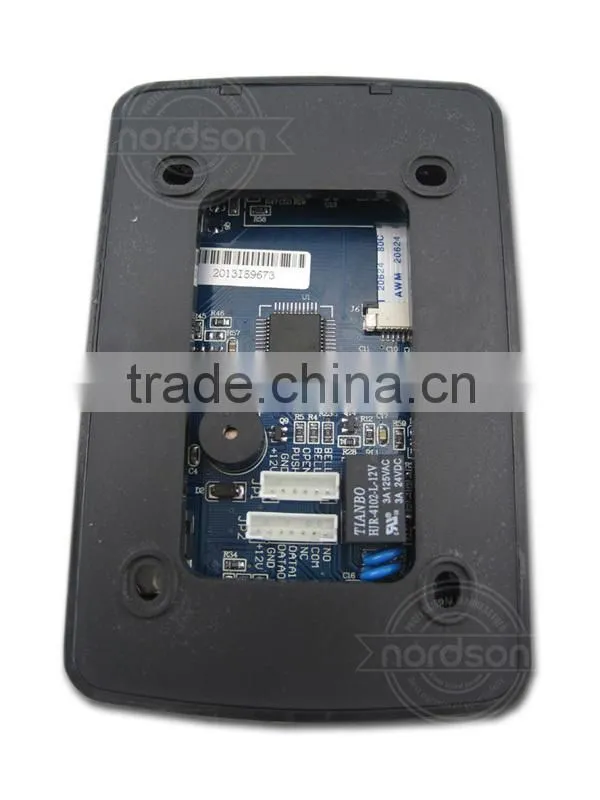

Help CenterRFID Access Control Keypad (NT-T09)
Related Products
-
Nordson RFID Touch-screen Single Door Access Control Keypad (NT-T09)NegotiableMOQ: 10 Sets -
Nordson RFID Touch-screen Access Control Keypad (NT-T09)NegotiableMOQ: 10 Sets
-
Touch-screen Access Control Keypad (NT-T09)NegotiableMOQ: 10 Sets
-
Nordson Waterproof Single Door Access Controller (NT-109)NegotiableMOQ: 10 Sets
-
Standalone Access Control KeypadNegotiableMOQ: 10 Sets
Specifications

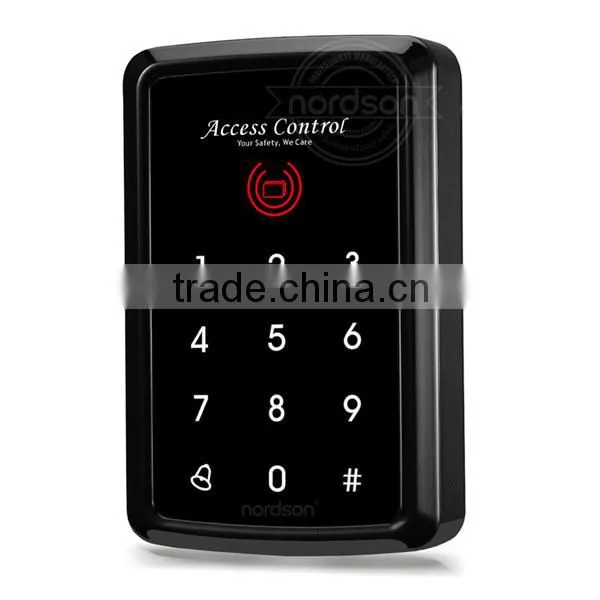

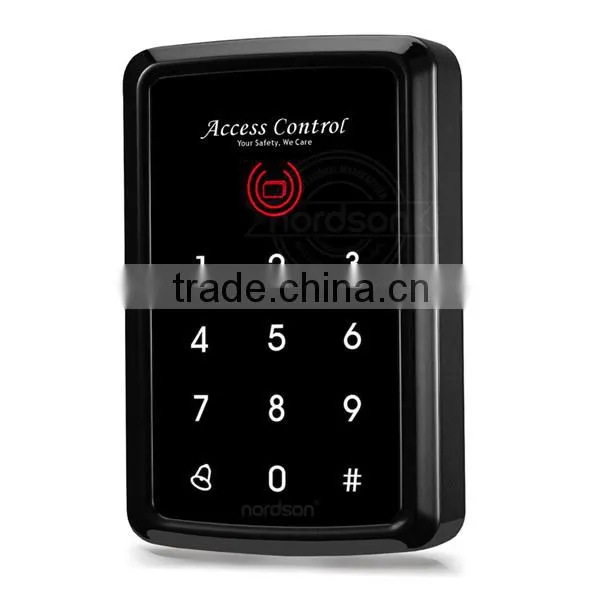

Standalone Access Control Keypad1.Touch screen design
2.Two-color LED: red and green
3.New product, special offer.
Product Description
1,Technical parameters:
NO |
Item |
Parameter |
1 |
Operating voltage |
DC 12V±10% |
2 |
Operating current |
< 100mA |
3 |
Dimensions |
120mm*78mm*22mm |
4 |
Weight |
130g |
5 |
Ambient temperature |
-10℃—70℃ |
6 |
Relative humidity |
20%—80% |
7 |
Storage |
1000 users |
8 |
Card type (alternative) |
EM(ID) card (IC card for option) |
9 |
Card reading distance |
1~15cm |
2,Factory default settings:
Programming Password |
123456 |
Open Mode |
Card or Access PIN |
Output signal time |
5secs |
Backlight |
Auto |
Security function |
Off |

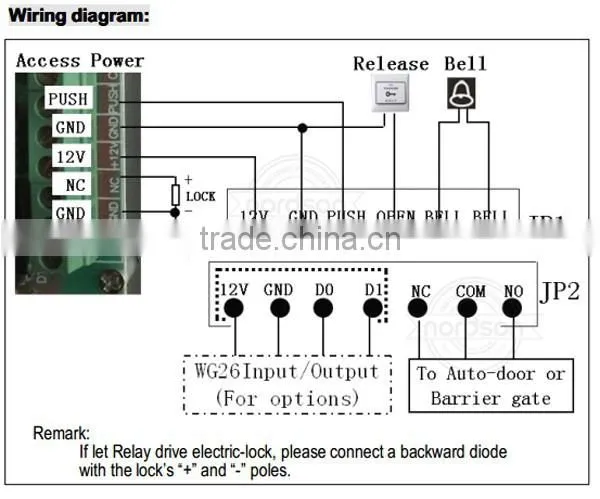

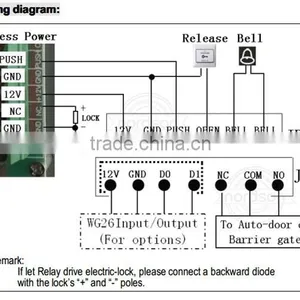

WG26Port |
Input |
3,LED and buzzer indicates:Two-color LED: red and green:
NO |
Led State |
Access control status |
1 |
light red once every 1 sec (Slow flash) |
Holding state |
2 |
light red, N.O. |
Programming state |
3 |
light green within open time |
Unlocking state |
4 |
light green once every 0.3sec (Fast flash) |
Pending further action |
Built-in buzzer:
Description |
Status |
1 short buzz |
Valid input |
3 short buzz |
Invalid input |
1 long buzz |
Program success |
Continuous long buzz |
Restoring factory programming passwords |
