New type Q2600/Q1600 PU foaming machine for sale made in China
- 100 Set / Sets per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Product Type: | Other, PU foaming machine | Place of Origin: | Zhejiang, China |
Brand Name: | Future | Model Number: | FQ-Q2600 | Voltage: | 220v/380v |
Power(W): | 11 Kw | Dimension(L*W*H): | 850*850*1700mm | Weight: | 175 kgs |
Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
New type Q2600/Q1600 PU foaming machine for sale made in China
Main Characteristics:
1. Small size, low failure rate, easy to operate, easy to move and so on.
2. Two pneumatic pressure devices,to ensure the material proportion of fixed, improve product yield.
3. Feed rate can be adjusted, and with timing, quantitative function for batch casting, improve production efficiency.
4. Advanced ventilation mode, the greatest degree of ensure the device works stability.
5. Filter means capable of multiple feed spray minimize clogging problems.
6. Efficient electrical protection system to protect the safety of the operator.
7. Equipped with an emergency switch system that the most efficient response to emergency situations occur.
8. Digital counting system can accurately understand the consumption of raw materials.
9. Device operation panel personalized settings, it is easy to operation.
10.The new type foaming gun,the advantages of light weight, low failure rate inferior.
11.The lifting pump with high efficiency,also adapt weather change.
Scope of application:

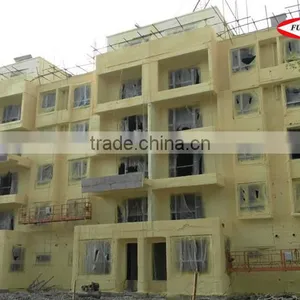

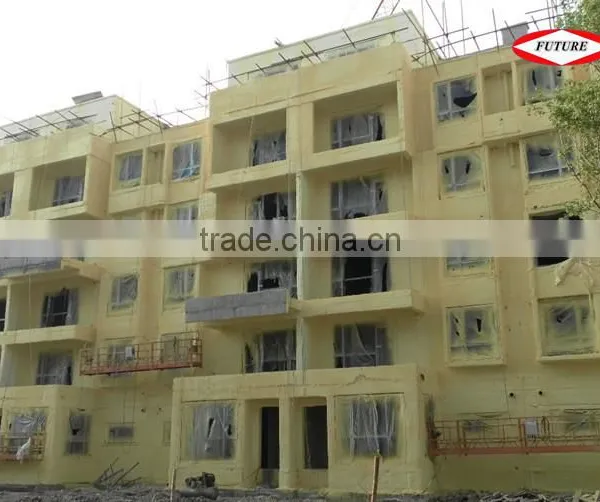

Suitable for solar water heaters, water tank insulation, cabin, insulation panels, security doors, refrigerators, pipes, die casting, highway construction, packaging, wall insulation, etc.
Device technical parameter | |
Type | FQ-2600 |
Heating power | 11 Kw |
Drive type | pneumatic |
Gas requirements | 0.5-0.8Mpa>=0.9m³/min |
Material output | 2-12 kg/min |
Max working pressure | 11 Mpa |
A:B(Polyurethane) | 1:1 |
Lifting pump | 2 sets |
Feeding hose | 2 lines |
Heating hose | 15 m(Max 90m) |
Connection gun hose | 2 m |
Net weight | 175 kgs |
Packaged size | 850*850*1700mm(L*W*H) |
Hangzhou Future Machinery & Technology Co., Ltd.
We are profession manufacturer pleat machine,filter machine,polyurethane machine,cross cutting machine and bag-making machine.We also custom the assembly production line and other machines for our customers. We welcome your company visit our factory view the machines quality.
