polyurethane air filter foam machine for sale
- 10 Set / Sets per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Product Type: | Foam Net | Place of Origin: | Zhejiang, China |
Brand Name: | Future | Model Number: | FQ - PU - 02 | Voltage: | 220v/380v |
Power(W): | 20 Kw | Dimension(L*W*H): | 2.3 * 1.6 * 2.3 m | Weight: | 1000 kg |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

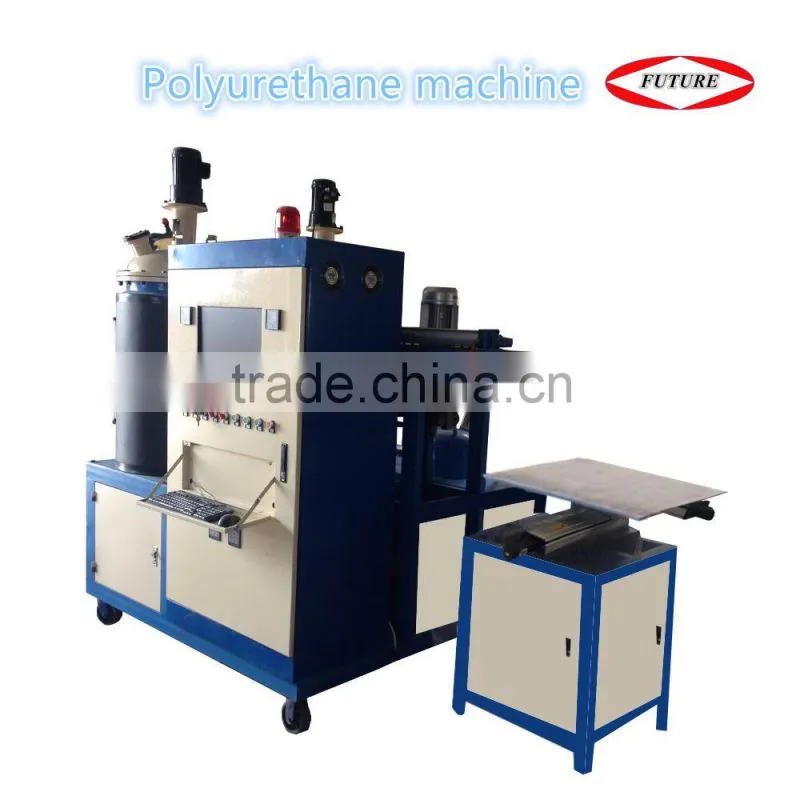

polyurethane air filter foam machine for sale
Main Characteristics:
1. Automatic PU machine adopts advanced motor control systems.
2. The PU machine measuring stability and self-cleaning.

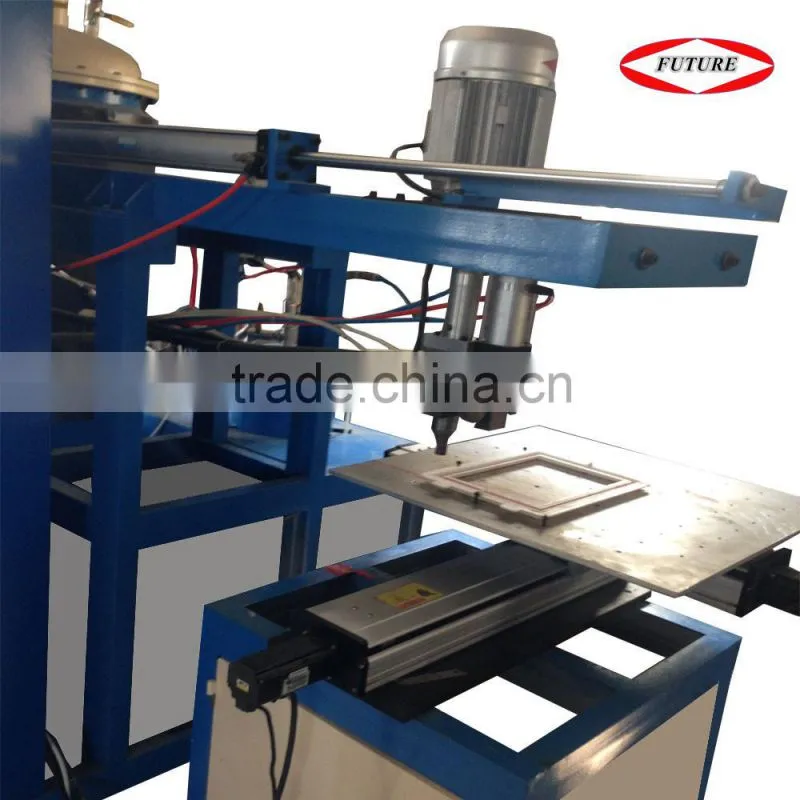

3. X-Y mechanical arm(servo drive),suitable for squire,circular and different shapes.
4. The automatic PU machine,speed mixture PU and pour controlled by computer.
5. Foaming principle: High-speed impeller type.
Scope of application:
Micropor elastomer with polyether type low density as air filter,widely used in automobile industruy.
Device technical parameter: | |
Type | FQ - PU - 02 |
The capacity of pour | 2 - 50 g/min |
Process size of square(rectangle) | 300 * 400 mm |
Process size of squire(Round) Dia | 300 mm |
The compressed air | > 0.6 Mpa |
Stirrer rotation speed | 2800 - 4200 - 6300 r.p.m |
Mixed way | Dynamic hybrid force |
Material filling volume | A:120 L ; B:120 L |
Hybrid range | B:A = (20-50):100 |
Speed of workbench | 0 - 10 m/min |
Total power | 20 Kw |
The total weight | 1000 kg |
Dimension of the host (L * W * H) | 1.3 * 1.6 * 2.3 m |
Dimension of the workbench (L * W* H) | 1* 0.8 * 0.9 m |
Hangzhou Future Machinery & Technology Co., Ltd.
We are profession manufacturer pleat machine,filter machine,polyurethane machine,cross cutting machine and bag-making machine.We also custom the assembly production line and other machines for our customers. We welcome your company visit our factory view the machines quality.
