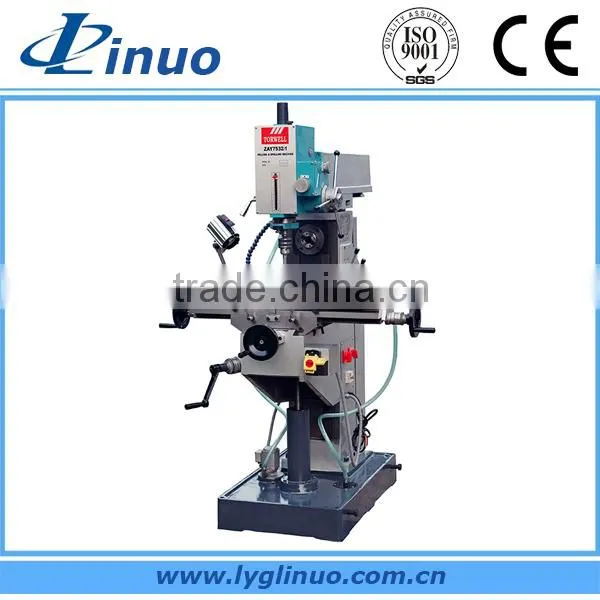

ZAY7532 Vertical Milling Machine

Name: ZAY7532 Vertical Milling Machine
Brand: LINUO
SKU: 114834517

US$ 2,000 - 4,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

LINUO

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name LINUO

Model Number ZAY7532

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 1.5kw

Dimension(L*W*H) 1020x1350x1850mm

Weight 1010kg

Certification CE/ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.ZAY7532 vertical milling machine
2.Drillling capacity:32mm
3. Face/End milling capacity: 25/100mm
4. CE

ZAY7532 vertical milling machine

Features:

SPECIFICATION
ITEM	ZAY7532	ZAY7540	ZAY7545	ZAY7550

Max.drilling capacity	32mm	40mm	45mm	50mm
Max.milling capacity (end / face)	25/100mm	32/100mm	32/100mm	32/100mm
Swivel angle of headstock(perpendicular)	±90°	±90°	±90°	±90°
spindle taper(end/face)	M.T.3 M.T.4	M.T.4	M.T.4	M.T.4
Distance from spindle nose to worktable surface	80-480mm	80-480mm	80-480mm	80-480mm
spindle travel	130mm	130mm	130mm	130mm
Beam travel	500mm	500mm	500mm	500mm
step of spindle speed(end/face)	612	612	612	612
range of spindle speed(end/face) 50Hz	80-1250 /38-1280 (r/min)	80-1250 /38-1280 (r/min)	80-1250 /38-1280 (r/min)	80-1250 /38-1280 (r/min)
60Hz (4 Poles)	95-1500 /45-1540 (r/min)	95-1500 /45-1540 (r/min)	95-1500 /45-1540 (r/min)	95-1500 /45-1540 (r/min)
Worktable size	800×240mm	800×240mm	800×240mm	1000×240mm
Forward and afterward travel of worktable	300mm	300mm	300mm	300mm
Left and right travel of worktable	585mm	585mm	585mm	785mm
Vertical travel of worktable	400mm	400mm	400mm	400mm
Min.distance from spindle axis to column	290mm	290mm	290mm	290mm
Power(end/face)	0.75KW(1HP)/1.5KW	1.1KW(1.5HP)/1.5KW	1.5KW(2HP)/1.5KW	1.5KW(2HP)/1.5KW
Voltage/Frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Cooling pump power	0.04KW	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	910kg/1010kg	913kg/1013kg	915kg/1015kg	930kg/1030kg
Packing size	1020×1350×1850mm	1020×1350×1850mm	1020×1350×1850mm	1220×1350×1850mm
Loading amount	8pcs/20'container	8pcs/20'container	8pcs/20'container	4pcs/20'container
