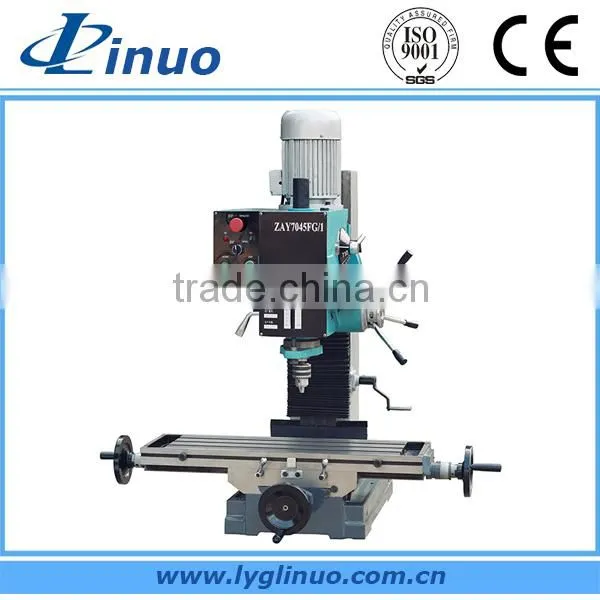

ZAY7045FG/1 Mini Drilling and Milling Machine Price

Name: ZAY7045FG/1 Mini Drilling and Milling Machine Price
Brand: Linuo
SKU: 114834511

US$ 1,200 - 1,500 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

240mm/min

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 240mm/min

Place of Origin Jiangsu, China

Brand Name Linuo

Model Number ZAY7045FG/1

Voltage 380V

Power(W) 1.5KW

Dimension(L*W*H) 0.77*0.88*1.16m

Weight 325KG

Certification CE,ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.ZAY7045FG/1 mini drilling and milling machine price
2.Max drilling 45mm
3.Max face milling 80mm
4.Max end milling 32mm

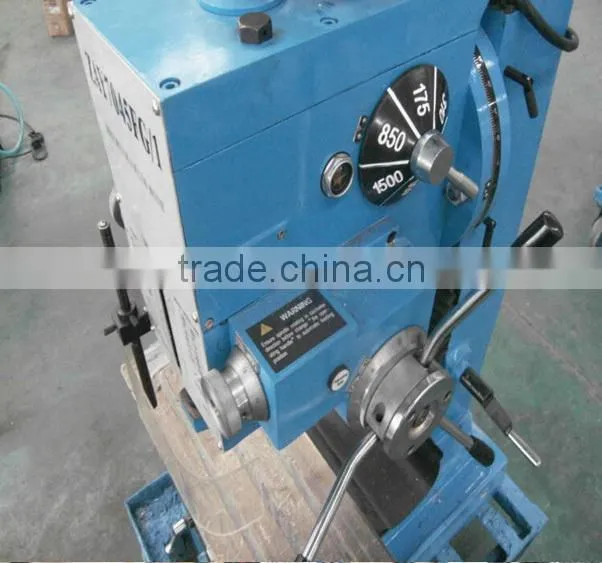

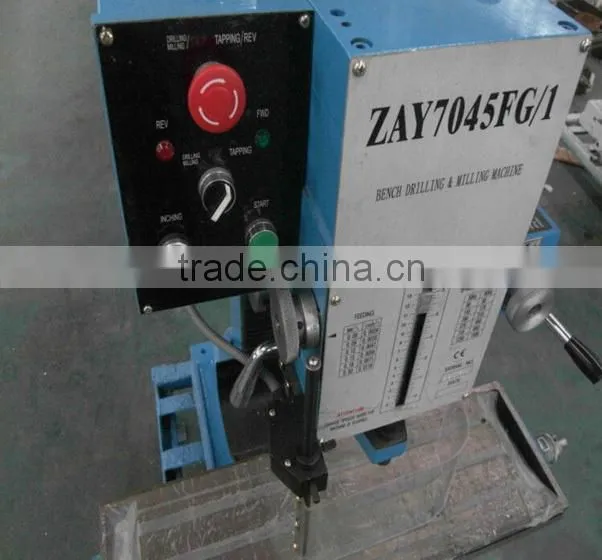

ZAY7045FG/1 mini drilling and milling machine price

Features:

Drilling capacity:45mm

CE sppreoved

Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed

Milling,drilling,tapping,boring,reaming

Micro feed precision

Adjustable gibs on table precision

Strong rigity,powerful ctting and precise positioning

Technical Data

SPECIFICATION
ITEM	ZAY7032FG/1	ZAY7040FG/1	ZAY7045FG/1

Drilling capacity	32mm	40mm	45mm
Max.boring diameter	50mm	60mm	70mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Max distance from spindle nose to table	450mm	450mm	450mm
Min distance from spindle axis to column	260mm	260mm	260mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Auto-feeding step of spindle	6	6	6
Auto-feeding amount of spindle	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°	±90°	±90°
Automaticlly lifting of spindle ( As customer's requirement)	240mm/min	240mm/min	240mm/min
Power feed attachment for table( As customer's requirement)	stepless	stepless	stepless
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/Frequency	As customer's requirement	As customer's requirement	As customer's requirement
Net/Gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	770×880×1160mm	770×880×1160mm	770×880×1160mm
Loading amount	36pcs/20'container	36pcs/20'container	36pcs/20'container
