ZAY7045 Portal Milling Machine

Name: ZAY7045 Portal Milling Machine
Brand: LINUO
SKU: 114834501

US$ 800 - 1,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

LINUO

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name LINUO

Model Number ZAY7045

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 1.5KW

Dimension(L*W*H) 1020 x 820 x 1160mm

Weight 333KG

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.ZAY7045 portal milling machine
2.Max drilling 45mm
3.Max face milling 80mm
4.Max end milling 32mm

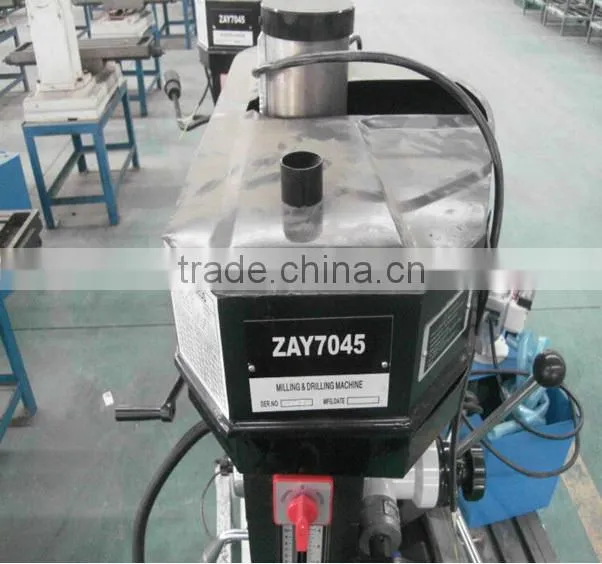

ZAY7045 portal milling machine

Features:

Product Description
Belt-driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning.

SPECIFICATIONS

MODEL	ZAY7045
Drilling capacity	45mm
Face milling capacity	80mm
End milling capacity	32mm
Distance from spindle nose to table	450mm
Min.distance from spindle axis to column	203.5mm
Spindle travel	130mm
Spindle taper	M.T.4 or R8
Step of spindle speed	12
Range of spindle speed 50Hz	80-2080r.p.m
60Hz	100-2500r.p.m
Swivel angle of headstock ( horizontally )	360°
Table size	800 x 240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor Power	1.5KW
Net weight/Gross weight	283/333(kgs)
Packing size (L x W x H)	1020 x 820 x 1160mm
Loading amount/20'' container	28pcs
