Electric Dead Bolt Lock 12 DV with 5 Pin for Access Control System Used for Wood Metal Door
NI-610-L-A sturdiness electric bolt lock is a High security lock suitable for framed glass doors, wooden doors, metal doors, fire doors. Unique solenoid valve control, more stable, low failure rate. Lock body are made of High-strength aluminum alloy, all solid lock withstand 3000 pounds linear positive impact. Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving. Attached accessories for frameless glass door and narrow panel door.
1. Full solid stainless steel lock and lock body, durable

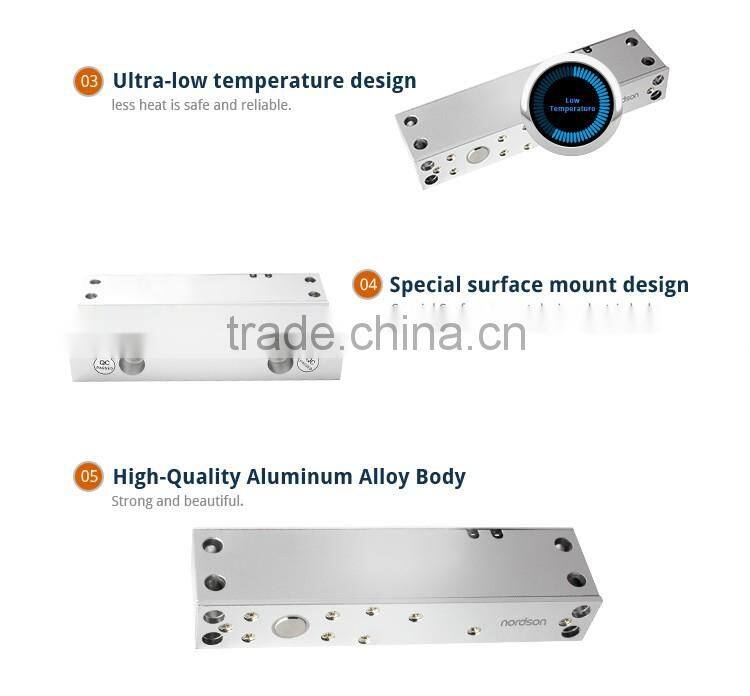

2. Ultra-low temperature design, less heat, safer andmore durable
A.Momentary current conversion
B. electric bolt will start scouting low power consumption and low temperature conversion while Door position is not corrector with stands bolt
C. Photoelectric technology, reduce mechanical failure
3. Ultra-low temperature design, less heat is safe andreliable
4. 500,000 times successful test
5. Built-in reverse current preventing equipment.
6. Intelligent single-chip configuration, level three current applications
7. High-strength aluminum alloy lock body, stainlesssteel lock head
8. Product specification is complete for all types ofdoor installation
9. time delay setting: 0/3/6/9 sec.
10. Protective performance with intelligent single-chipconfiguration
11. Prevents external damage,MOV Provides Reverse Current Protection
12. overload dual current
13. Built-in optical coupling open output push button contact
14. Auto-relock if no Action within 5 secs.
15. CE, ROHS & MA certificates
| Version | Fail unlocked(the bolt is unlocked when the current is off) |
| Diameter dead bolt | ø16mm,13mm (Full solid stainless steel) |
| Shear strength | 3000lbs/1500KG |
| Relock Delay Timer | 0,3,6 seconds open time delay is adjustable |
| Door Status Sensors | Dry contact NO,NC,COM |
| Rated Operating Voltage | DC 12V or 24V (Customization Available) |
| Start Current | 800mA |
| Standby Current | 150mA |
| Optional Functions | LED,Buzzer,Lock Sensor |
| Face place material | High Aluminum |
| Surface Temp | Low Temperature |
| Ambient temperature in °C | -10°C - +55°C |
| Suitable for |
Specially Suitable for Narrow Door Wooden & Aluminum & Glass & Fireproof &Metal door |
| Face Plate Dimensions(L x W x D) | 205L*27.5W*42.5H(mm) |
| Strike Plate Dimensions(L x W x D) | 90L*25W*2W(mm) |
| Weight in kg | 0.92kg |
| CE-mark for building | YES |
| Rohs-mark for building | YES |
