Nordson Electronic Bolt Lock, NI-500

Nordson Electronic Bolt Lock, NI-500 thumbnail-1
Nordson Electronic Bolt Lock, NI-500 thumbnail-2
Nordson Electronic Bolt Lock, NI-500 thumbnail-3
Nordson Electronic Bolt Lock, NI-500 thumbnail-4
Nordson Electronic Bolt Lock, NI-500 thumbnail-5
Nordson Electronic Bolt Lock, NI-500 thumbnail-6
Nordson Electronic Bolt Lock, NI-500 photo-1
Nordson Electronic Bolt Lock, NI-500 photo-2
Nordson Electronic Bolt Lock, NI-500 photo-3
Nordson Electronic Bolt Lock, NI-500 photo-4
Nordson Electronic Bolt Lock, NI-500 photo-5
Nordson Electronic Bolt Lock, NI-500 photo-6
US$ 12 - 28 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Nordson
Model Number:
NI-500
Contact Supplier Request Quote Chat Now
Nordson (Shenzhen) Electronic Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
HK or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Nordson
Model Number NI-500

NI-500A / NI-500B Electric Deadbolt Lock, Power to Open & Power to Lock



Product Description
  • NI-500A  ( Fail-secure Type: Power to Open )
  • NI-500B  ( Fail-safe Type: Power to Lock )
  • Voltage: DC12V
  • Start Current: 900mA
  • Standby Current: 150mA
  • Face Plate: 205L*30W*38H(mm)
  • Strike plate : 100L*25W*3W(mm)
  • Bolt :17mmDIA, stainless steel 16mm throw

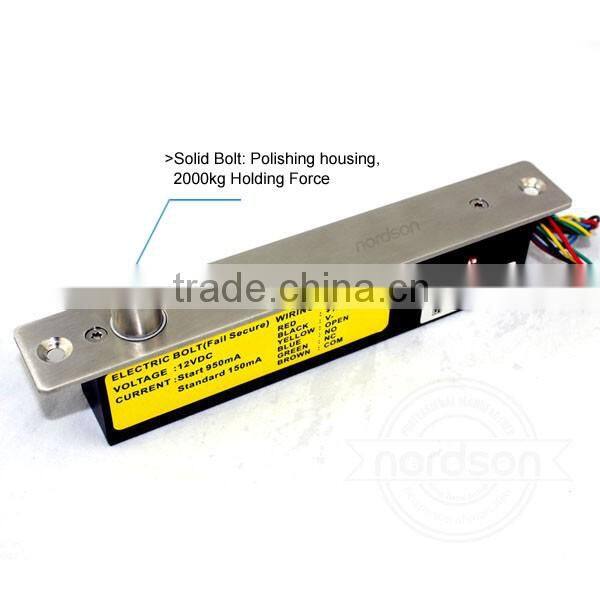

  • Solid Bolt: polishing housing, 2000Kg Holding Force
  • Suitable For: Woodeng Door, Glass Door, Metal Door, Glass Door

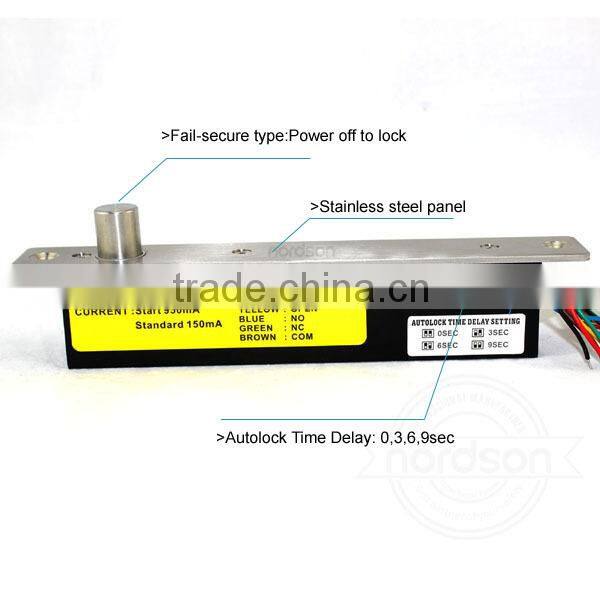

  • Autolock Time Delay: 0,3,6,9sec.
  • Signal Output: Lock status Output, NO/NC/COM
  • Surface Temp: Low Temperature
  • Suitable for 180° door
  • Operating temp: -10~+55℃(14-131F)
  • Operating Humidity: 0~90%(non-condensing)
  • Special Designed: Tested to 500000 cycles
  • Face place material: High Aluminum, Carrulous Line Finished
  • Weight: 1kg
  • Standard Packaging: 30pcs



Features

  • Low Temperature, safe & Durable.
  • Low Power, Environmental Protection.
  • Special photoelectricity control, three steps current application.
  • Long Life with 500,000 Operations.
  • MOV Provides Reverse Current Protection.
  • Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt.
  • Double protection for loading current.
  • Auto-relock if no Action within 5 secs..
  • Certificate: CE&MA
  • Photoelectricity Control, Low Temperature:
  1. The Low Current is Changed immediately;
  2. When door frame doesn`t coincide with doorleaf, door leaf against the bolt, then the electricbolt will start the low-power function to bring low temperature;
  3. The Photoelectricity Control Technology, prevent the machanical defect.

Nordson Electronic Bolt Lock, NI-500

Nordson Electronic Bolt Lock, NI-500Nordson Electronic Bolt Lock, NI-500Nordson Electronic Bolt Lock, NI-500

Nordson Electronic Bolt Lock, NI-500

Packaging & Shipping
  • We ship to worldside by DHL, FedEx, UPS, EMS, Aramex etc..
  • 1-5 working days for small quantity, 12-15 working days for large quantity after receipt of remittance.
Warranty
  • For product quality issues brought by external irresistible factors, NORDSON provides 3 years warranty for electromagnetic lock; 3 years warranty for access control panel, electric bolt and electric strike; 1 year warranty for biometric machines, exit button, bracket, and power supply.
  • For product damage brought by other reasons, customer shall take the consequences by himself.
Nordson Profile
  • Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China.
  • Nordson’s products sell and be agent in more than 100 countries and regions,such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India, Russia etc.. Besides, Nordson provides OEM and ODM services also. Nordson’s products are widely used in business institutions, government agencies,residential communities,universities,etc.
